Door Lock Knob Switch Test: Front

Preconditions

• Front Door Panel Removed

Procedure/Specifications

• Check the switch according to the table. (Figure 1, 2, 3, and 4)

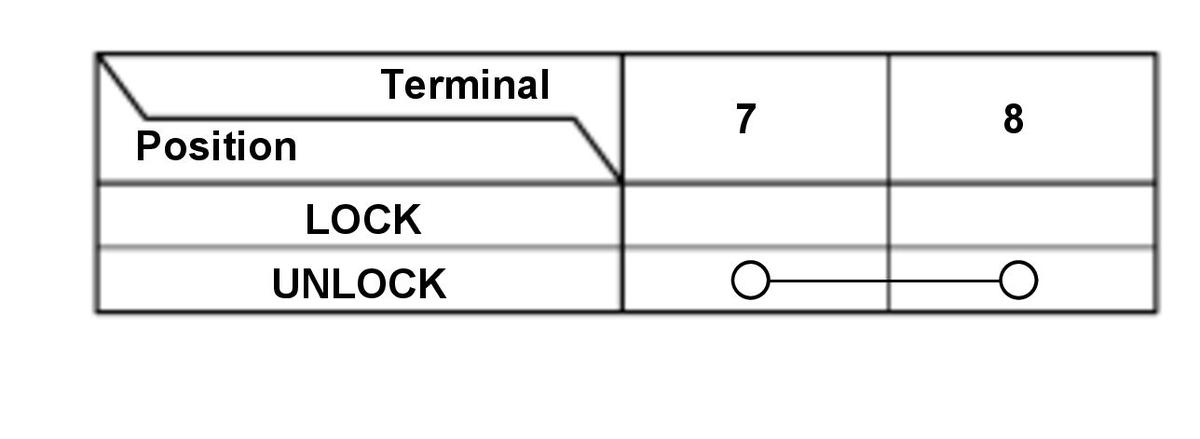

  Driver's (Figure 1)

  Courtesy of HONDA, U.S.A., INC.

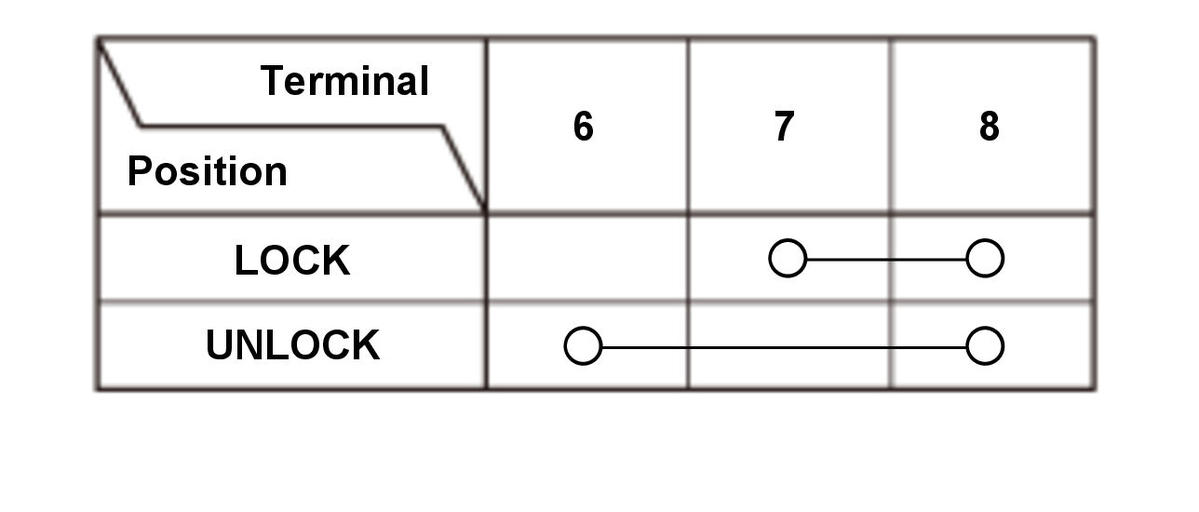

  Driver's (Figure 2)

  Courtesy of HONDA, U.S.A., INC.

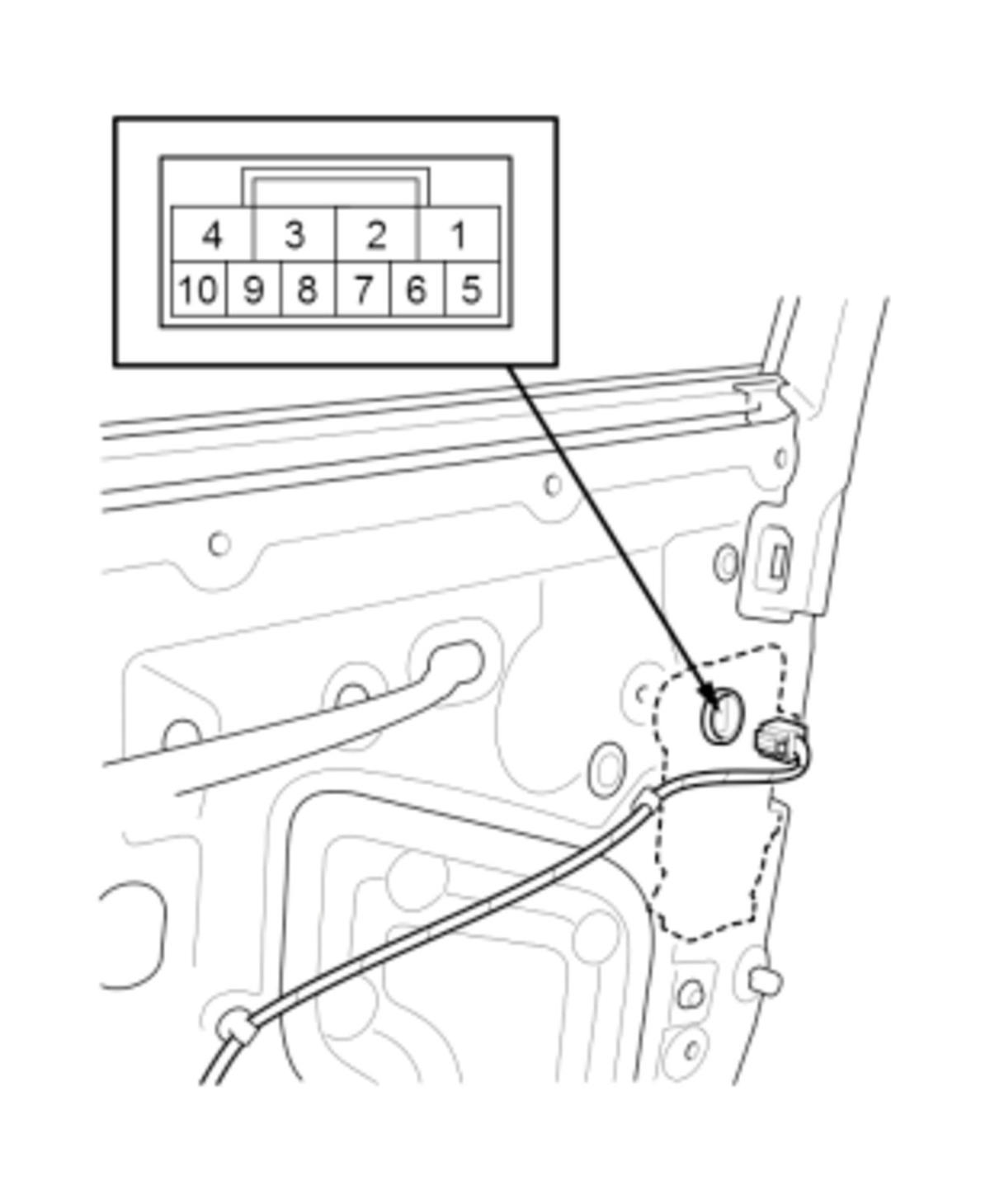

  Front passenger's (Figure 3)

  Courtesy of HONDA, U.S.A., INC.

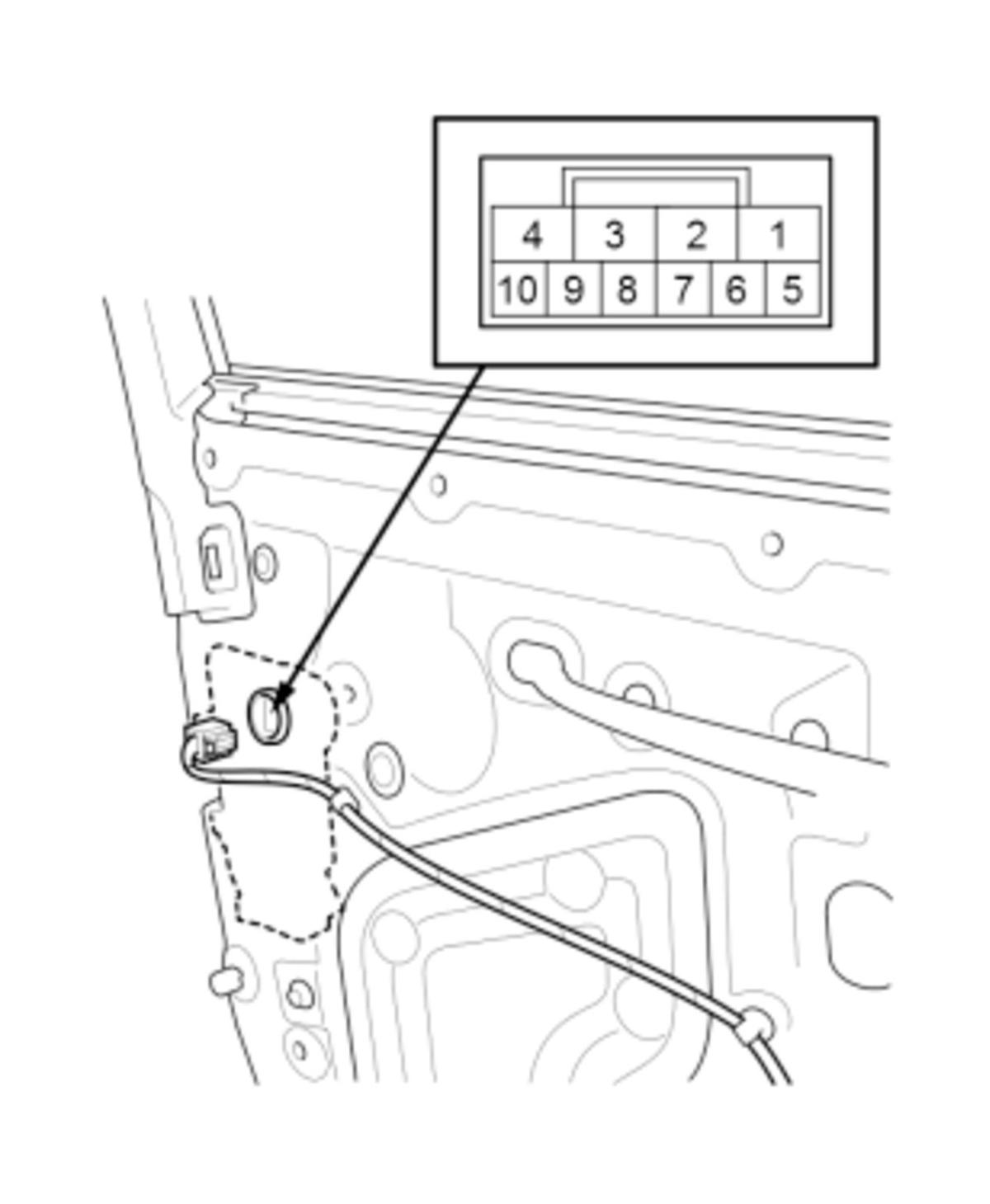

  Front passenger's (Figure 4)

  Courtesy of HONDA, U.S.A., INC.

Result

• If the result is not as specified, replace the front door latch .
