Exploded View
For replacement of components listed below, see Repair Procedure .
| Right Rear Seat |
| Left Rear Seat |
| *1: With rear seat heater |
Rear Seat Area Components
| Component Name | Callout |
|---|---|

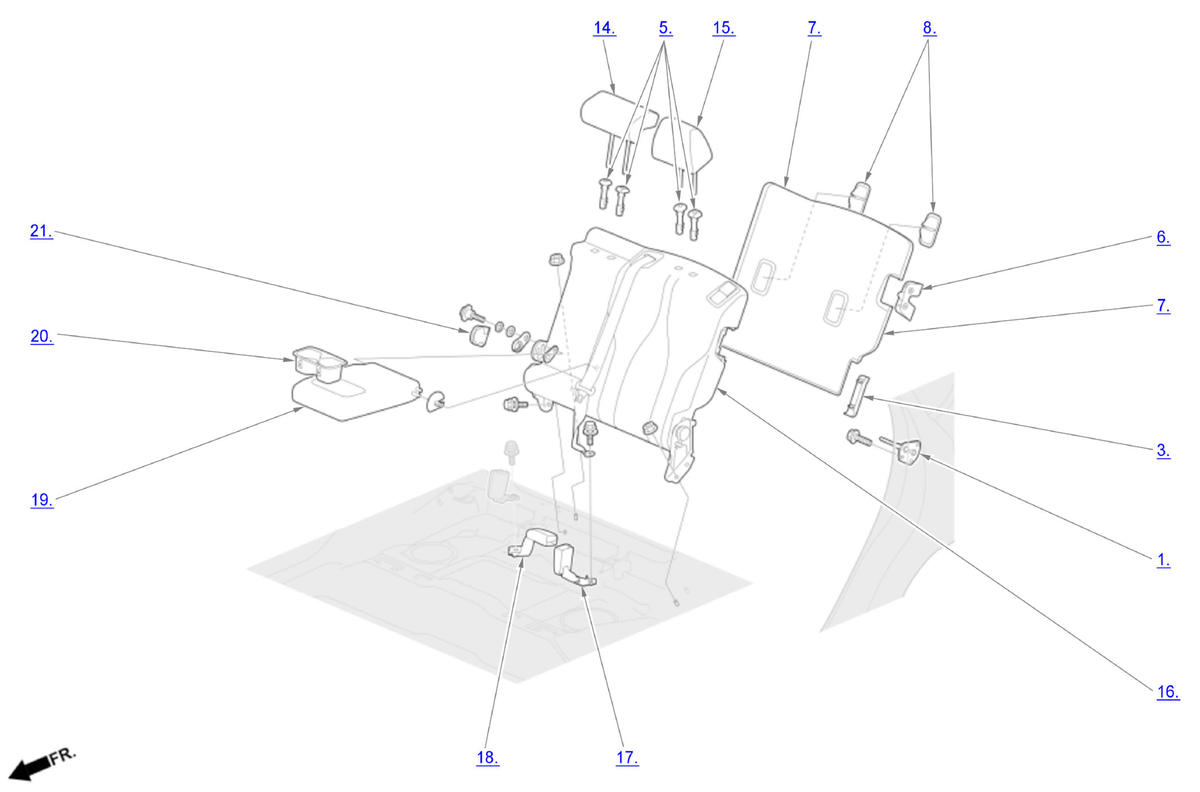

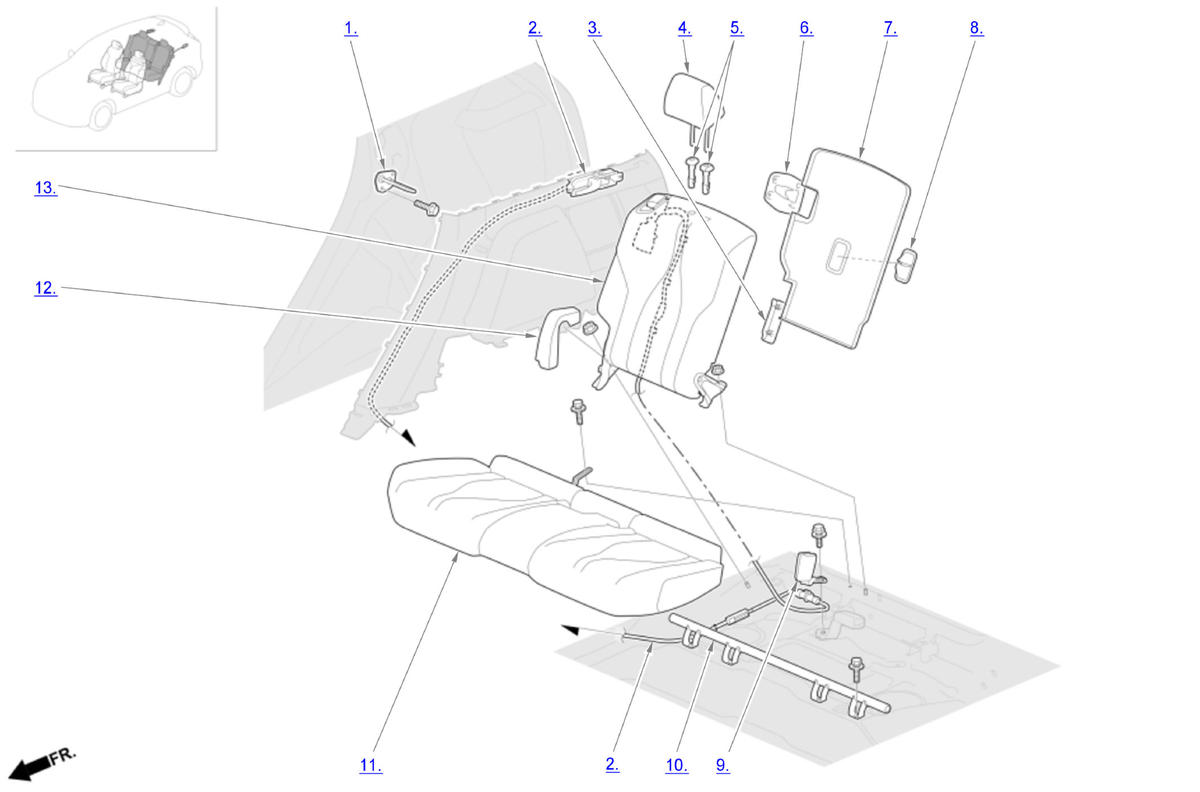

| Rear Seat-Back Striker | 1 |
| Rear Seat Remote Fold Down Lever/Cable | 2 |
| Backboard Outer Cover | 3 |
| Right Rear Seat Head Restraint | 4 |
| Head Restraint Guide | 5 |
| Striker Hole Cover | 6 |
| Rear Seat-Back Rear Cover | 7 |
| Tether Anchor Cover | 8 |
| Right Rear Seat Belt Buckle | 9 |
| Rear Floor Brace | 10 |
| Rear Seat Cushion | 11 |
| Side Pivot Bracket Cover | 12 |
| Right Rear Seat-Back | 13 |
| Center Rear Seat Head Restraint | 14 |
| Left Rear Seat Head Restraint | 15 |
| Left Rear Seat-Back | 16 |
| Left Rear Seat Belt Buckle | 17 |
| Center Rear Seat Belt Buckle | 18 |
| Rear Seat Armrest | 19 |
| Rear Seat Armrest Beverage Holder | 20 |
| Rear Seat Armrest Pivot Cover | 21 |
| Latch Knob Trim | 22 |

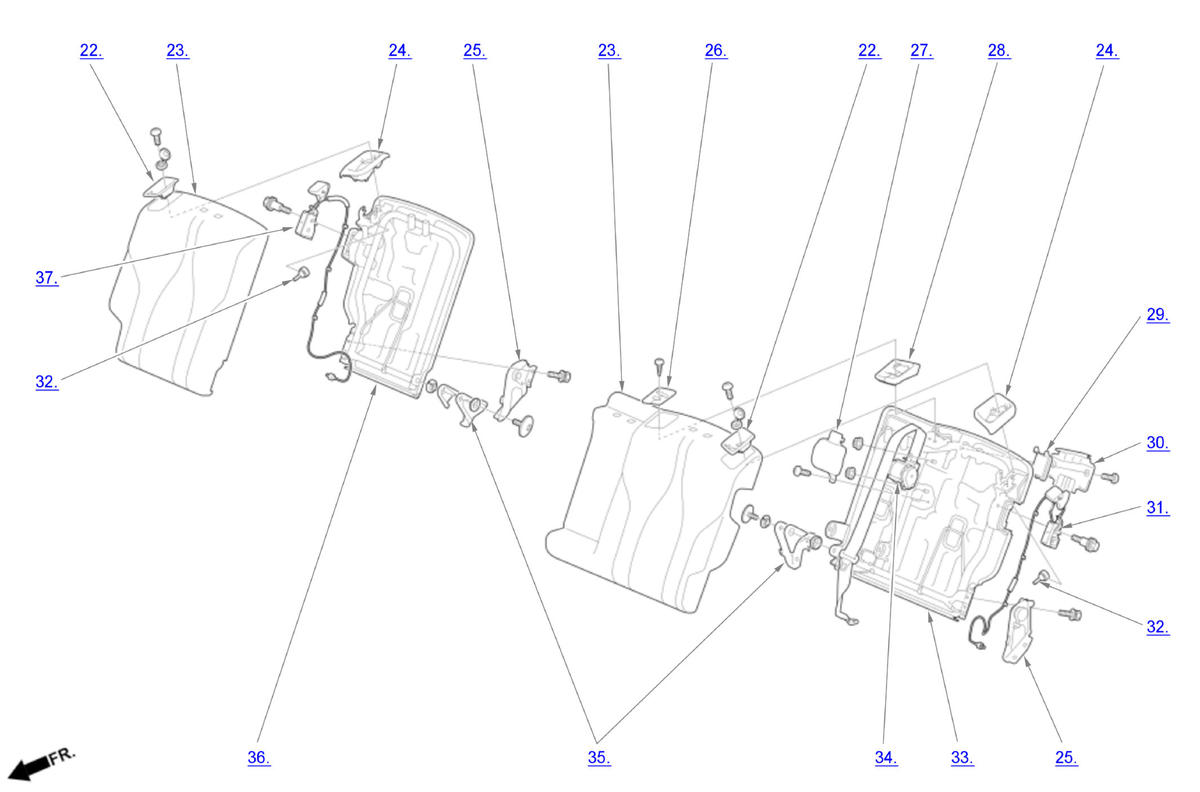

| Rear Seat-Back Front Cover/Pad | 23 |
| Knob Inner Cover | 24 |
| Side Pivot Bracket | 25 |
| Center Seat Belt Trim | 26 |
| Center Seat Belt Cover | 27 |
| Center Seat Belt Guide | 28 |
| Center Seat Belt Inner Guide | 29 |
| Seat-Back Frame Bracket | 30 |
| Left Rear Seat-Back Latch | 31 |
| Damper | 32 |
| Left Rear Seat-Back Frame | 33 |
| Center Seat Belt | 34 |
| Pivot Bracket | 35 |
| Right Rear Seat-Back Frame | 36 |
| Right Rear Seat-Back Latch/Cable | 37 |
| Rear Seat-Back Front Cover | 38 |

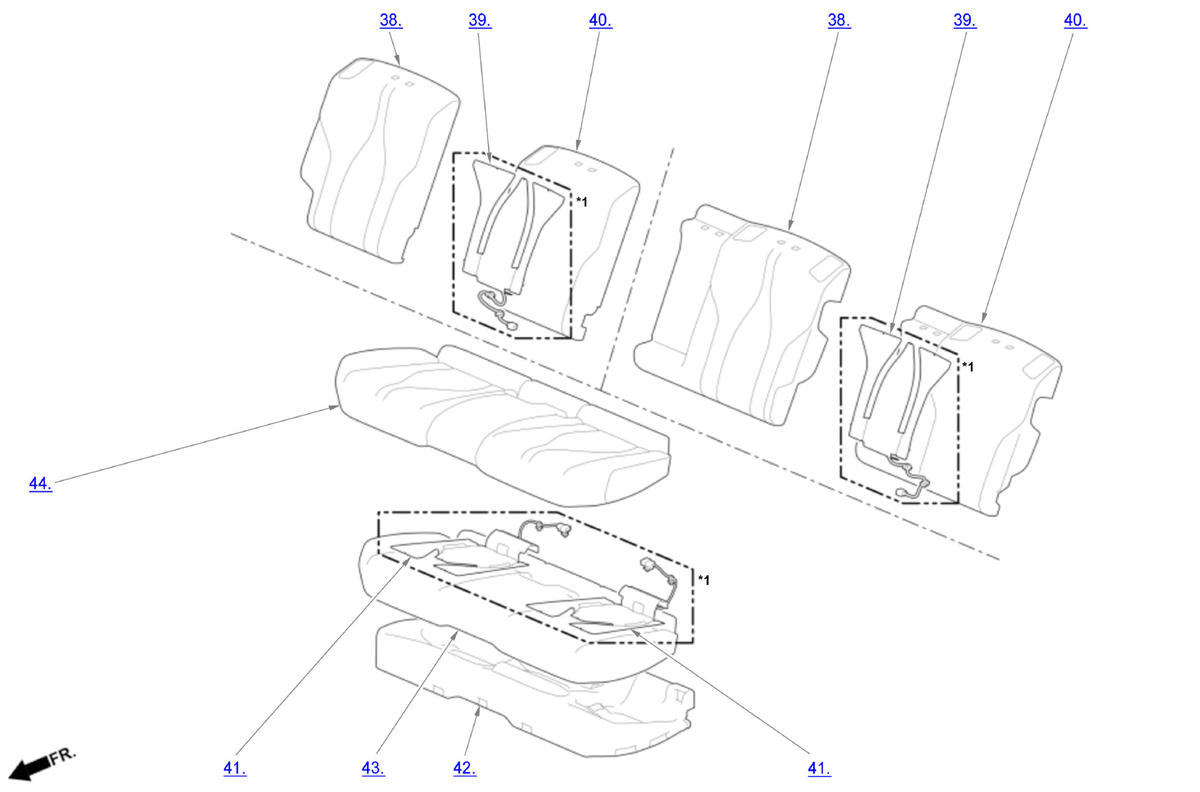

| Rear Seat-Back Heater | 39 |
| Rear Seat-Back Pad | 40 |
| Rear Seat Cushion Heater | 41 |
| Rear Seat Cushion Frame | 42 |
| Right Rear Seat Cushion Pad | 43 |
| Rear Seat Cushion Cover | 44 |
