Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. |

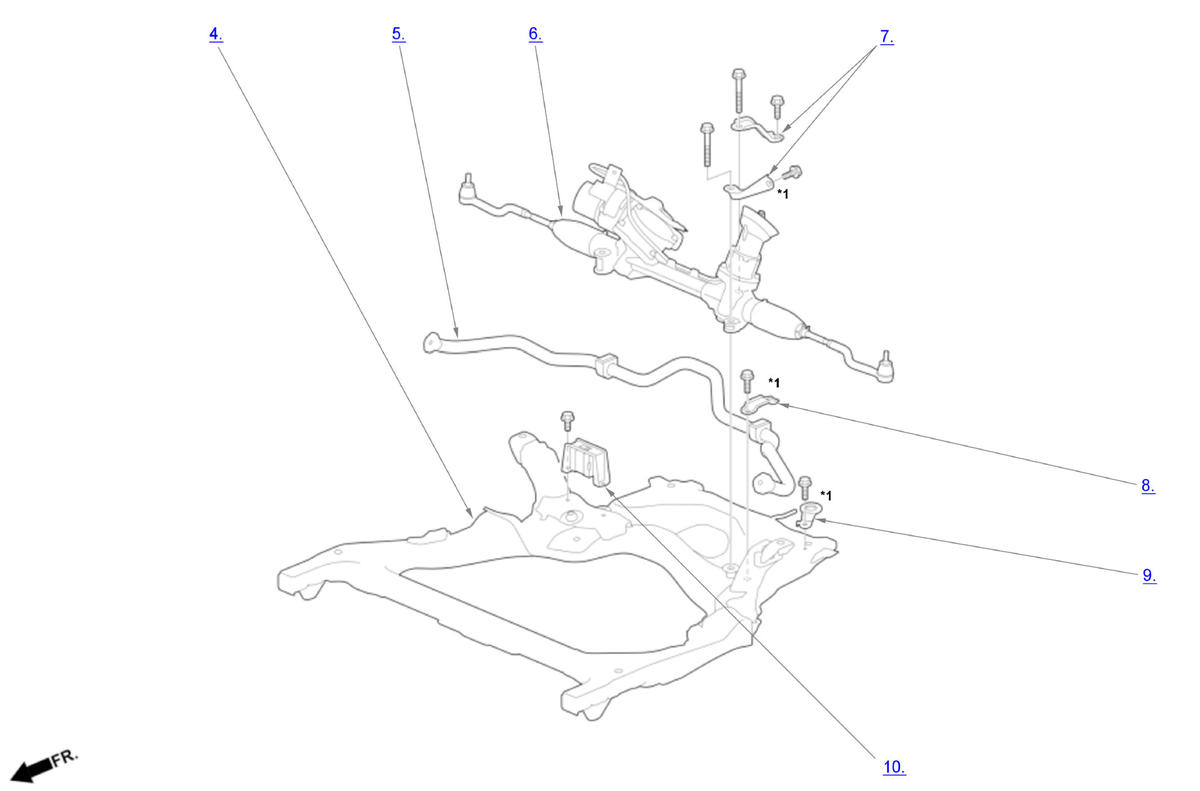

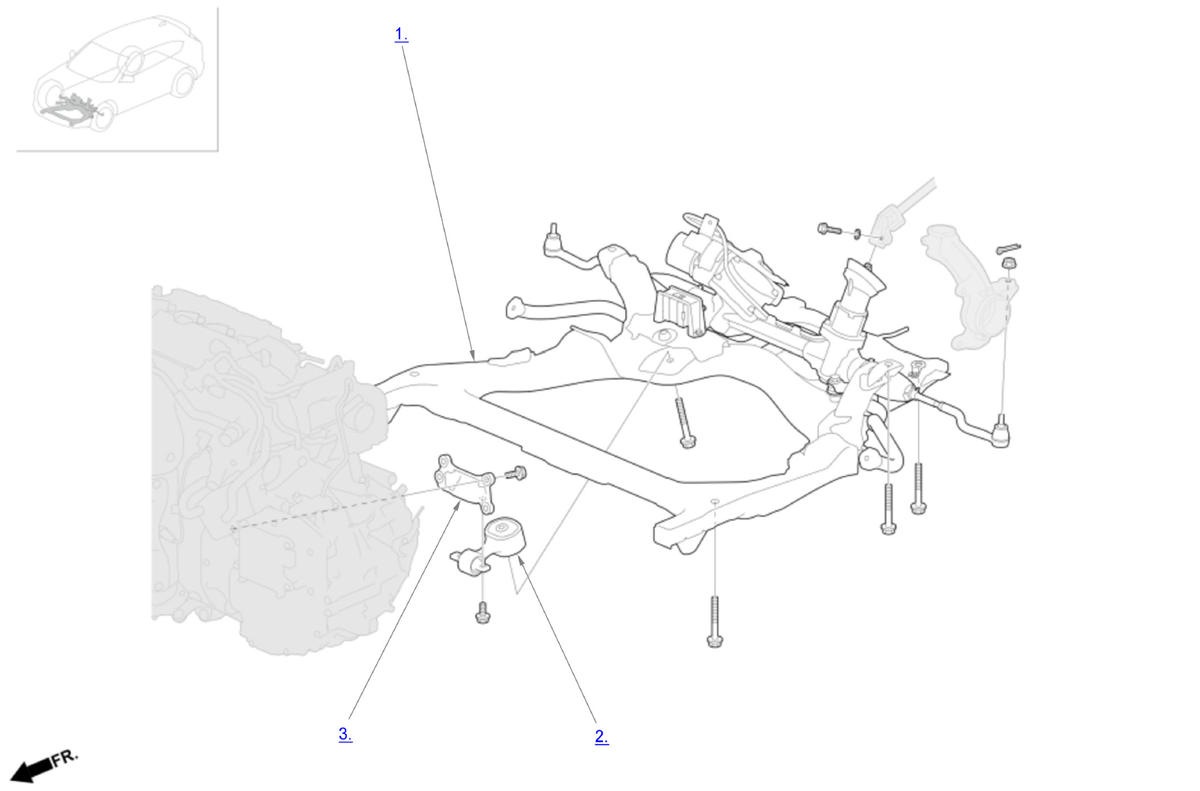

Front Subframe / Steering Gearbox Area Components
| Component Name | Callout |
|---|---|
| Front Subframe/Steering Gearbox Assembly | 1 |
| Lower Torque Rod | 2 |
| Lower Torque Rod Bracket | 3 |
| Front Subframe | 4 |
| Front Stabilizer Bar | 5 |
| Steering Gearbox | 6 |
| Steering Gearbox Stiffener | 7 |
| Bushing Holder | 8 |
| Sic Washer | 9 |
| Dynamic Damper | 10 |
