Removal and Installation

  1. EVAP Canister - Remove
  2. EVAP Two Way Valve - Remove

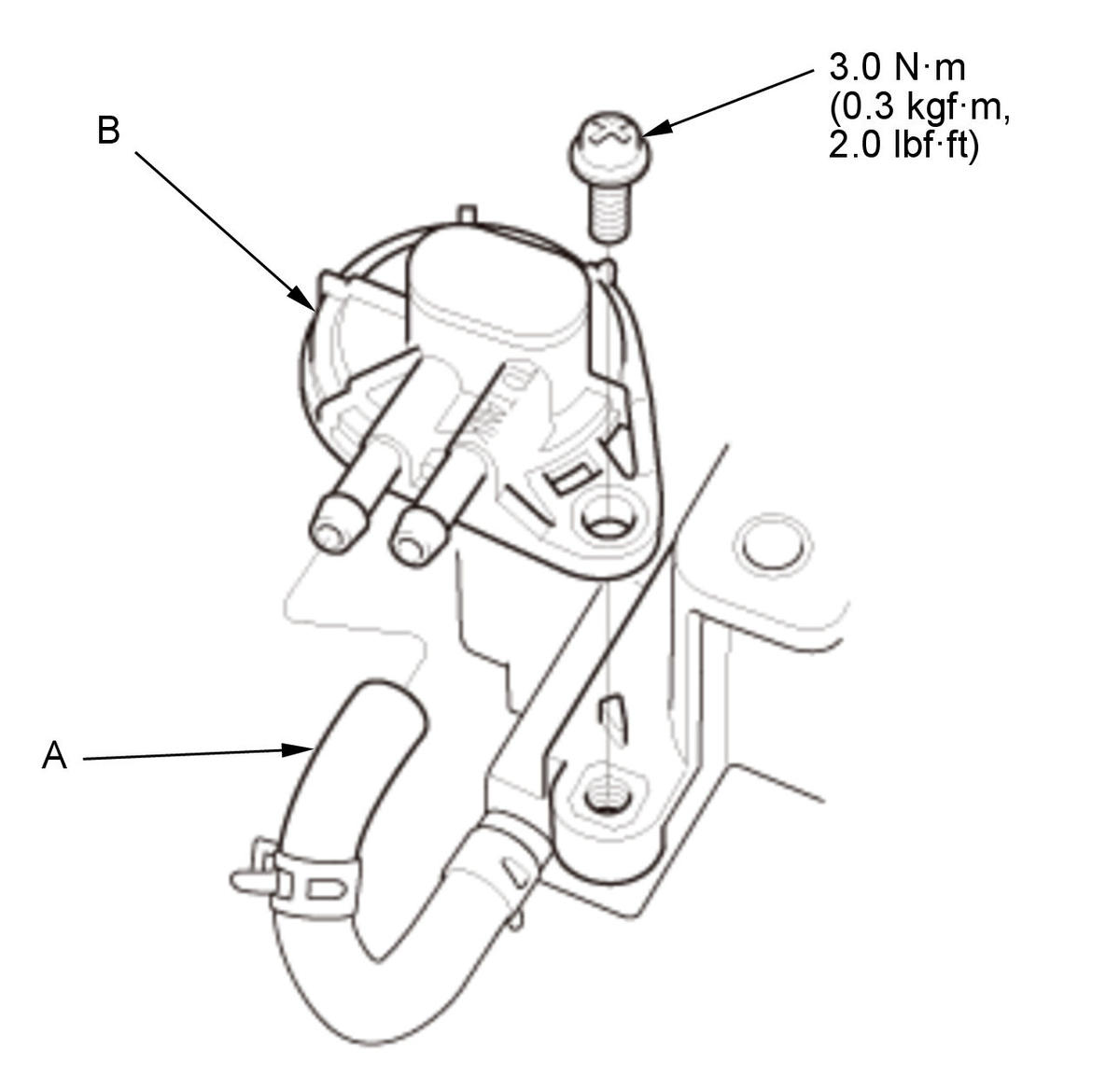

    GHH320272Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the hose (A).

    2. Remove the EVAP two way valve (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
