Shift Lock Unit: Installation

  1. Shift Lock Unit - Install
    GHH341764Courtesy of HONDA, U.S.A., INC.

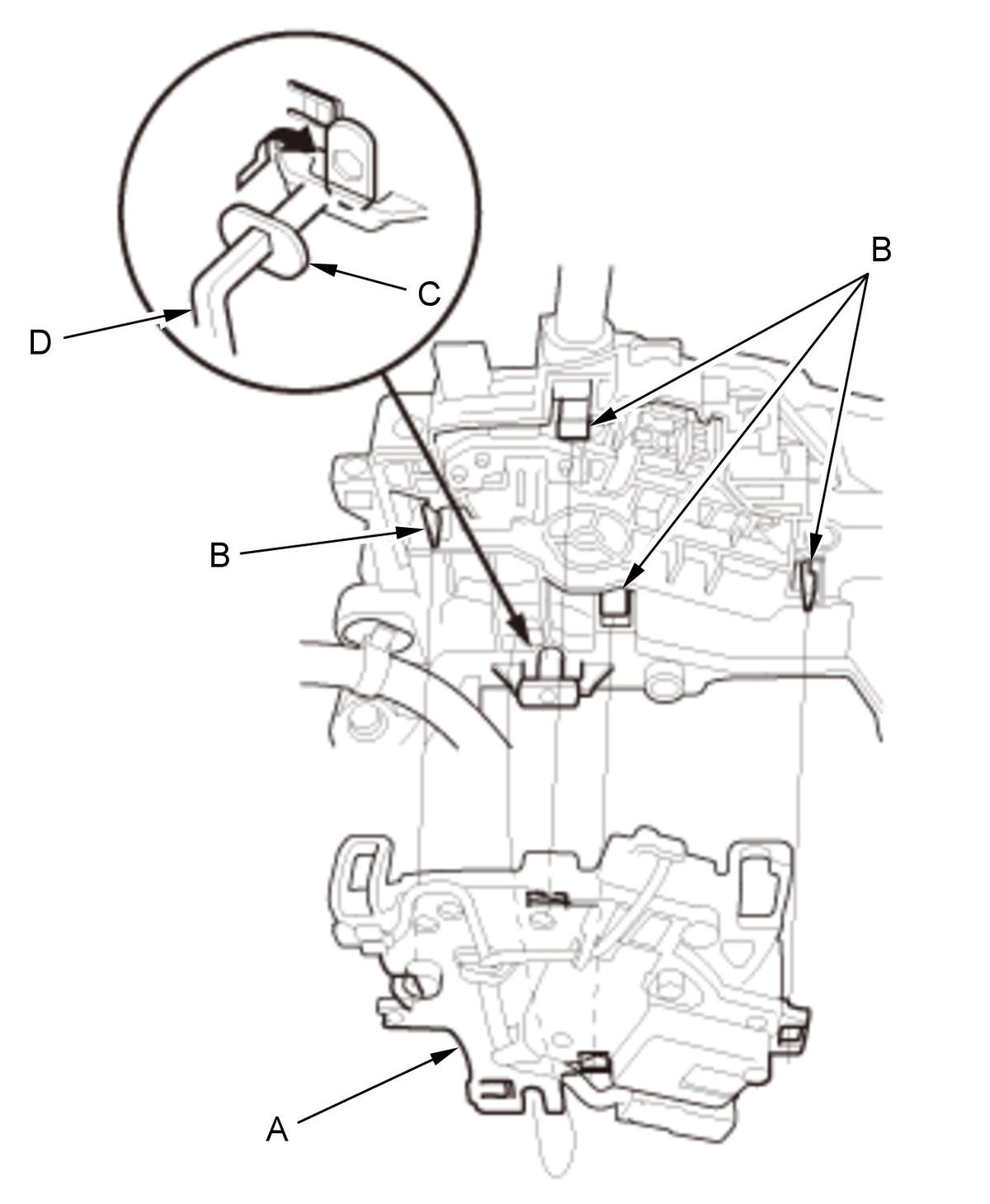

    		 1. Install the shift lock unit (A) by aligning four lock tabs (B).

    2. Push the pivot pin (C), and turn it clockwise using a hex wrench (D) as shown.
    GHH341765Courtesy of HONDA, U.S.A., INC.

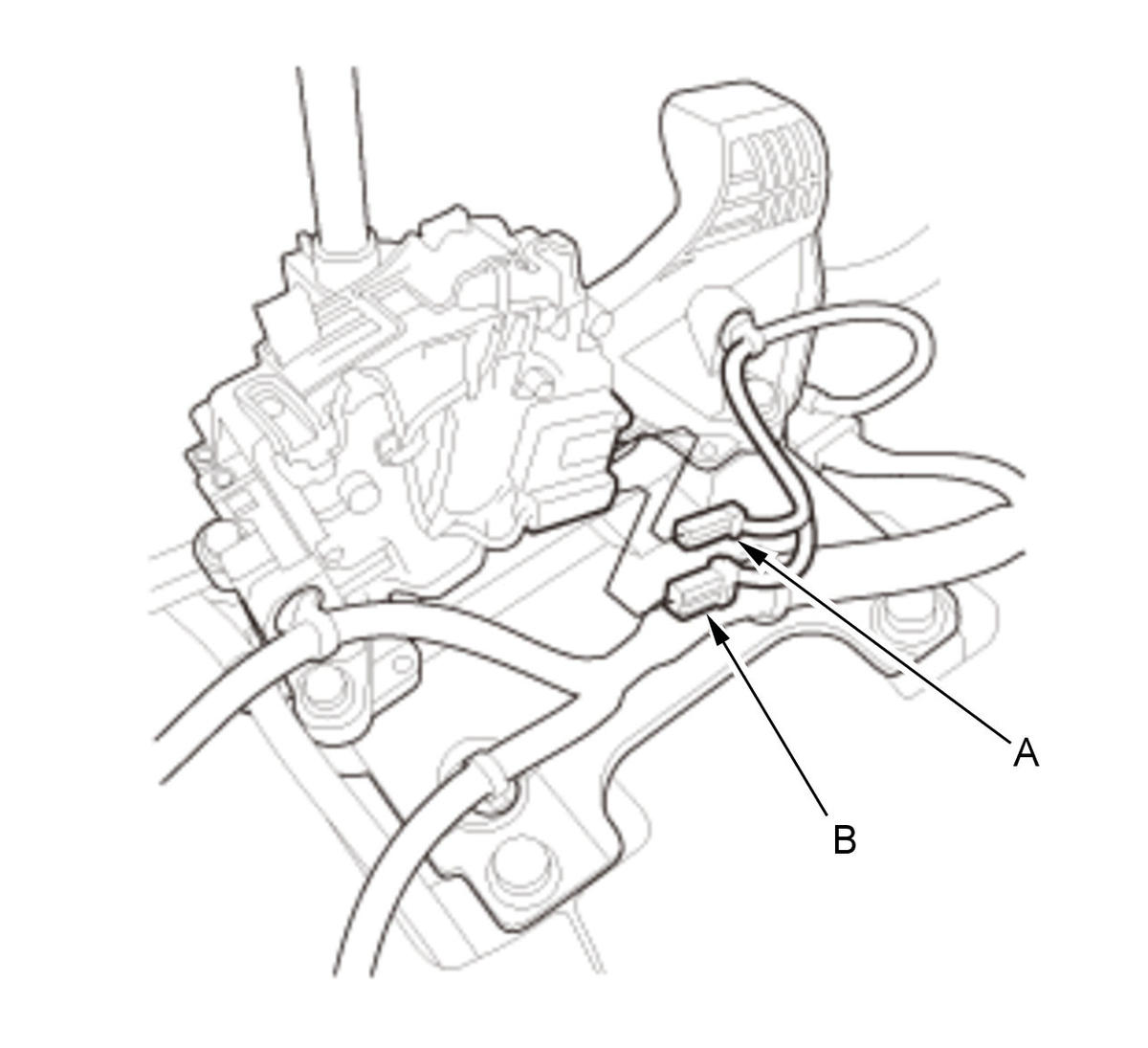

    		 3. Connect these connectors:
    • Shift lock solenoid connector (A)
    • Shift lever connector (B)
  2. Shift Lock Release/Shift Lock Release Bracket - Install
    GHH341766Courtesy of HONDA, U.S.A., INC.

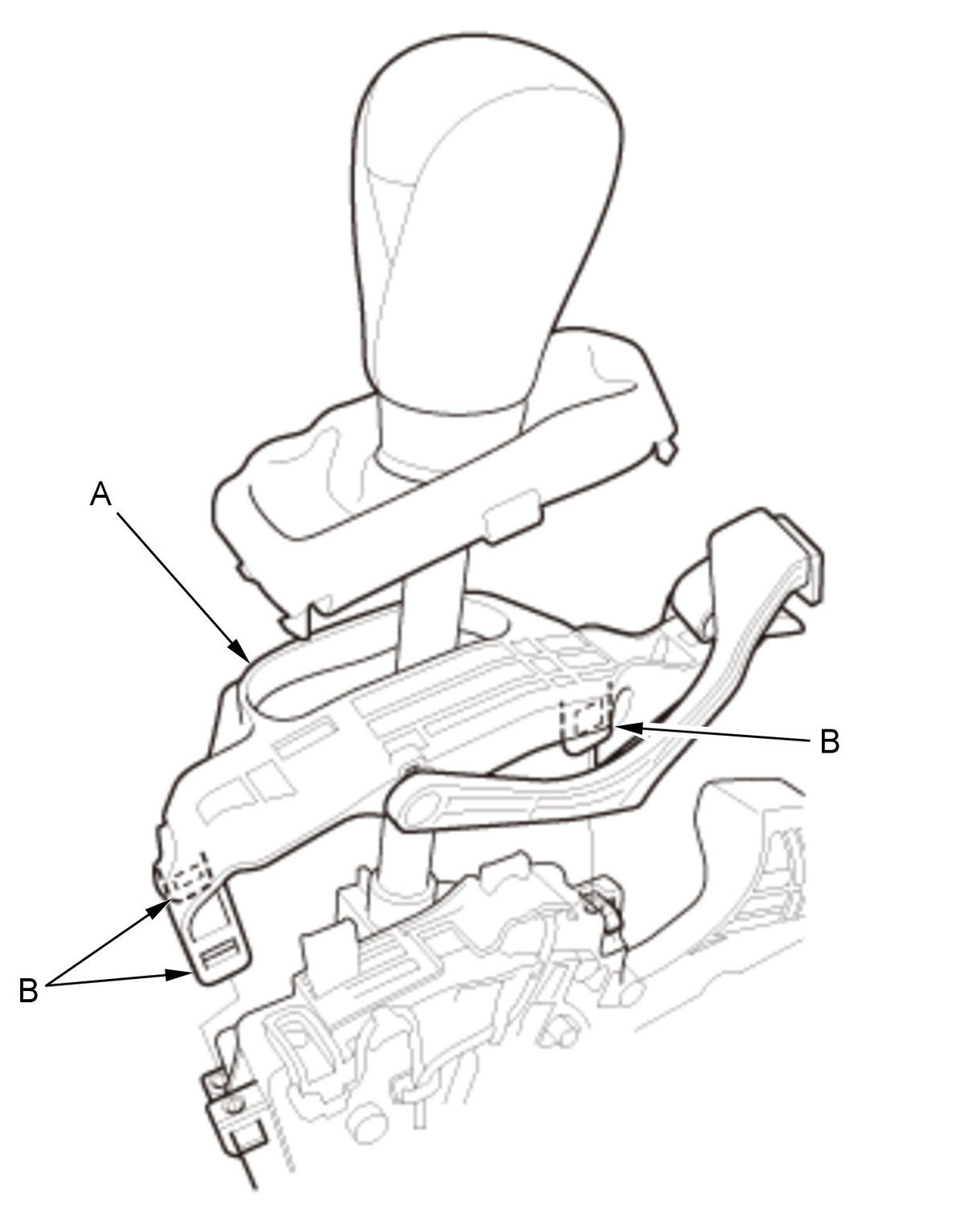

    Install the shift lock release/shift lock release bracket assembly (A) by aligning the lock tabs (B).

  3. Center Console - Install

    Install the center console .
