Shift Lock Release: Installation

  1. Shift Lock Release - Install

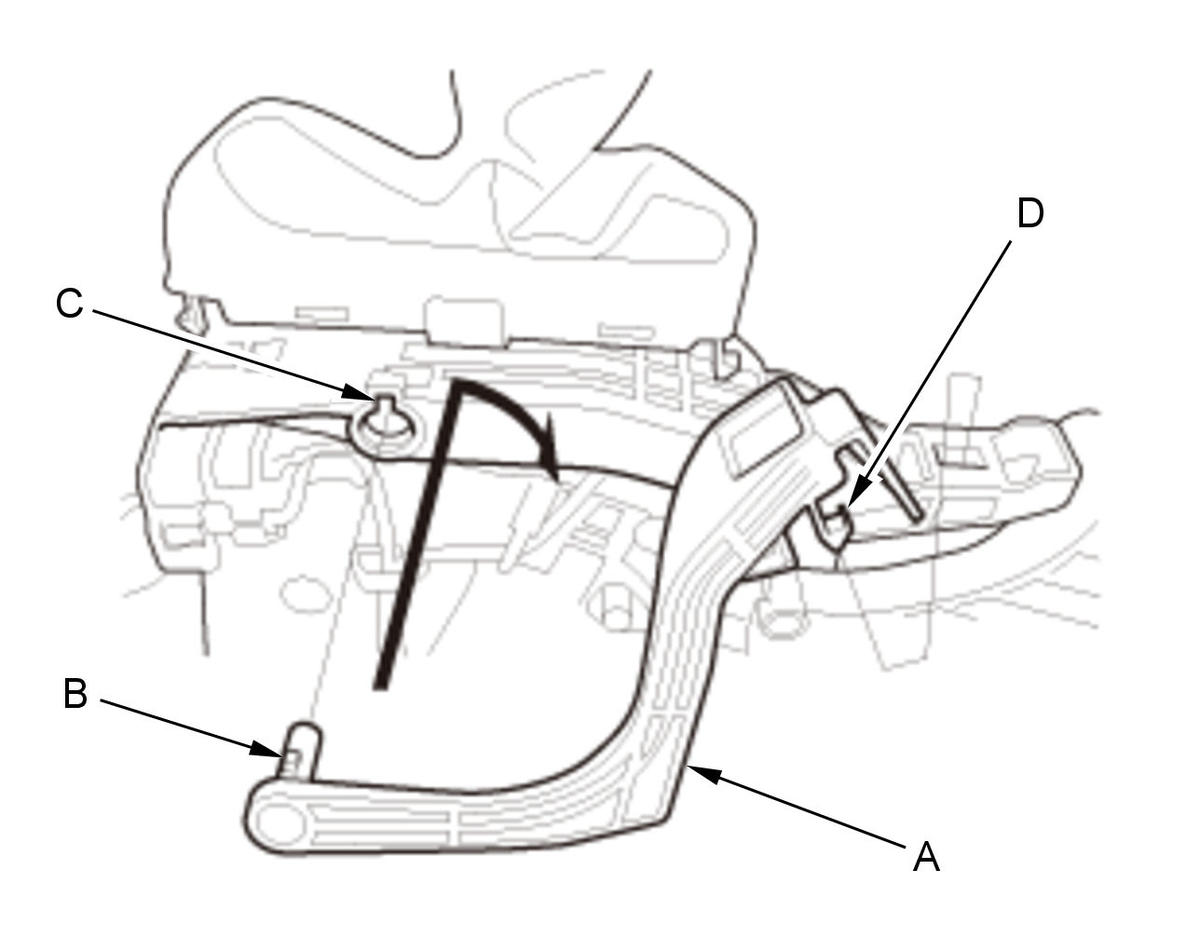

    GHH341755Courtesy of HONDA, U.S.A., INC.
    		 1. Install the shift lock release (A) by aligning the tab (B) with the groove (C).

    2. Turn the shift lock release clockwise, until the lock tab (D) locks.
  2. Center Console Panel - Install

    Install the center console panel .
