Shift Lever Boot: Installation

Shift Lever Boot - Install

Courtesy of HONDA, U.S.A., INC.

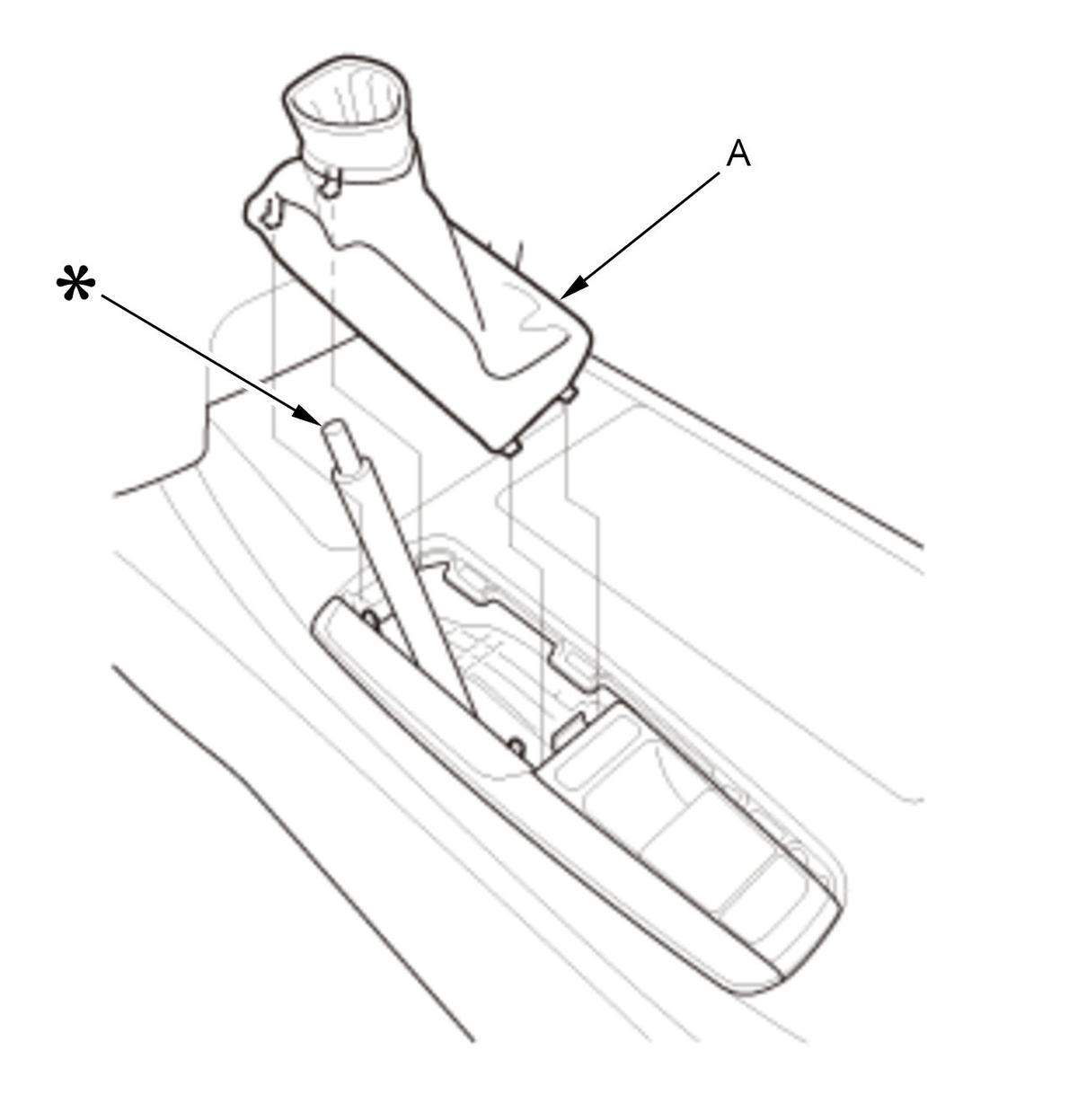

NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you assemble it.

Install the shift lever boot (A).
Shift Lever Knob and Shift Lever Knob Ring - Install
Install the shift lever knob and the shift lever knob ring .

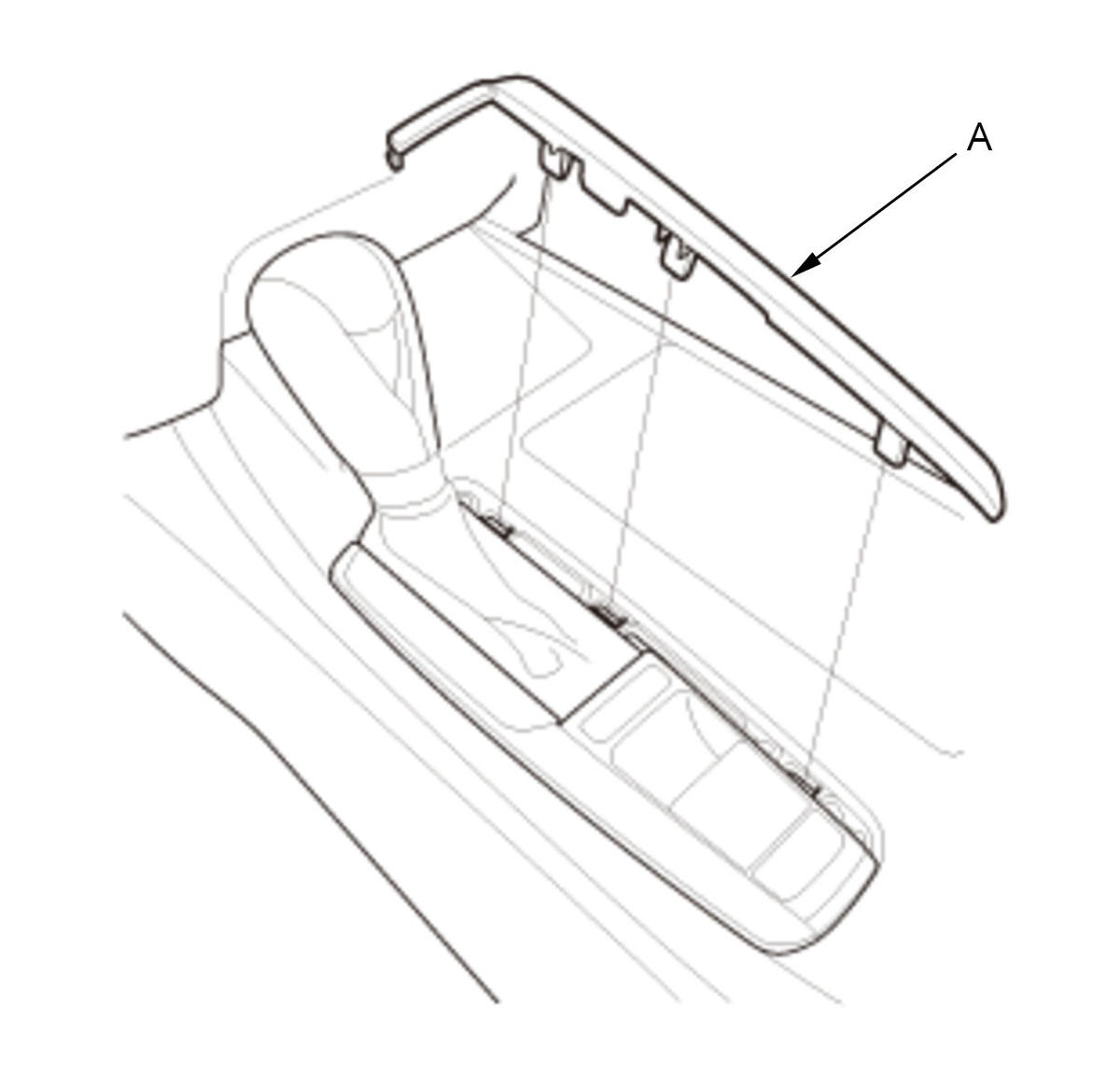

Right A/T Shift Trim - Install

Courtesy of HONDA, U.S.A., INC.

Install the right A/T shift trim (A).
