ATF Temperature Sensor: Removal

ATF - Drain

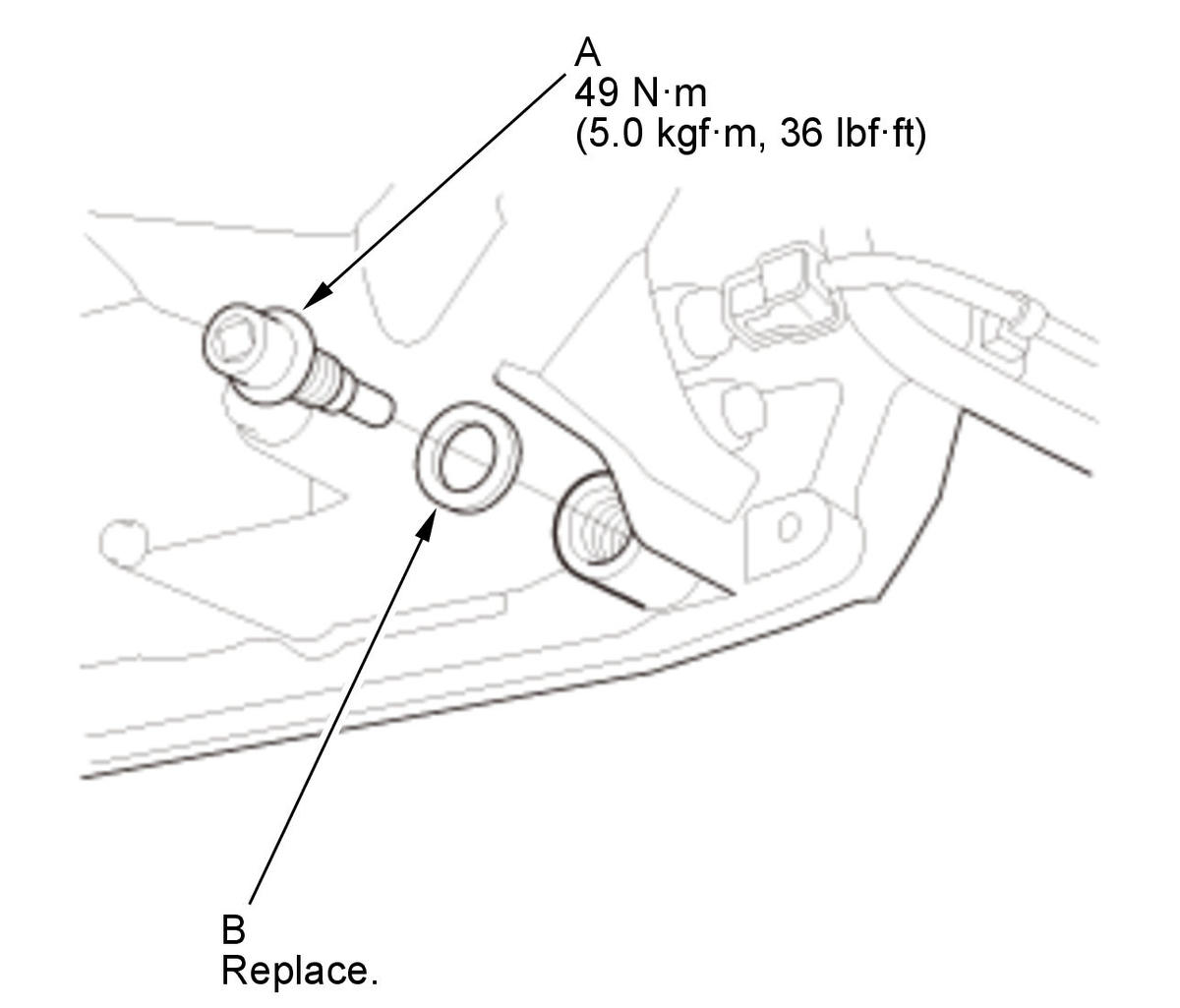

Fig 1: ATF Drain Plug With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Remove the drain plug (A).

2. Drain the ATF.

3. Reinstall the drain plug with a new sealing washer (B).

ATF Temperature Sensor - Remove

Courtesy of HONDA, U.S.A., INC.

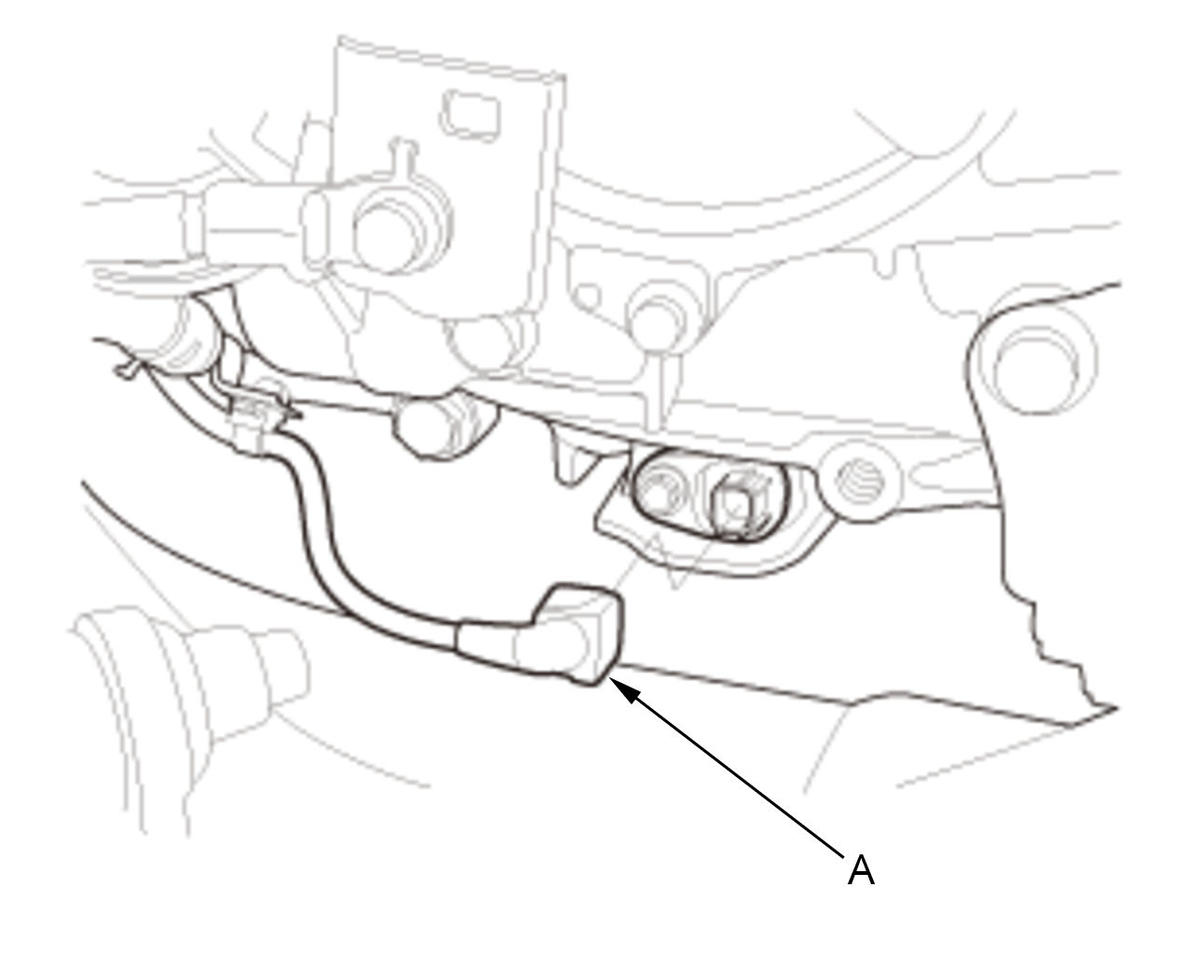

1. Disconnect the ATF temperature sensor connector (A).

Courtesy of HONDA, U.S.A., INC.

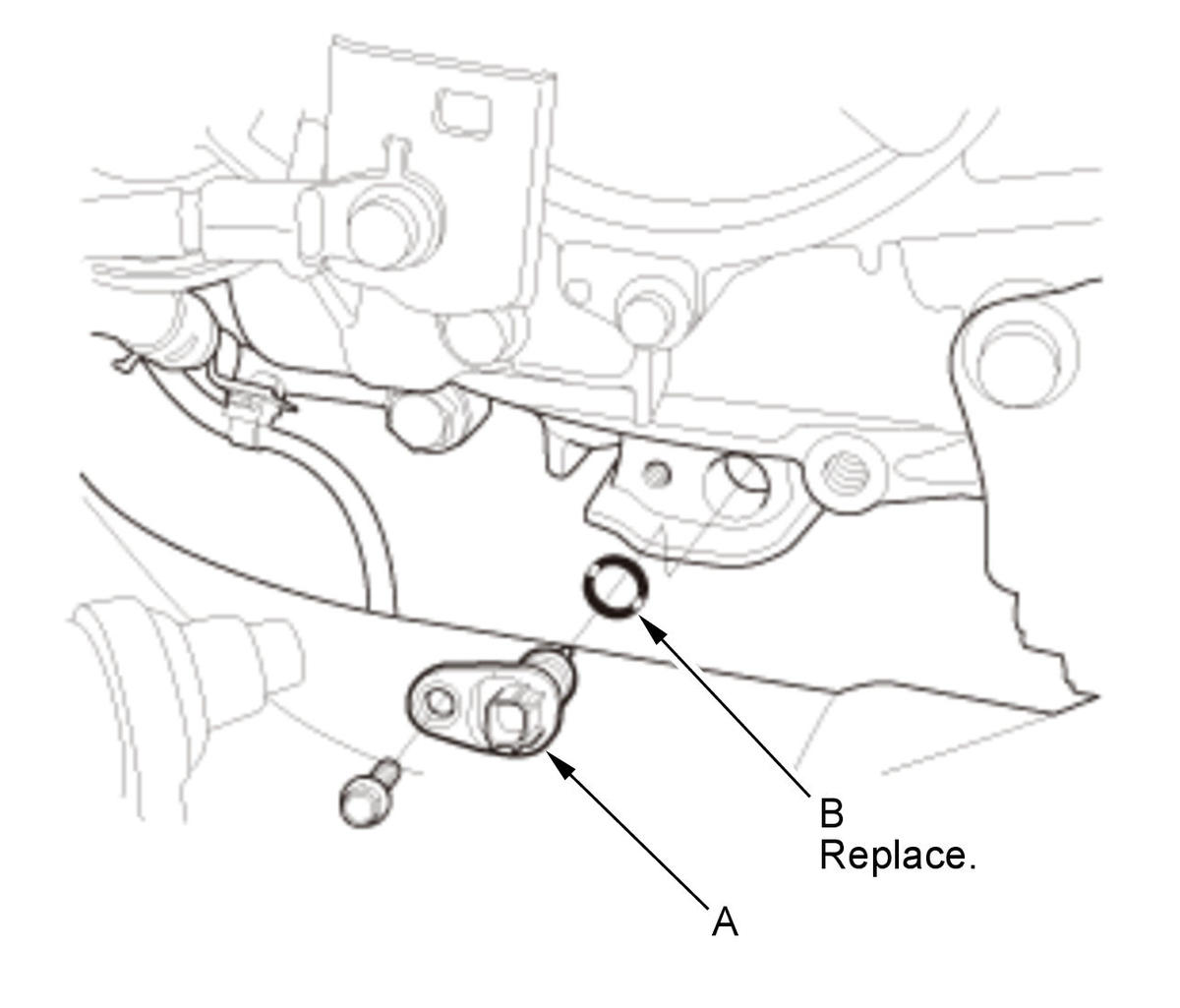

2. Remove the ATF temperature sensor (A) with the O-ring (B).
