ATF Temperature Sensor: Installation

  1. ATF Temperature Sensor - Install

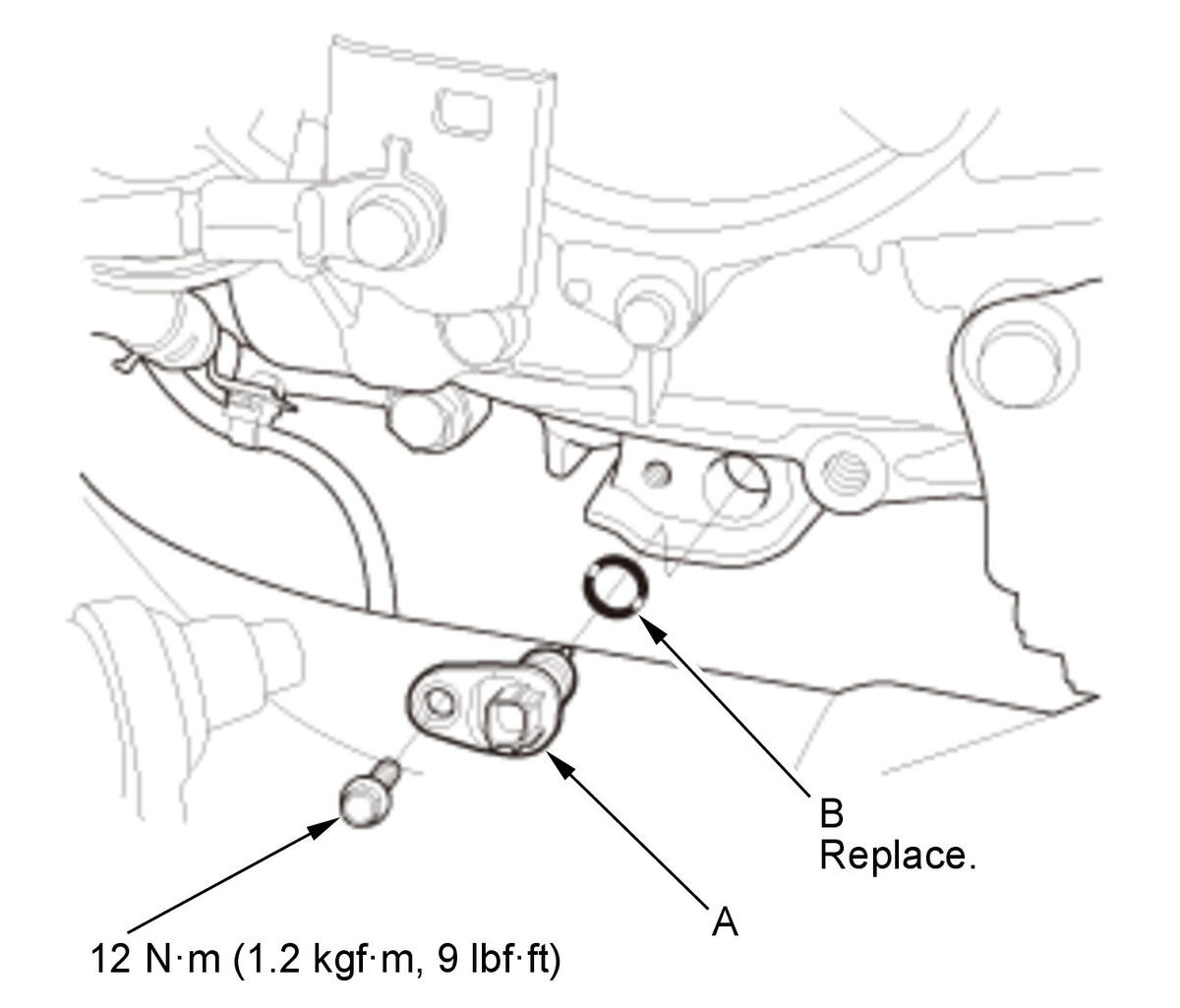

    Fig 1: ATF Temperature Sensor With Torque Specifications
    GHH341524Courtesy of HONDA, U.S.A., INC.
    1. Install the ATF temperature sensor (A) with a new O-ring (B).
    GHH341525Courtesy of HONDA, U.S.A., INC.

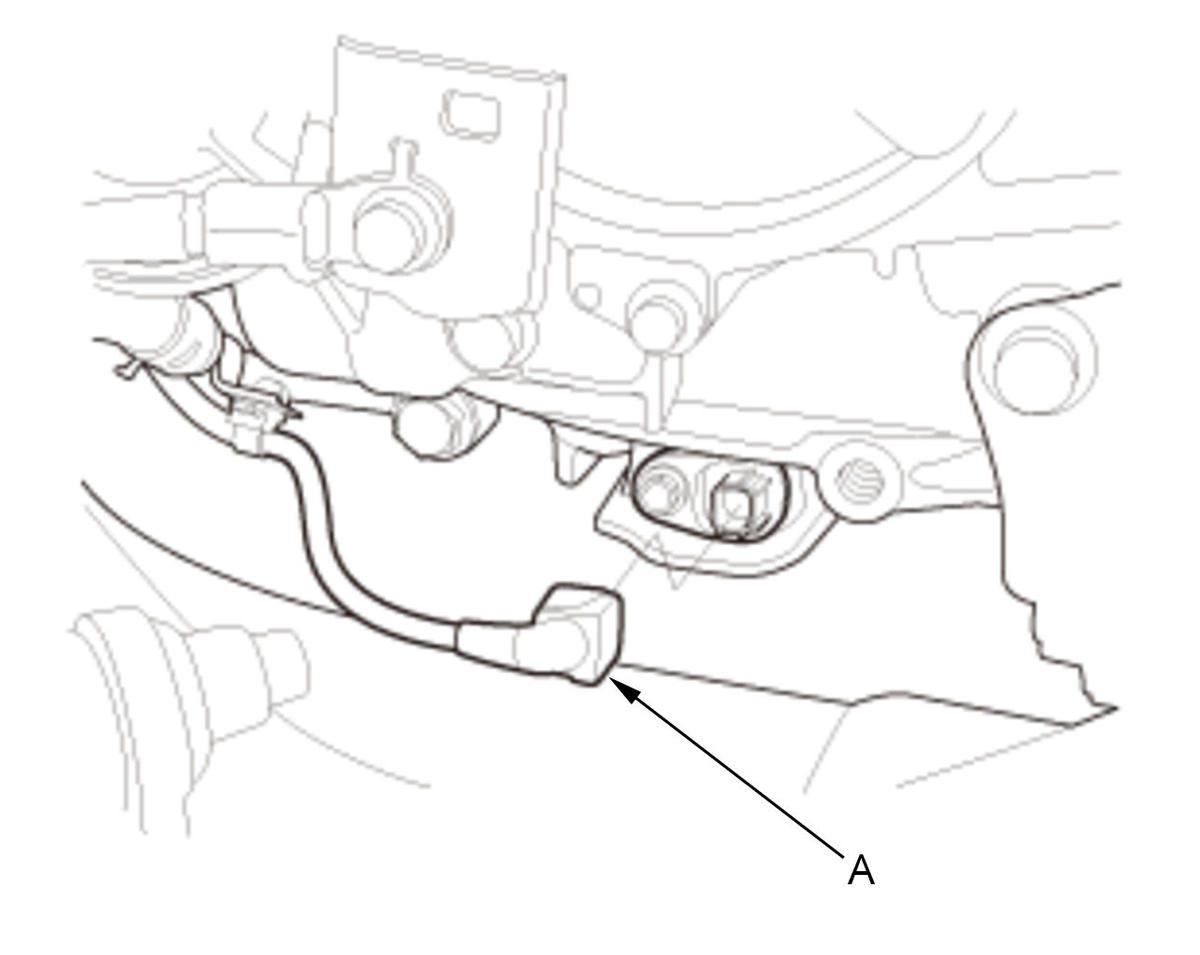

    		 2. Connect the ATF temperature sensor connector (A) securely.

    NOTE:  Check the connector for corrosion, dirt, or oil, and clean or repair if necessary.
  2. Engine Undercover - Install

    Install the engine undercover .

  3. ATF - Refill

    Refill the transmission with ATF .
