Shift Lever
>>

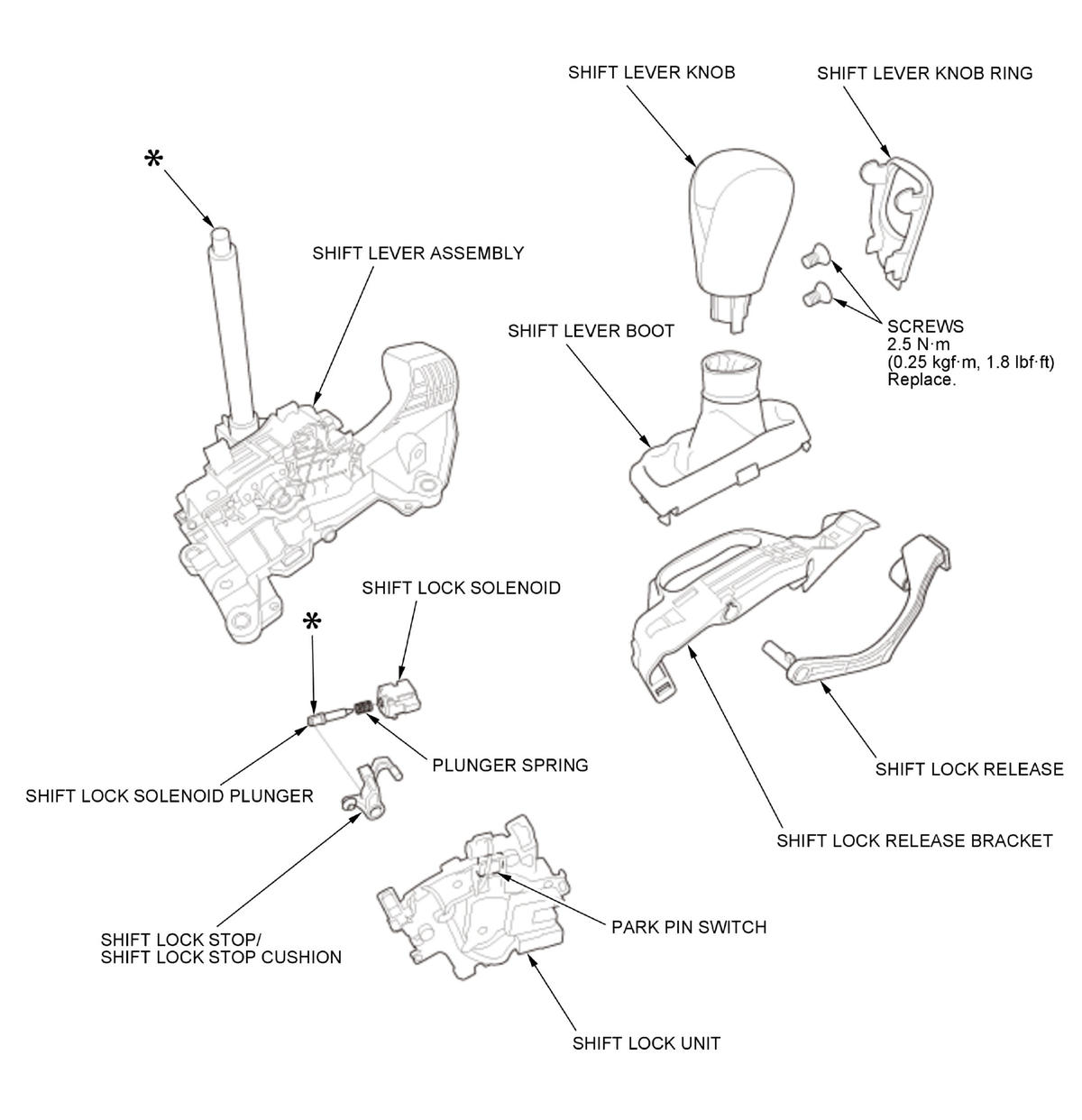

Exploded View
Exploded View
Shift Lever
NOTE:
Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you assemble it.
