Shift Lever: Disassembly

  1. Shift Lever - Remove

    Remove the shift lever assembly .

  2. Shift Lever Knob Ring - Remove

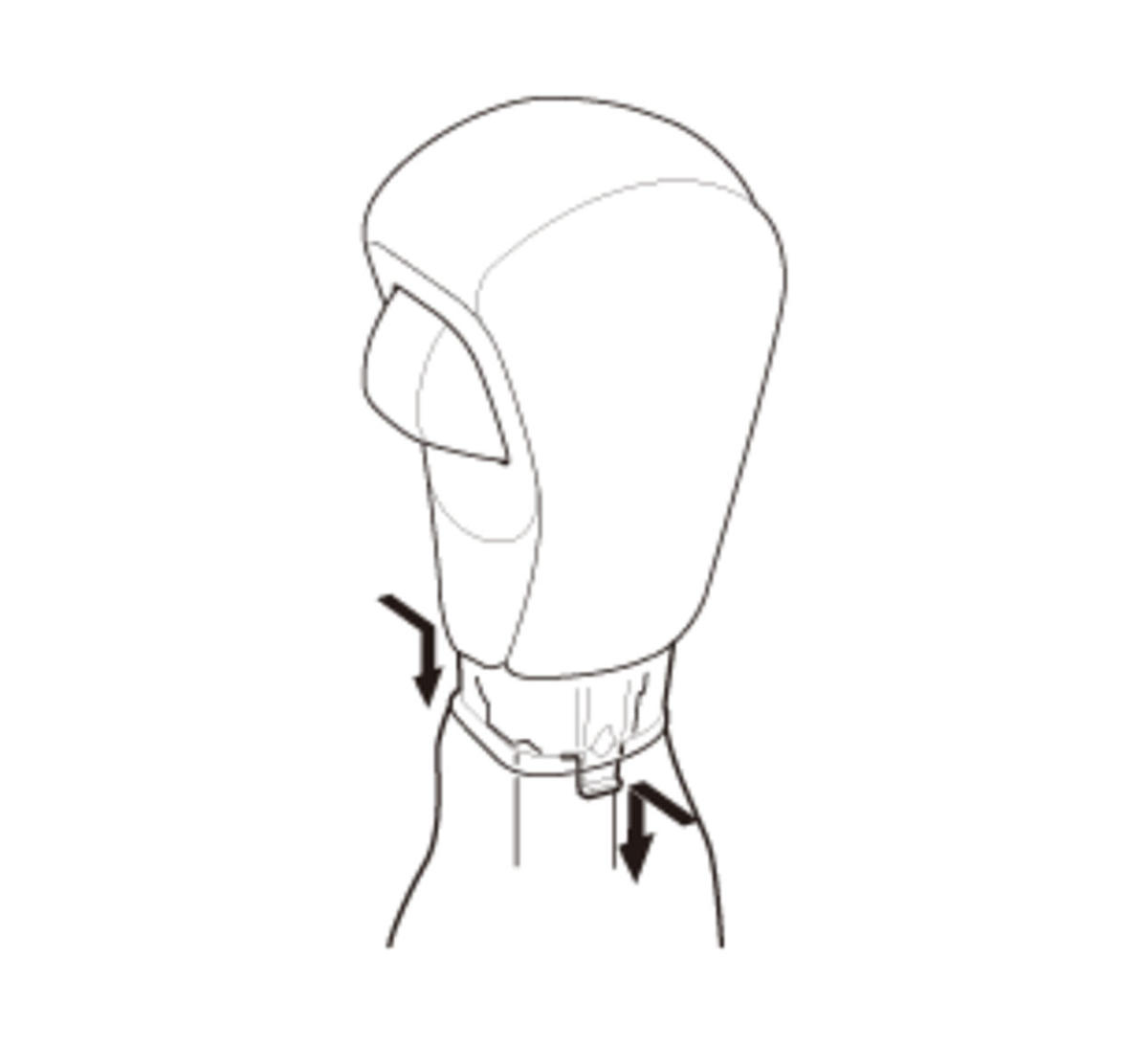

    GHH341950Courtesy of HONDA, U.S.A., INC.
    		 1. Grasp the shift lever boot ring, and slip it out of the shift lever knob.

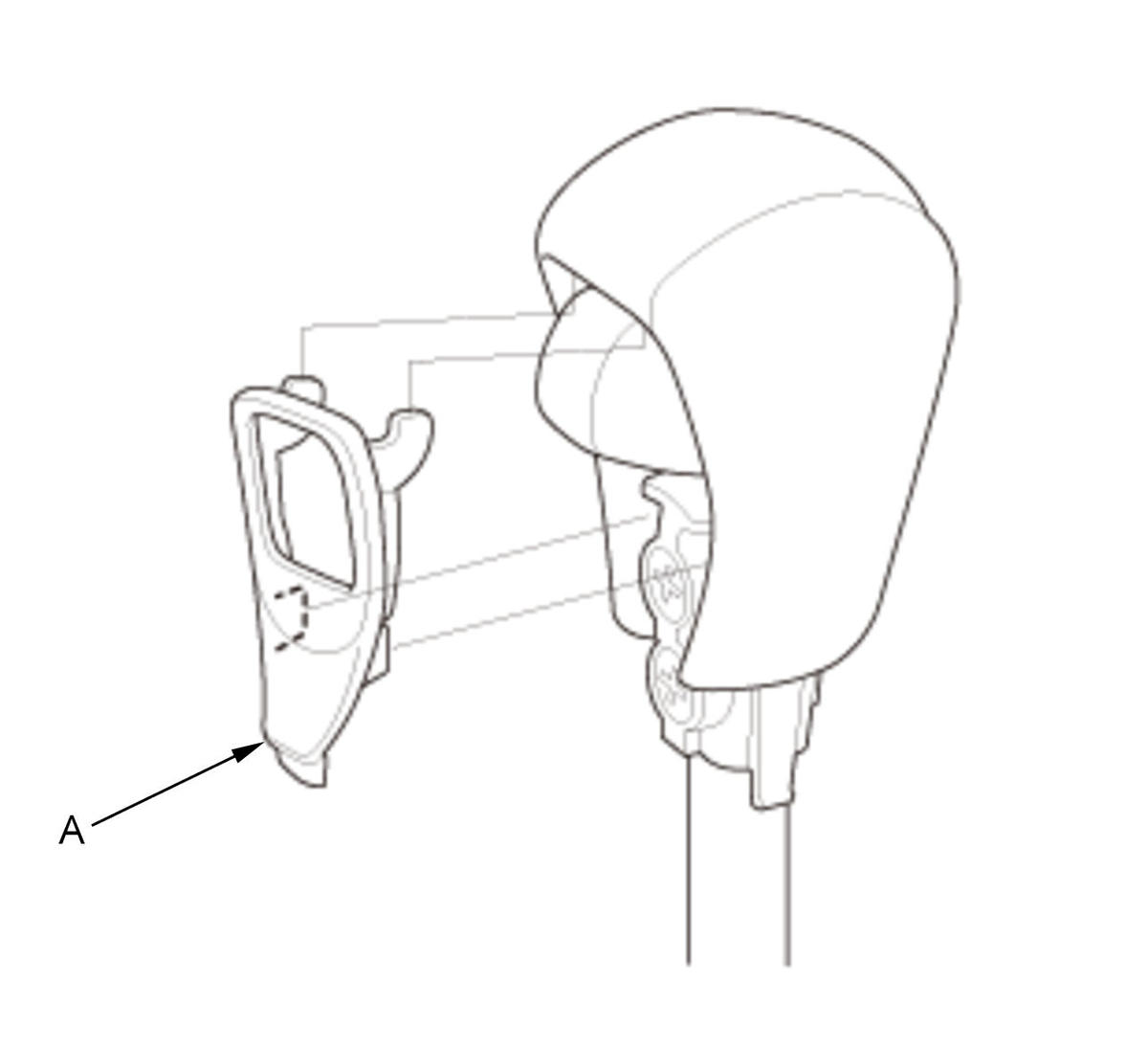

    GHH341951Courtesy of HONDA, U.S.A., INC.
    		 2. Remove the shift lever knob ring (A).
  3. Shift Lever Knob - Remove

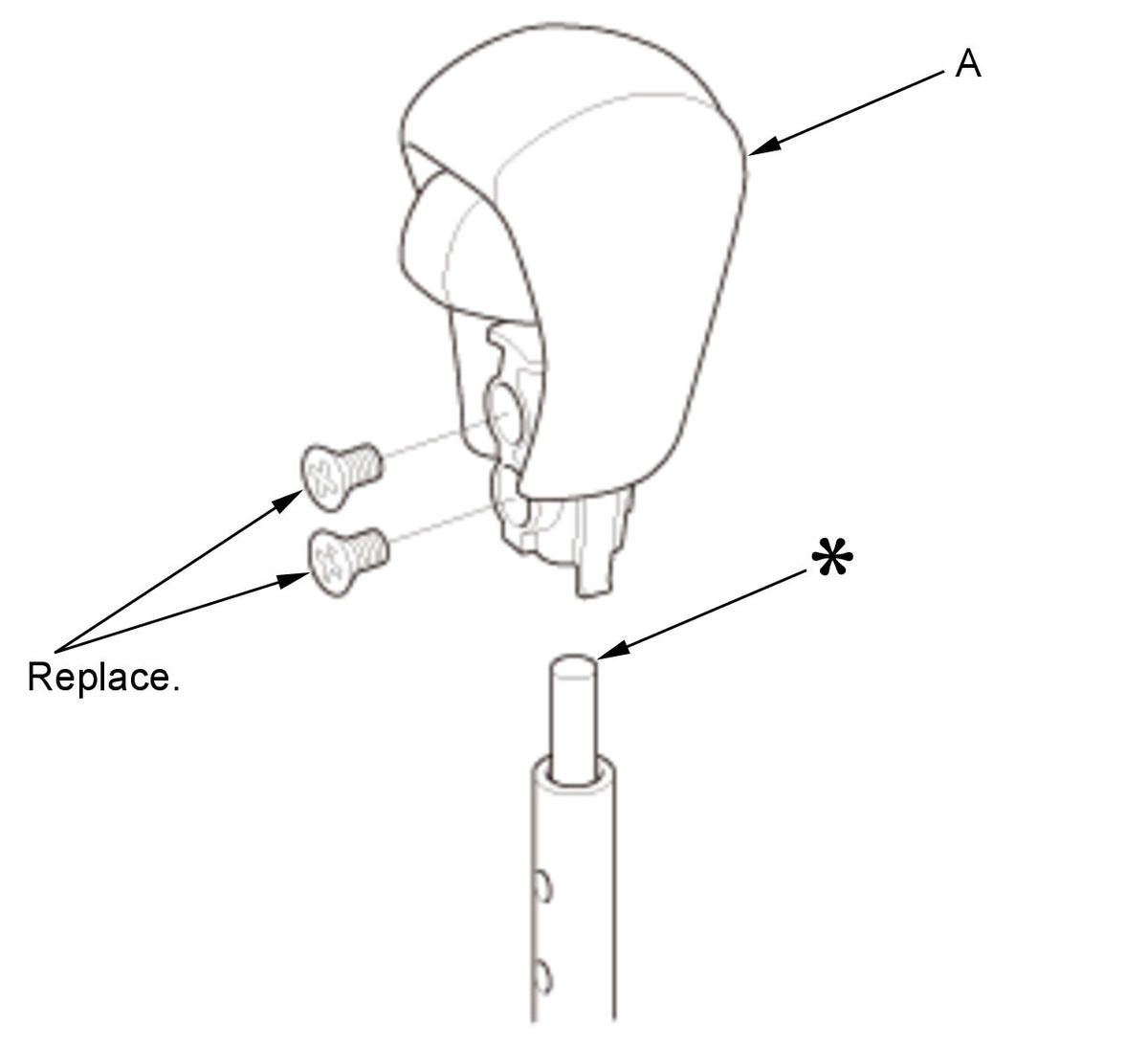

    GHH341952Courtesy of HONDA, U.S.A., INC.
    NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you disassemble it.

    Remove the shift lever knob (A).

  4. Shift Lever Boot - Remove

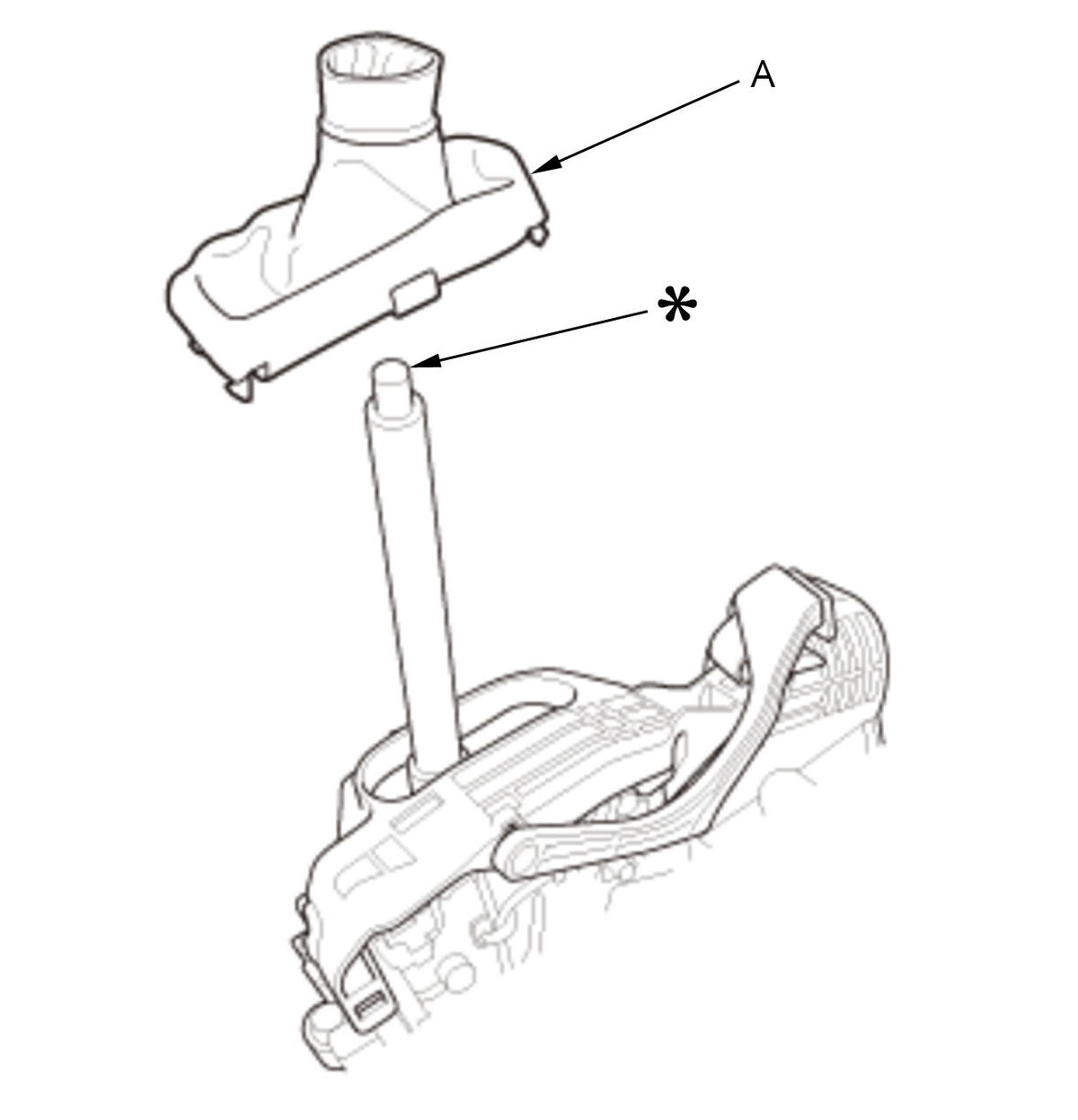

    GHH341953Courtesy of HONDA, U.S.A., INC.
    NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you disassemble it.

    Remove the shift lever boot (A).

  5. Shift Lock Release - Remove

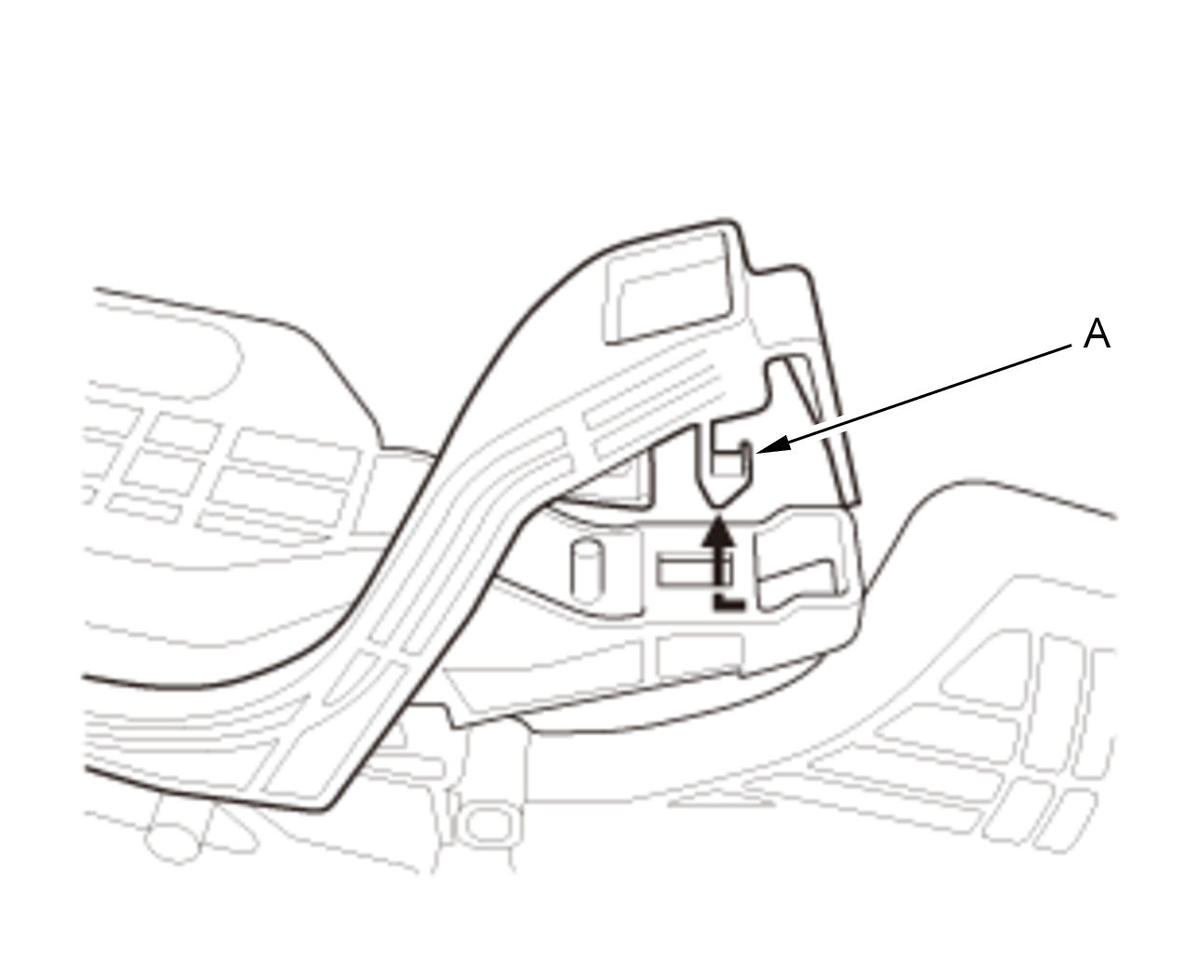

    GHH341954Courtesy of HONDA, U.S.A., INC.
    		 1. Release the lock tab (A).

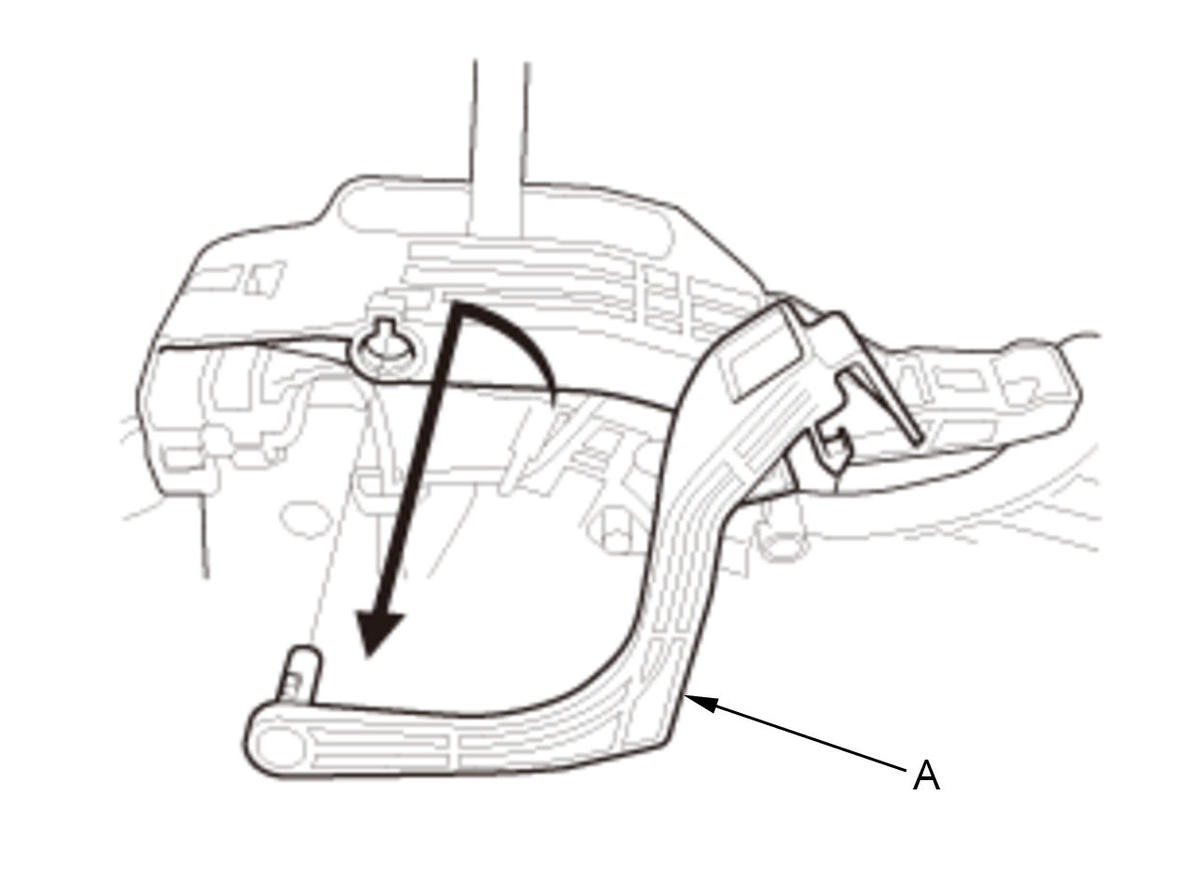

    GHH341955Courtesy of HONDA, U.S.A., INC.
    		 2. Turn the shift lock release (A) counterclockwise, then remove it.
  6. Shift Lock Release Bracket - Remove

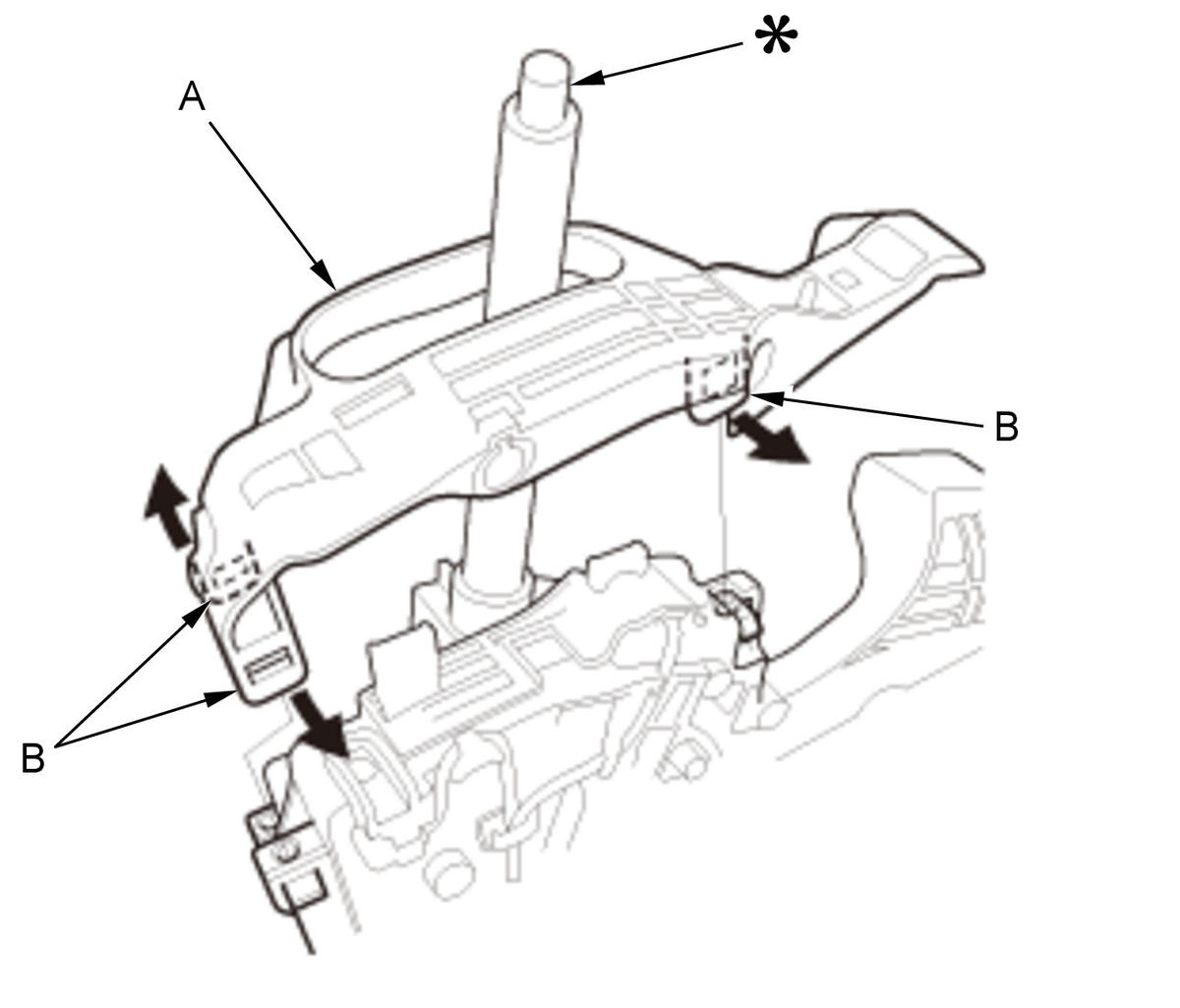

    GHH341956Courtesy of HONDA, U.S.A., INC.
    NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you disassemble it.

    Remove the shift lock release bracket (A) by expanding the lock tabs (B).

  7. Shift Lock Unit - Remove

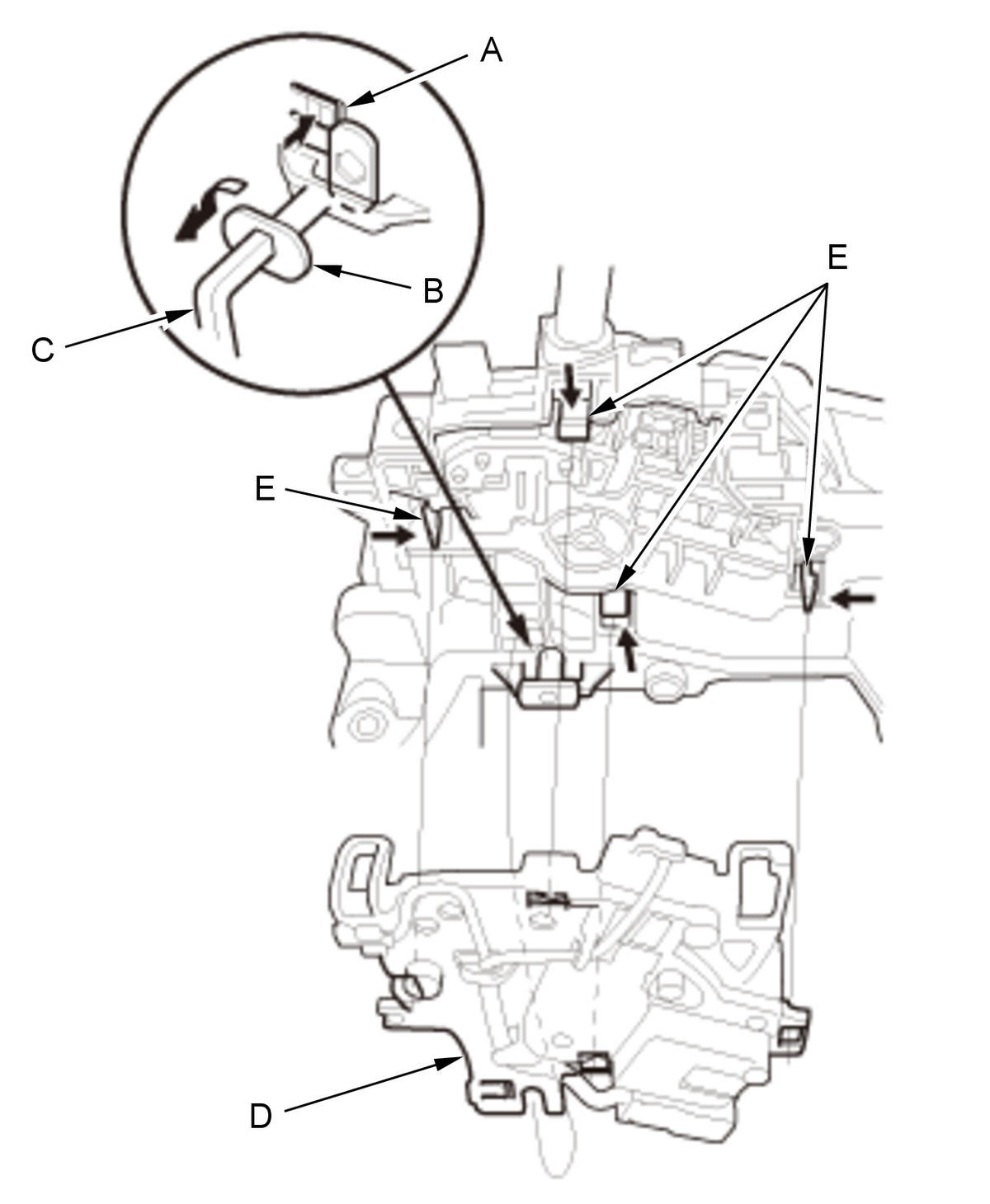

    GHH341957Courtesy of HONDA, U.S.A., INC.
    		 1. Release the lock tab (A) and turn the pivot pin (B) counterclockwise using a hex wrench (C) as shown, and pull it.

    2. Remove the shift lock unit (D) while releasing four lock tabs (E).
  8. Shift Lock Solenoid - Remove

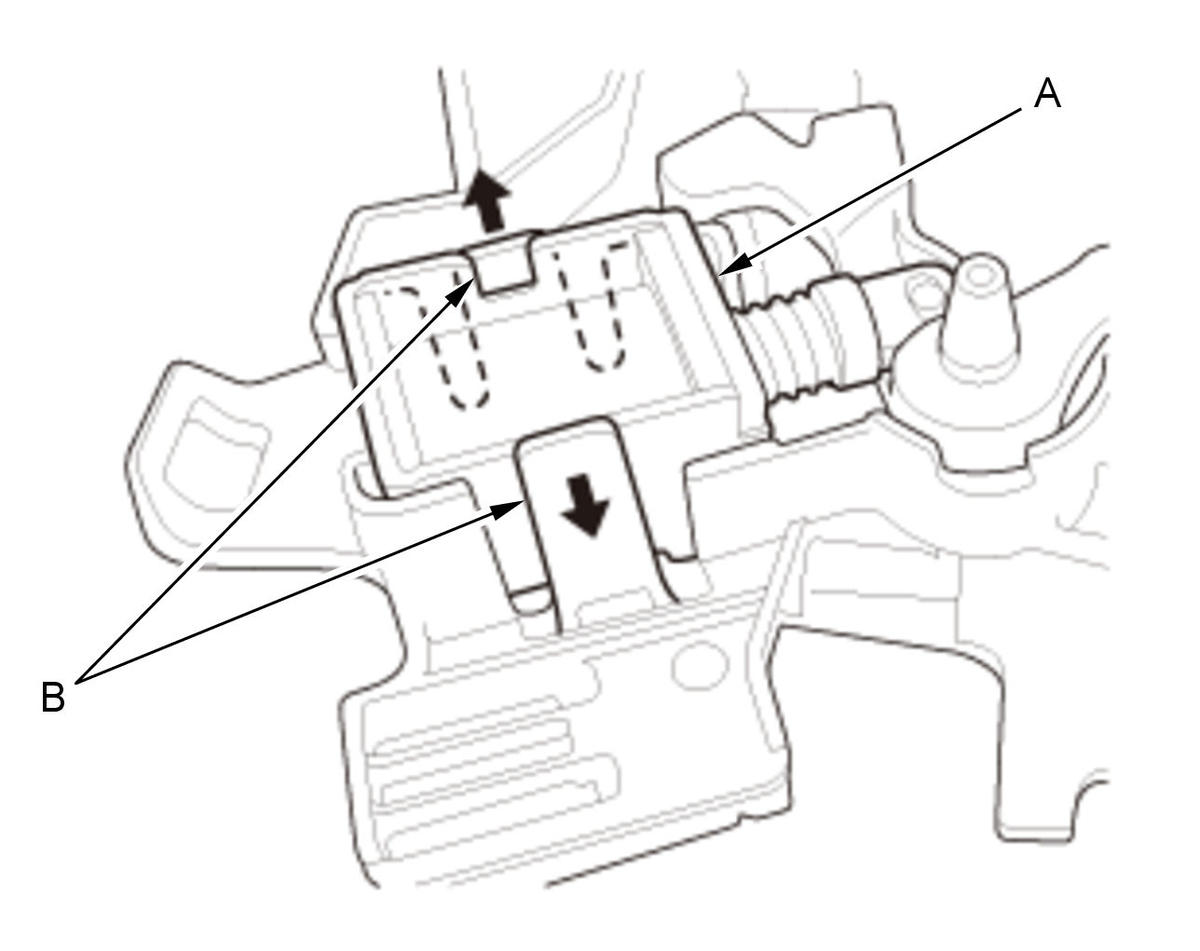

    GHH341958Courtesy of HONDA, U.S.A., INC.
    		 NOTE:  Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you disassemble it.

    1. Pull the shift lock solenoid (A) out by expanding the lock tabs (B).

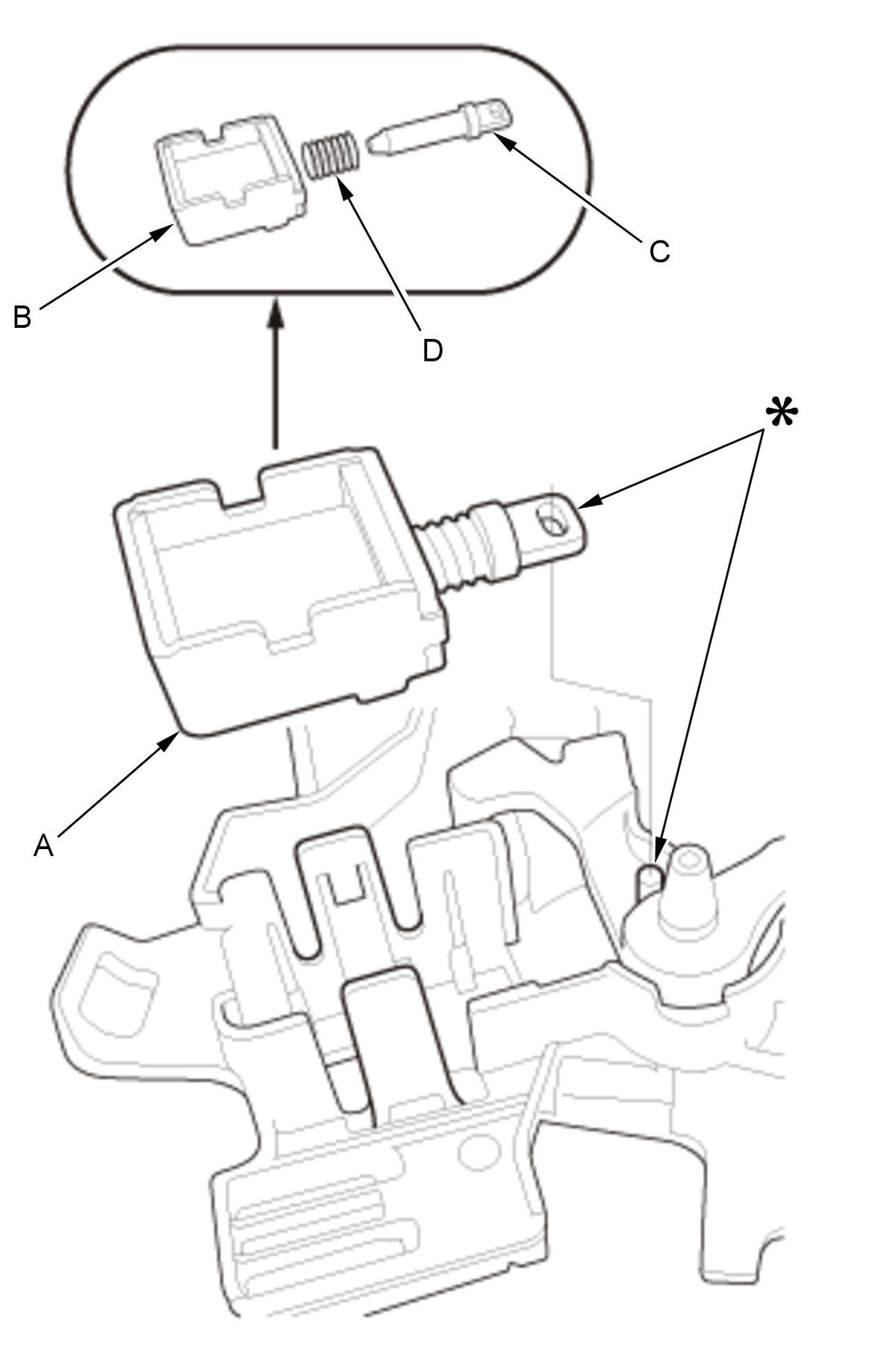

    GHH341959Courtesy of HONDA, U.S.A., INC.
    		 2. Remove the shift lock solenoid (A).

    NOTE:  The shift lock solenoid consists of the solenoid (B), the solenoid plunger (C), and the plunger spring (D).
  9. Shift Lock Stop/Shift Lock Stop Cushion - Remove

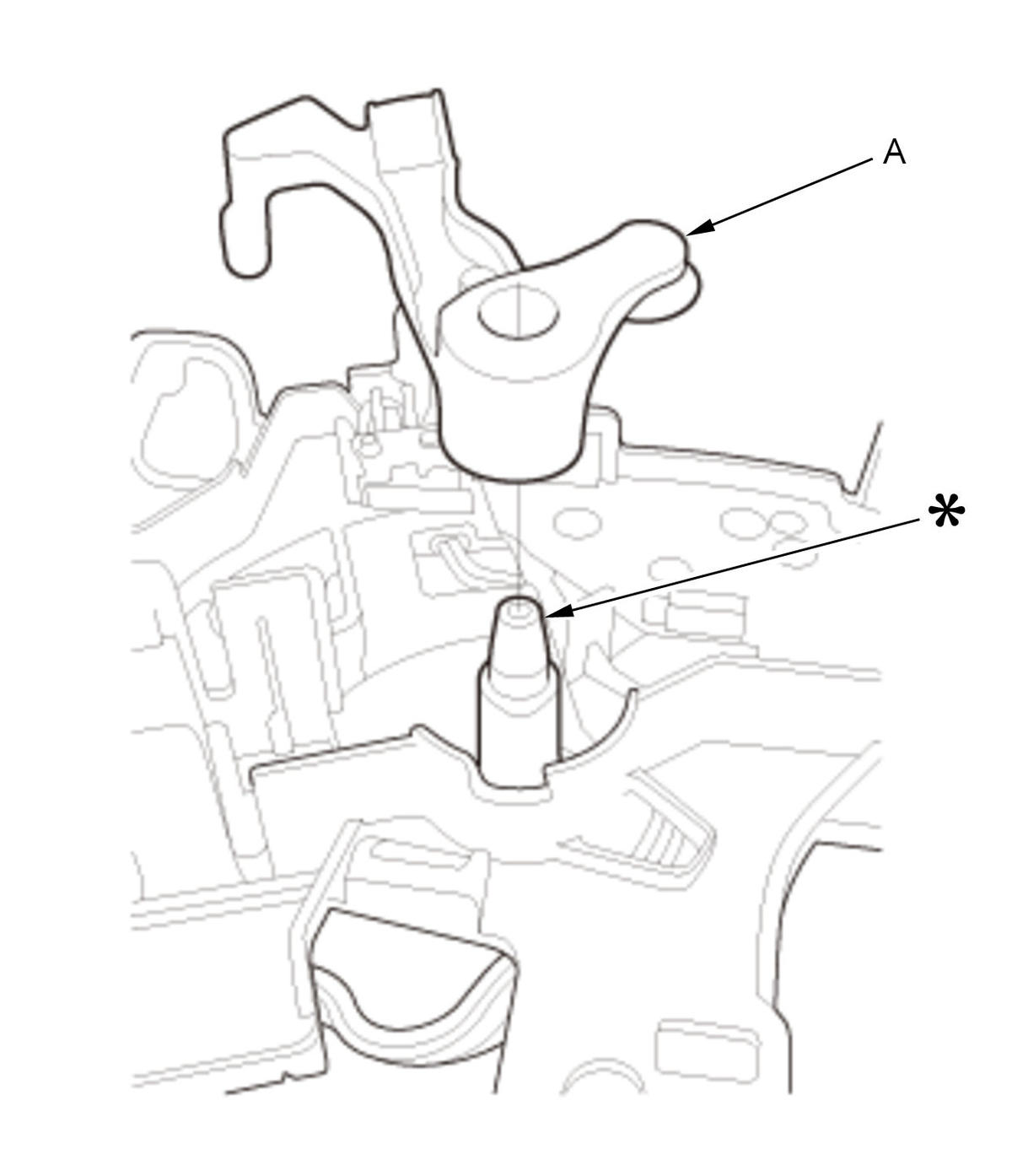

    GHH341960Courtesy of HONDA, U.S.A., INC.

    NOTE:  Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you disassemble it.

    Remove the shift lock stop/shift lock stop cushion (A).
