DTC P0335

DTC P0335  : CKP Sensor No Signal

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Start the engine.

   -4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0335 CKP Sensor No Signal

   Is DTC P0335 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the CKP sensor and the PCM.

2. Open wire check (IGP/FI MAIN RLY OUT line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   CKP sensor 3P connector

   -3. Turn the vehicle to the ON mode.

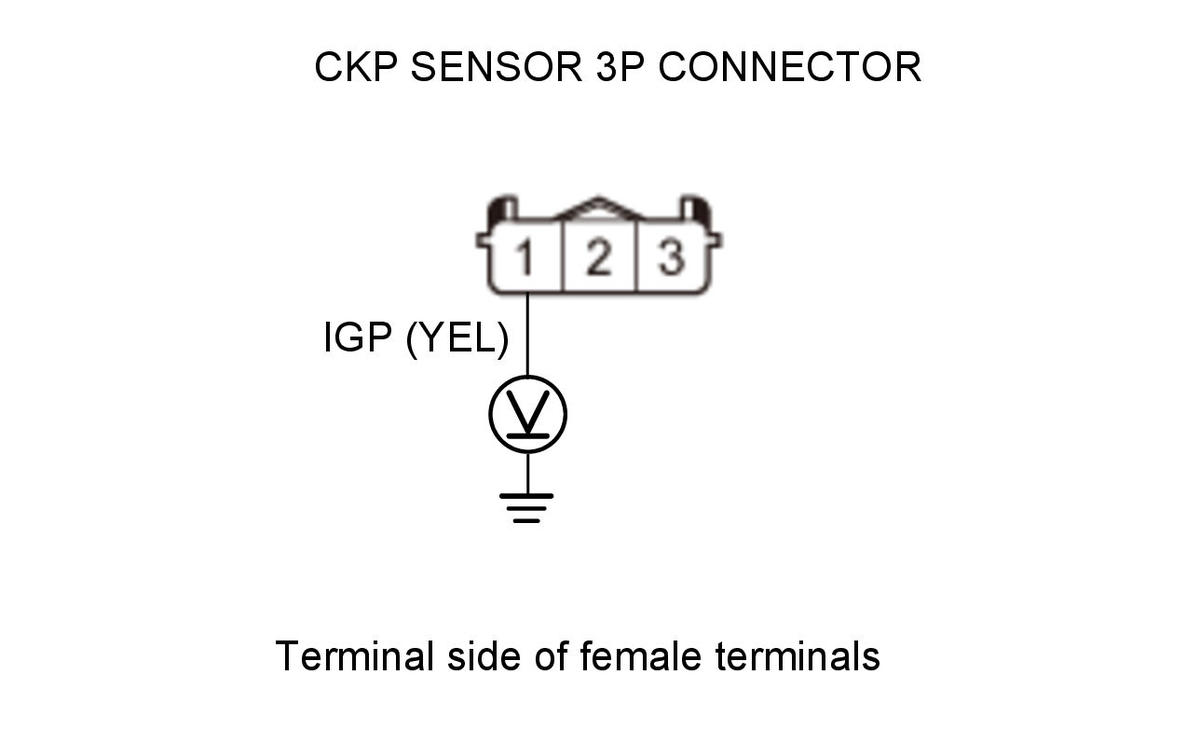

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	CKP sensor 3P connector: disconnected
   Test circuit	IGP
   Test point 1	CKP sensor 3P connector No. 1 (YEL)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The IGP/FI MAIN RLY OUT wire is OK. Go to step 3.

   NO

   Repair an open in the IGP/FI MAIN RLY OUT wire between the CKP sensor and PGM-FI main relay 1, then do the repair verification.

3. Determine possible failure area (CRK line, CRK LG/LG line)

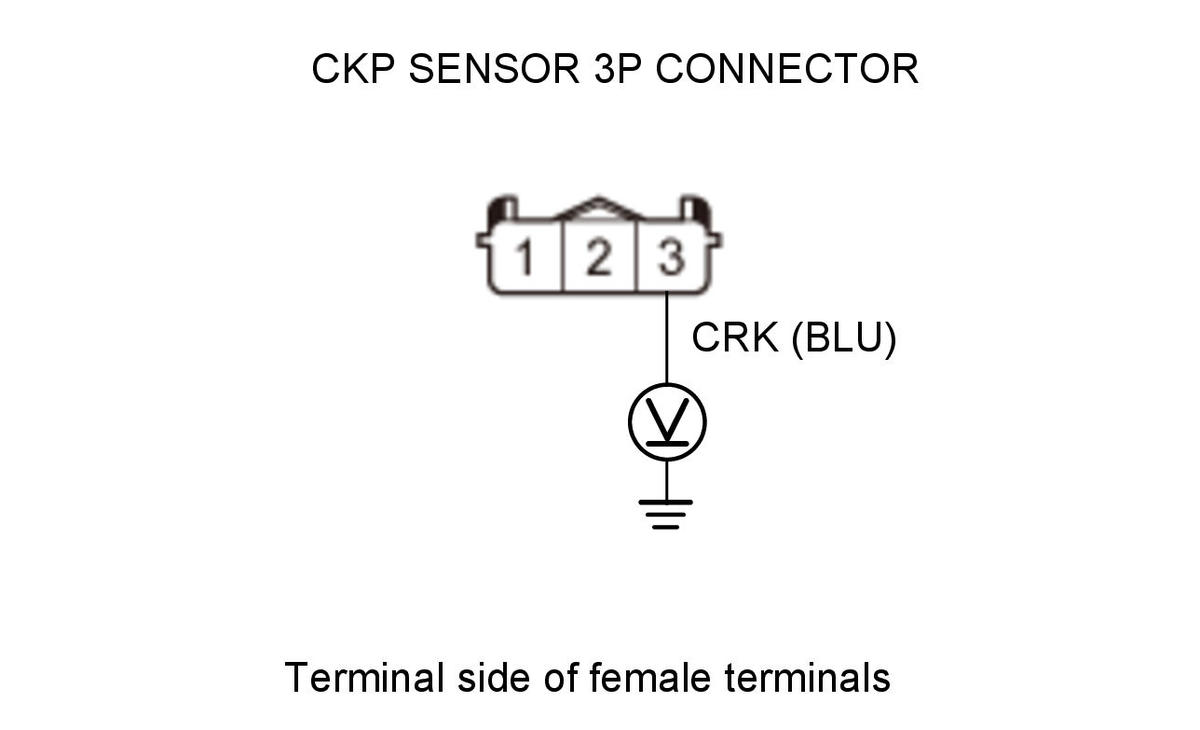

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	CKP sensor 3P connector: disconnected
   Test circuit	CRK
   Test point 1	CKP sensor 3P connector No. 3 (BLU)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5.0 V?

   YES

   Go to step 4.

   NO

   Go to step 5.

4. Open wire check (CRK LG/LG line)

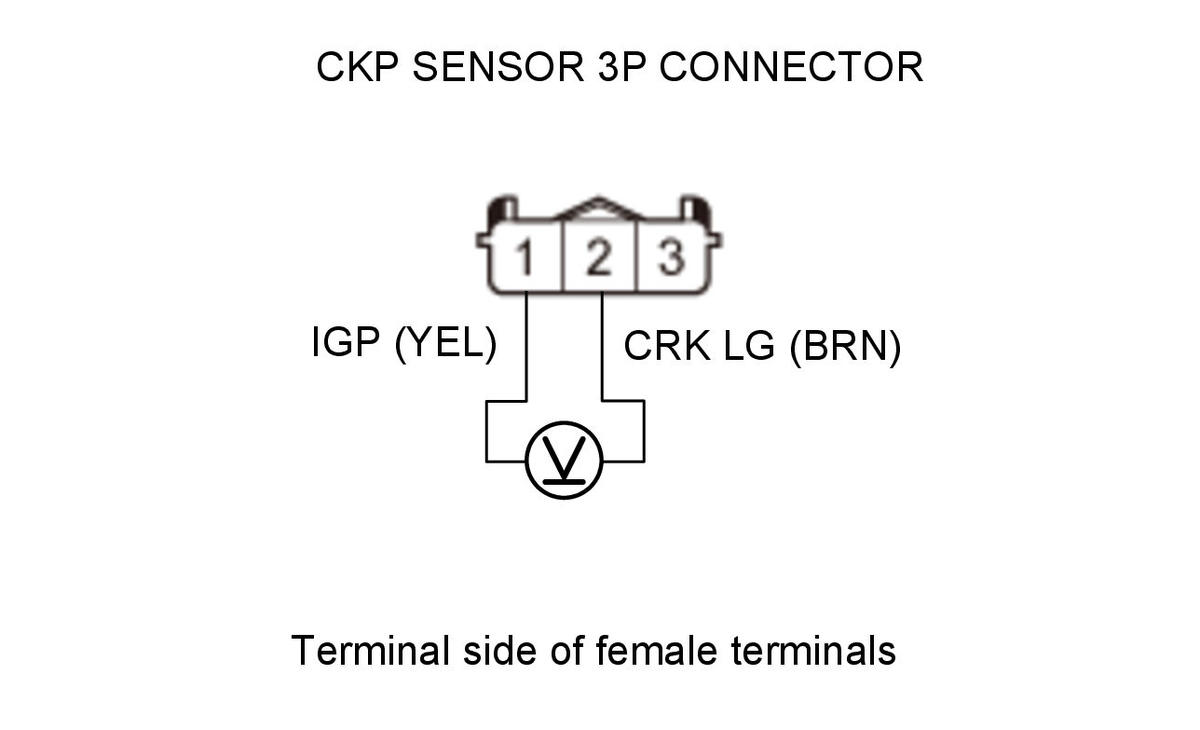

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	CKP sensor 3P connector: disconnected
   Test circuit	IGP, CRK LG
   Test point 1	CKP sensor 3P connector No. 1 (YEL)
   Test point 2	CKP sensor 3P connector No. 2 (BRN)

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The CRK LG/LG wire is OK. Replace the CKP sensor , then do the repair verification.

   NO

   Repair an open in the CRK LG/LG wire between the CKP sensor and G101, then do the repair verification.

5. Shorted wire check (CRK line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS.

   -3. Disconnect the following connector.

   PCM connector C (51P)

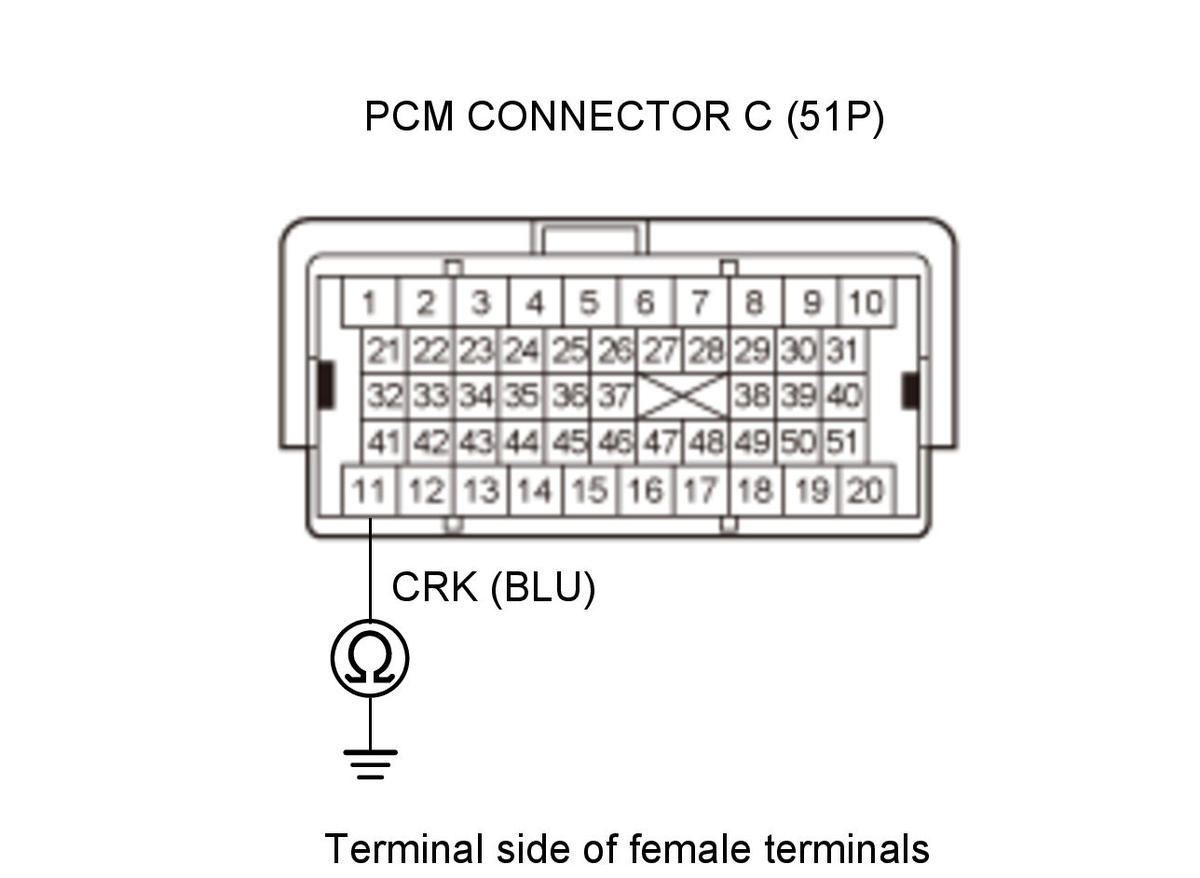

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	CKP sensor 3P connector: disconnected
   	PCM connector C (51P): disconnected
   Test circuit	CRK
   Test point 1	PCM connector C (51P) No. 11 (BLU)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the CRK wire between the PCM (C11) and the CKP sensor, then do the repair verification.

   NO

   The CRK wire is not shorted. Go to step 6.

6. Open wire check (CRK line)

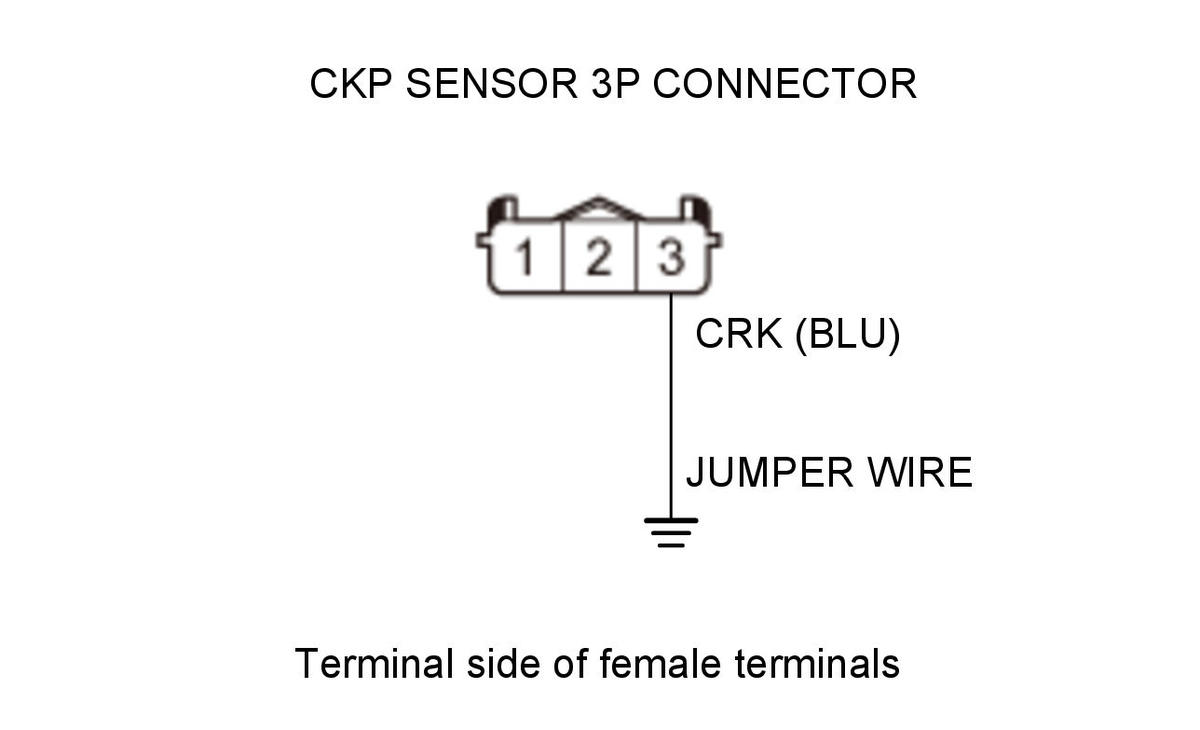

   -1. Connect terminals A and B with a jumper wire.

   Terminal A	CKP sensor 3P connector No. 3 (BLU)
   Terminal B	Body ground

   Courtesy of HONDA, U.S.A., INC.

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	CKP sensor 3P connector: disconnected
   	CKP sensor 3P connector No. 3: jumped to body ground
   	PCM connector C (51P): disconnected
   Test circuit	CRK
   Test point 1	PCM connector C (51P) No. 11 (BLU)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The CRK wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then do the repair verification.

   NO

   Repair an open in the CRK wire between the PCM (C11) and the CKP sensor, then do the repair verification.

7. Repair verification

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Reconnect all connectors.

   -3. Exit the SCS mode with the HDS.

   -4. Turn the vehicle to the ON mode.

   -5. Reset the PCM with the HDS .

   Reset PCM

   -6. Do the CKP pattern clear procedure .

   CRANK PATTERN CLEAR

   Do the PCM idle learn procedure .

   -8. Do the CKP pattern learn procedure .

   CRANK PATTERN LEARNING

   Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0335 CKP Sensor No Signal

   DTC (PGM-FI)

   Is DTC P0335 indicated?

   YES

   Check for poor connections or loose terminals at the CKP sensor and the PCM. If the PCM was updated, substitute a known-good PCM , then recheck. If the PCM was substituted, go to step 1.

   NO

   Troubleshooting is complete. If the PCM was substituted, replace the original PCM . If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.
