Rear Rocker Arm Oil Control Valve Removal and Installation: Removal

  1. Rear Rocker Arm Assembly - Remove

    Remove the rear rocker arm assembly .

  2. Rear Rocker Arm Oil Control Valve - Remove

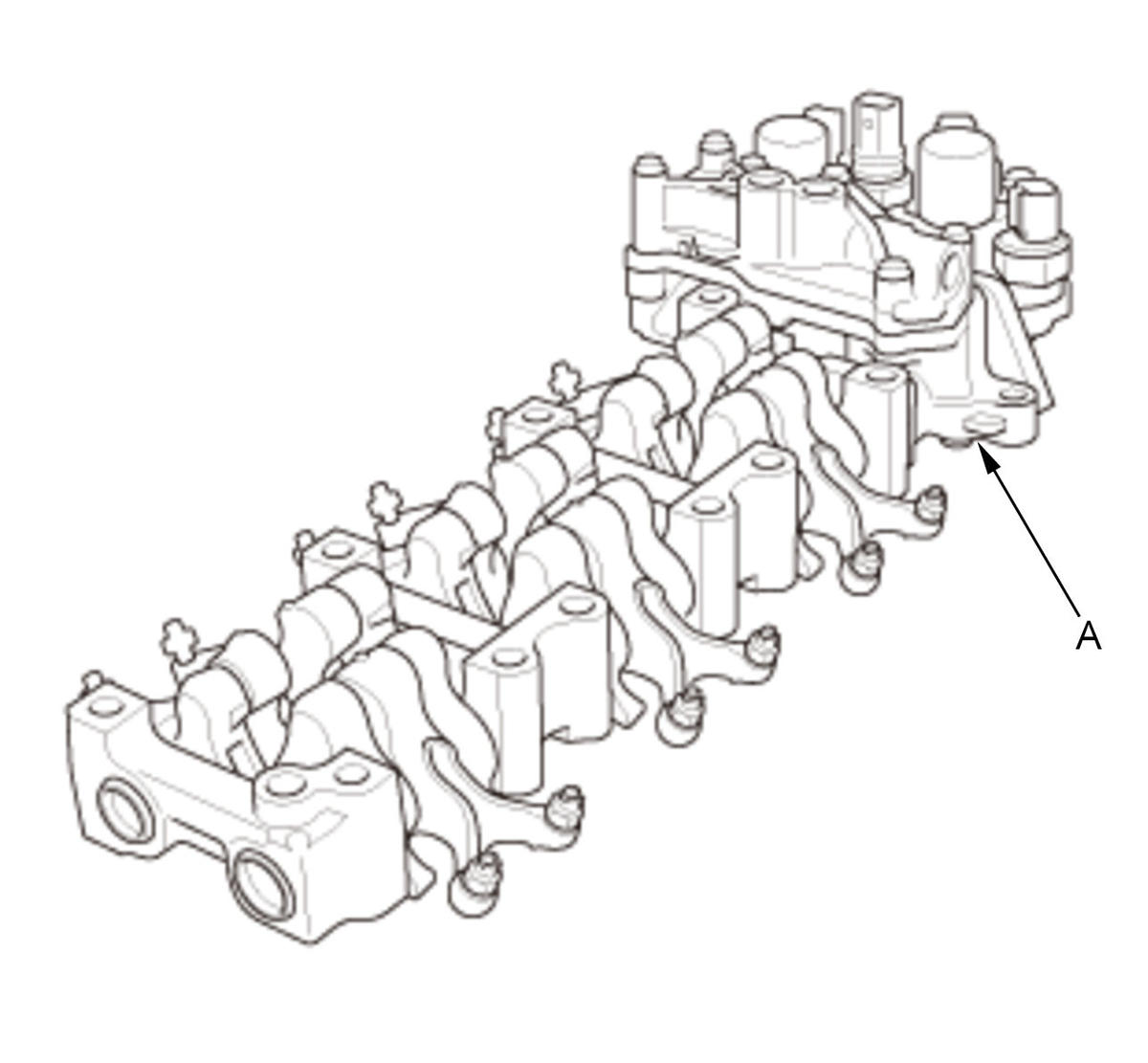

    GHH346129Courtesy of HONDA, U.S.A., INC.

    Remove the rear rocker arm oil control valve (A).
