MAP Sensor Removal And Installation: Removal

  1. Engine Cover - Remove

    Remove the engine cover .

  2. MAP Sensor - Remove

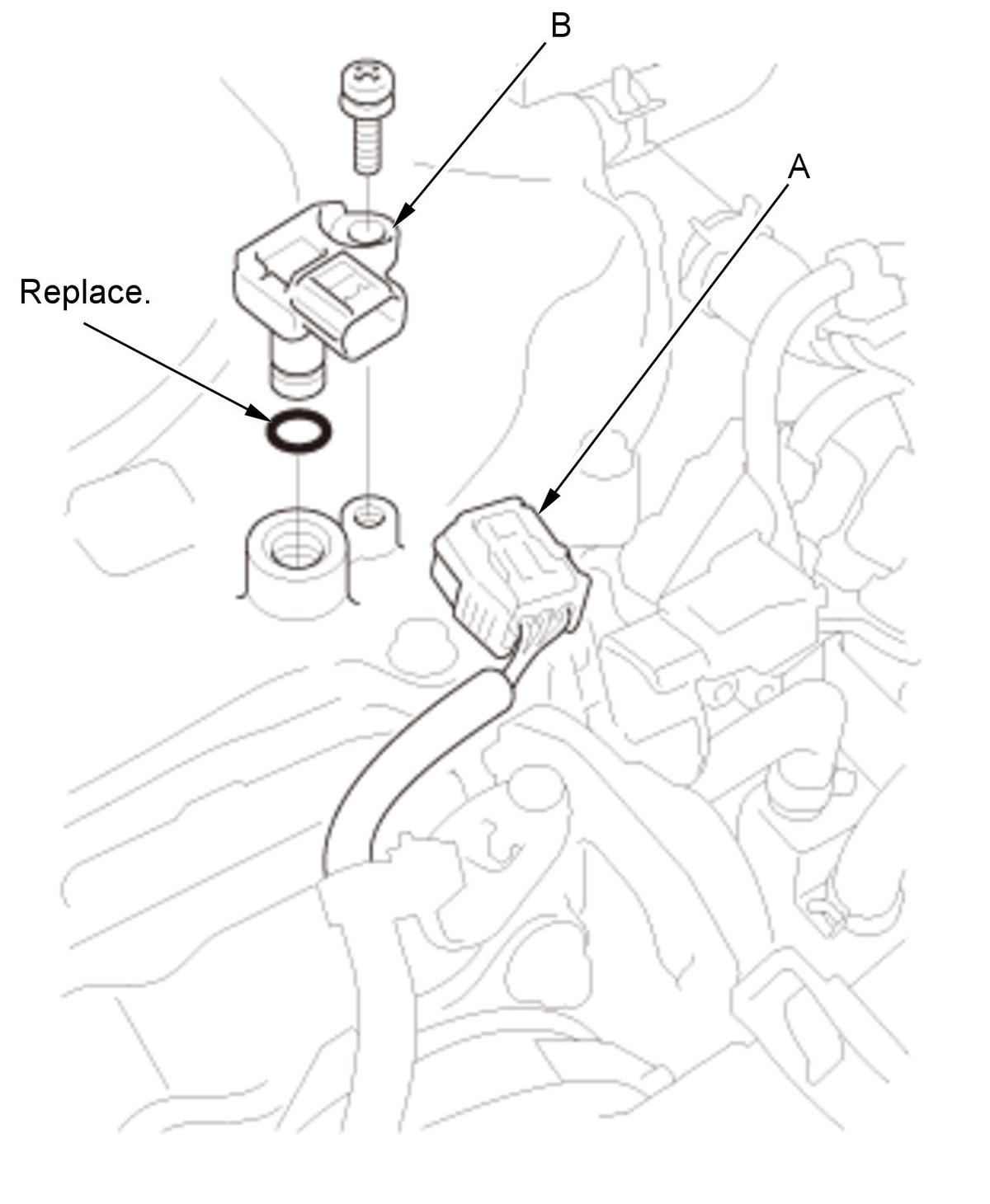

    GHH346064Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the MAP sensor connector (A).

    2. Remove the MAP sensor (B).
