Knock Sensor Removal And Installation: Installation

Front Bank (Bank 2)

1. Knock Sensor 2 (Bank 2) - Install

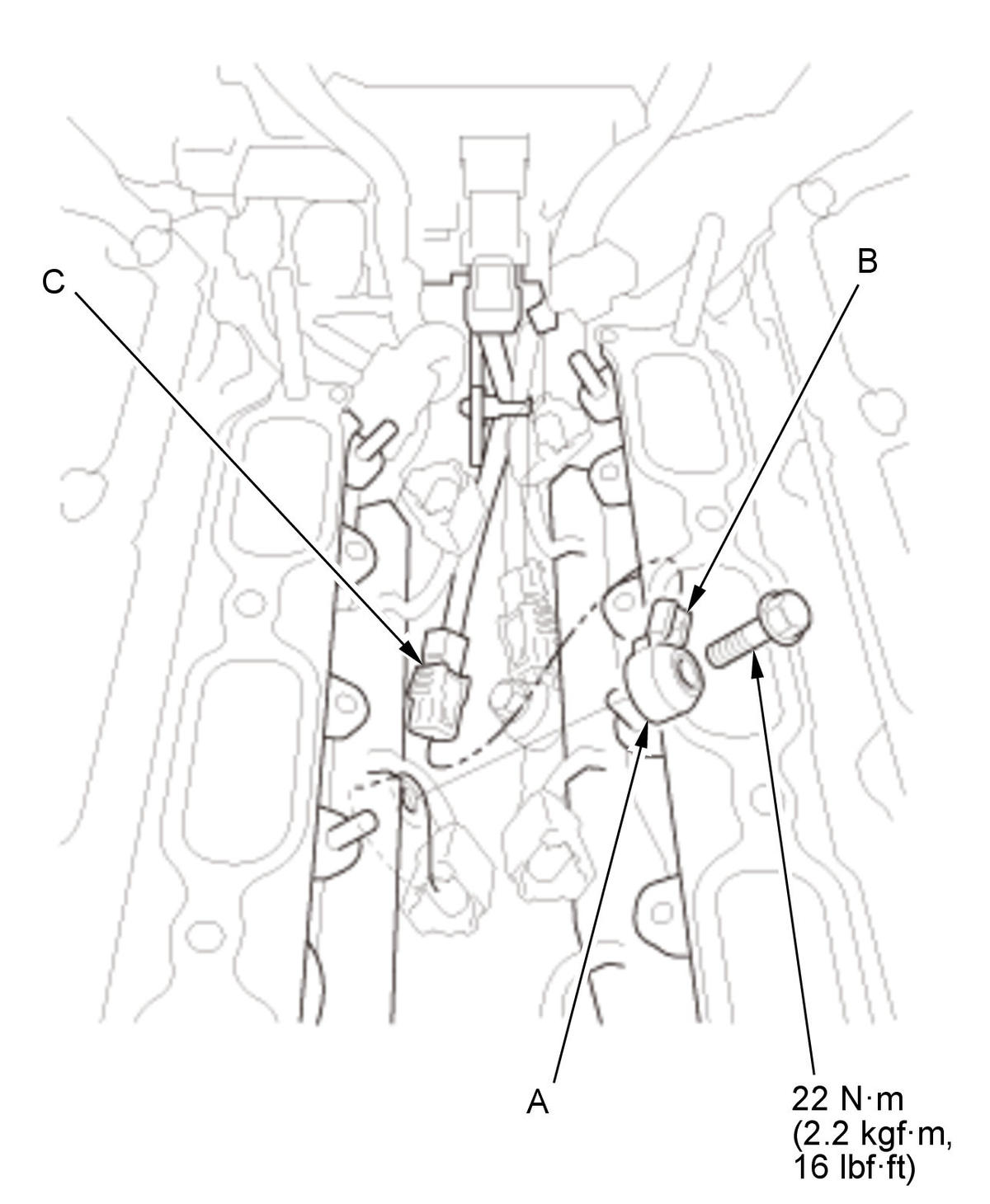

   Fig 1: Knock Sensor 2 (Bank 2) With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install knock sensor 2 (Bank 2) (A). NOTE:  When installing knock sensor 2 (Bank 2), make sure the direction of the sensor connector (B) is as shown. 2. Connect the knock sensor 2 (Bank 2) connector (C).

   Rear Bank (Bank 1)

2. Knock Sensor 1 (Bank 1) - Install

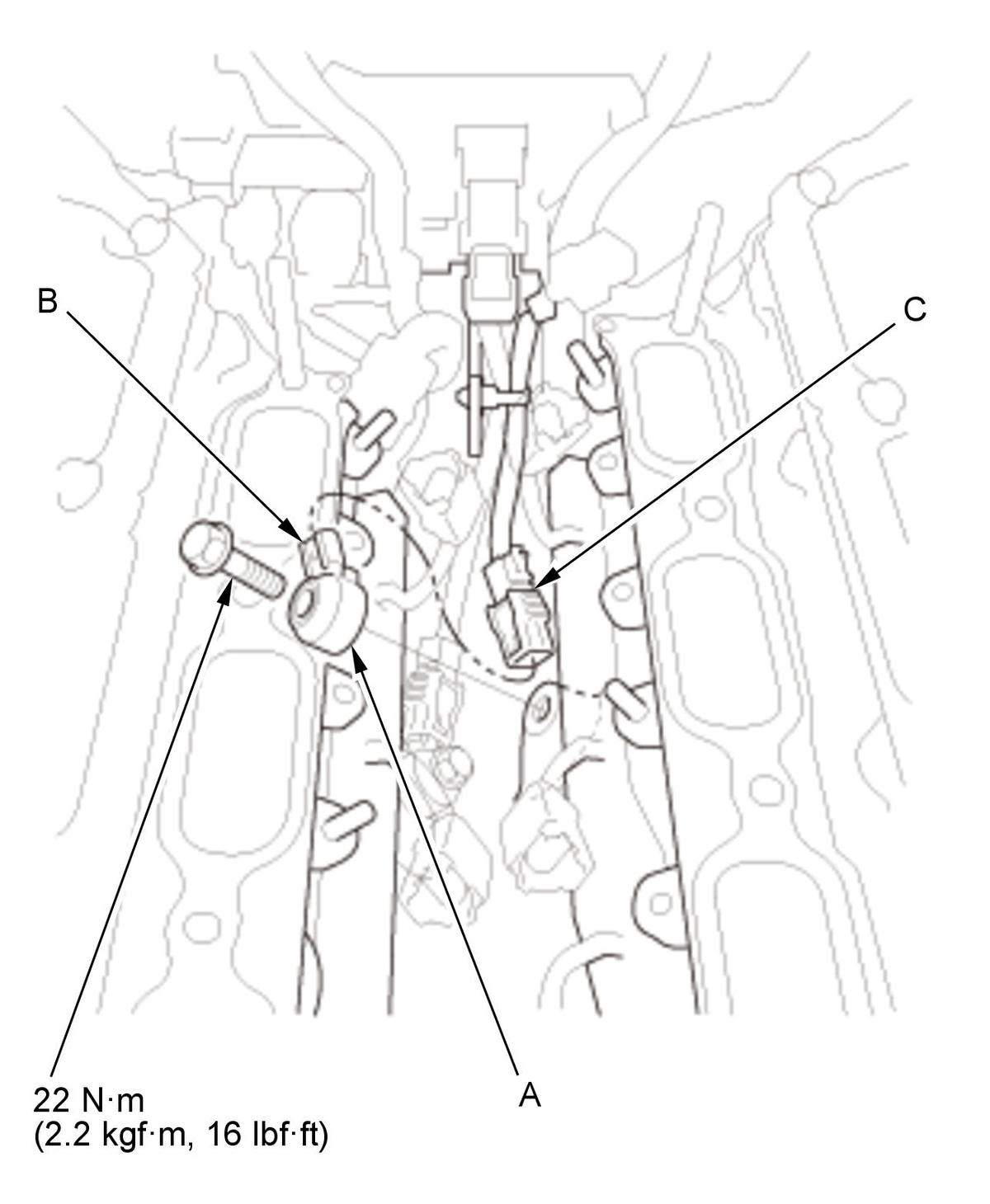

   Fig 2: Knock Sensor 1 (Bank 1) With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install knock sensor 1 (Bank 1) (A). NOTE:  When installing knock sensor 1 (Bank 1), make sure the direction of the sensor connector (B) is as shown. 2. Connect the knock sensor 1 (Bank 1) connector (C).

3. Fuel Rail - Install

   Install the fuel rails .

4. Intake Manifold Base and Intake Manifold - Install

   Install the intake manifold base and the intake manifold .
