FTP Sensor Removal And Installation: Removal

  1. EVAP Canister - Remove

    Remove the EVAP canister .

  2. FTP Senor - Remove

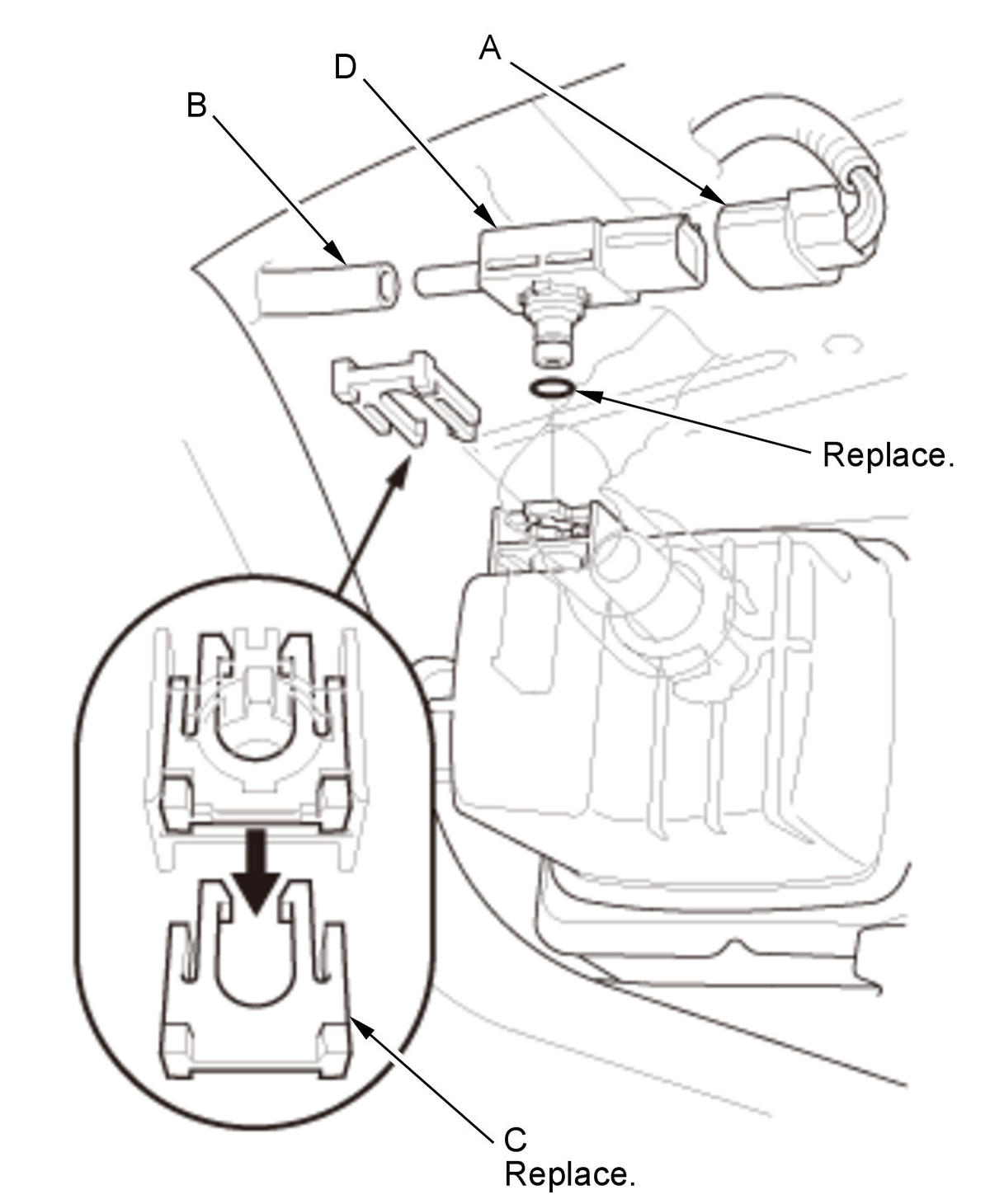

    GHH346017Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the FTP sensor connector (A) and the hose (B).

    2. Remove the retainer (C) and the FTP sensor (D).
