ECT Sensor 2 Removal And Installation: Removal

  1. Engine Coolant - Drain

    Drain the engine coolant .

  2. Engine Undercover - Remove

    Remove the engine undercover .

  3. ECT Sensor 2 - Remove

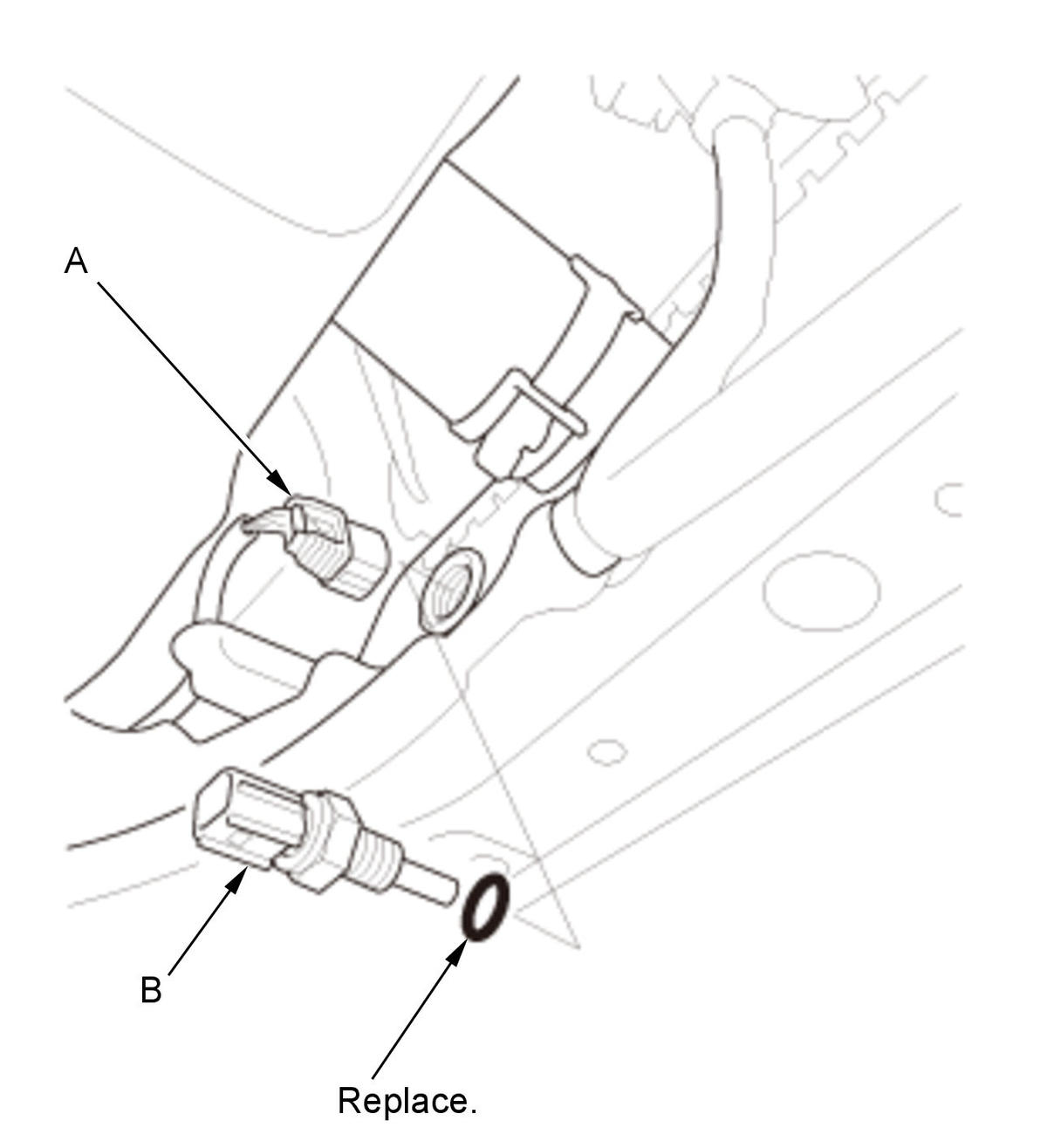

    GHH345860Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the ECT sensor 2 connector (A).

    2. Remove ECT sensor 2 (B).
