ECT Sensor 2 Removal And Installation: Installation

ECT Sensor 2 - Install

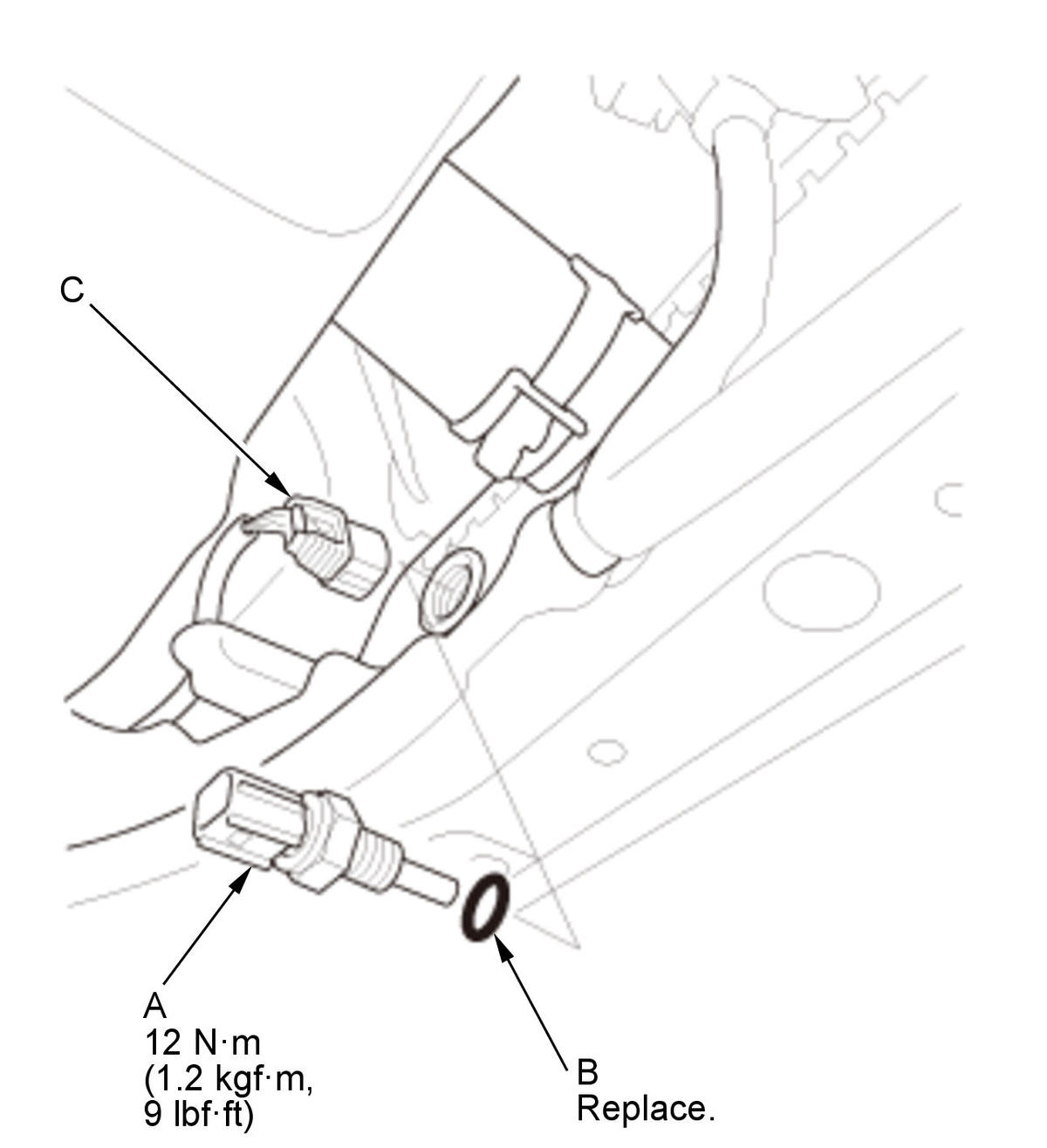

Fig 1: ECT Sensor 2 With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Install ECT sensor 2 (A) with a new O-ring (B).
2. Connect the ECT sensor 2 connector (C).
Engine Undercover - Install
Install the engine undercover .
Engine Coolant - Refill
Refill the radiator with engine coolant .
