ECT Sensor 1 Removal And Installation: Removal

  1. Engine Cover - Remove

    Remove the engine cover .

  2. Engine Coolant - Drain

    Drain the engine coolant .

  3. ECT Sensor 1 - Remove

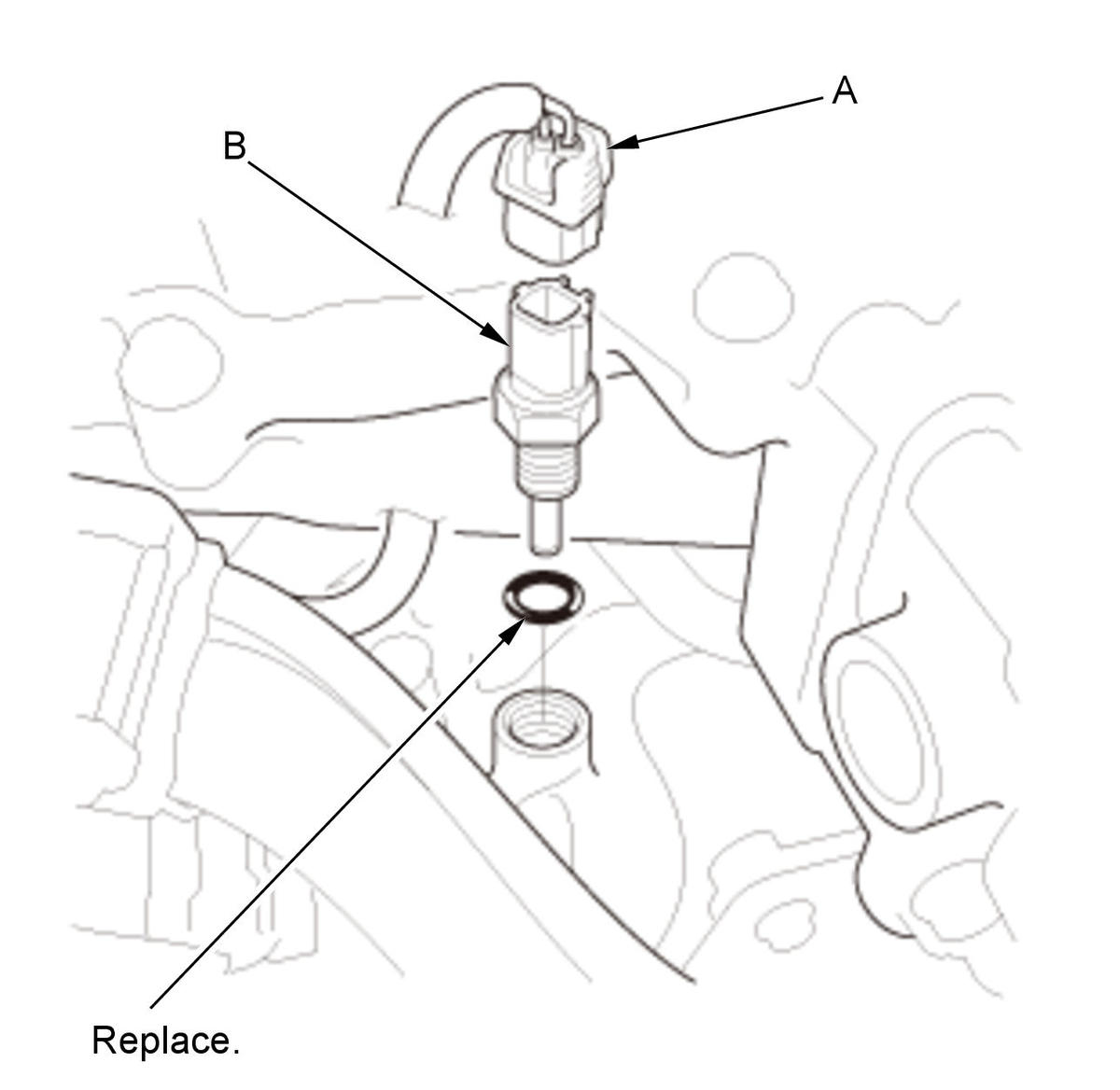

    GHH345858Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the ECT sensor 1 connector (A).

    2. Remove ECT sensor 1 (B).
