ECT Sensor 1 Removal And Installation: Installation

ECT Sensor 1 - Install

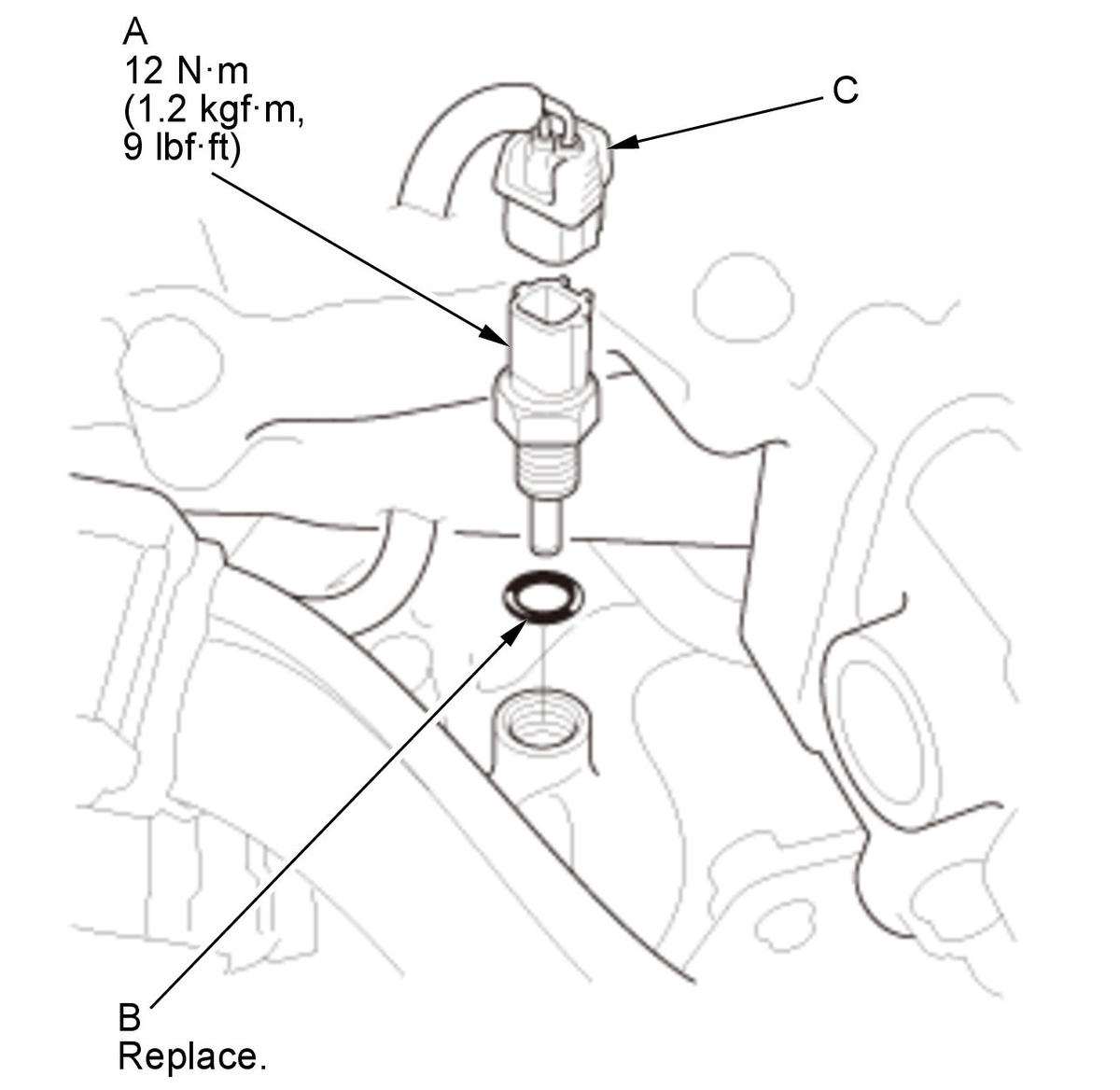

Fig 1: ECT Sensor 1 With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Install ECT sensor 1 (A) with a new O-ring (B).
2. Connect the ECT sensor 1 connector (C).
Engine Coolant - Refill
Refill the radiator with engine coolant .
Engine Cover - Install
Install the engine cover .
