CMP Sensor Removal And Installation: Removal

  1. Timing Belt - Remove

    Remove the timing belt .

  2. Front Camshaft Pulley (CMP Sensor Pulse Plate) and Back Cover - Remove

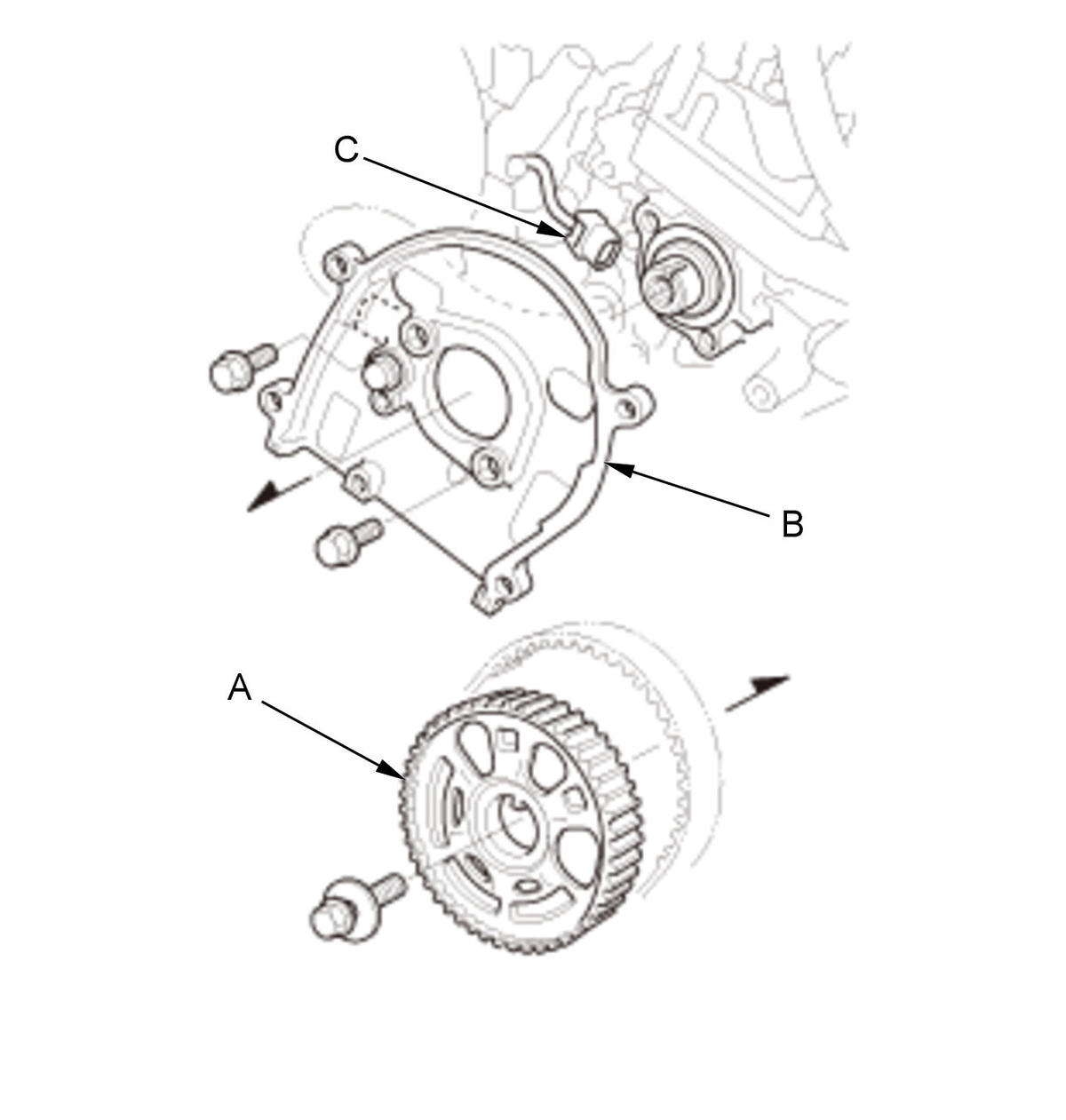

    GHH345821Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the front camshaft pulley (CMP sensor pulse plate) (A).

    2. Remove the back cover (B), then disconnect the CMP sensor connector (C).
  3. CMP Sensor - Remove

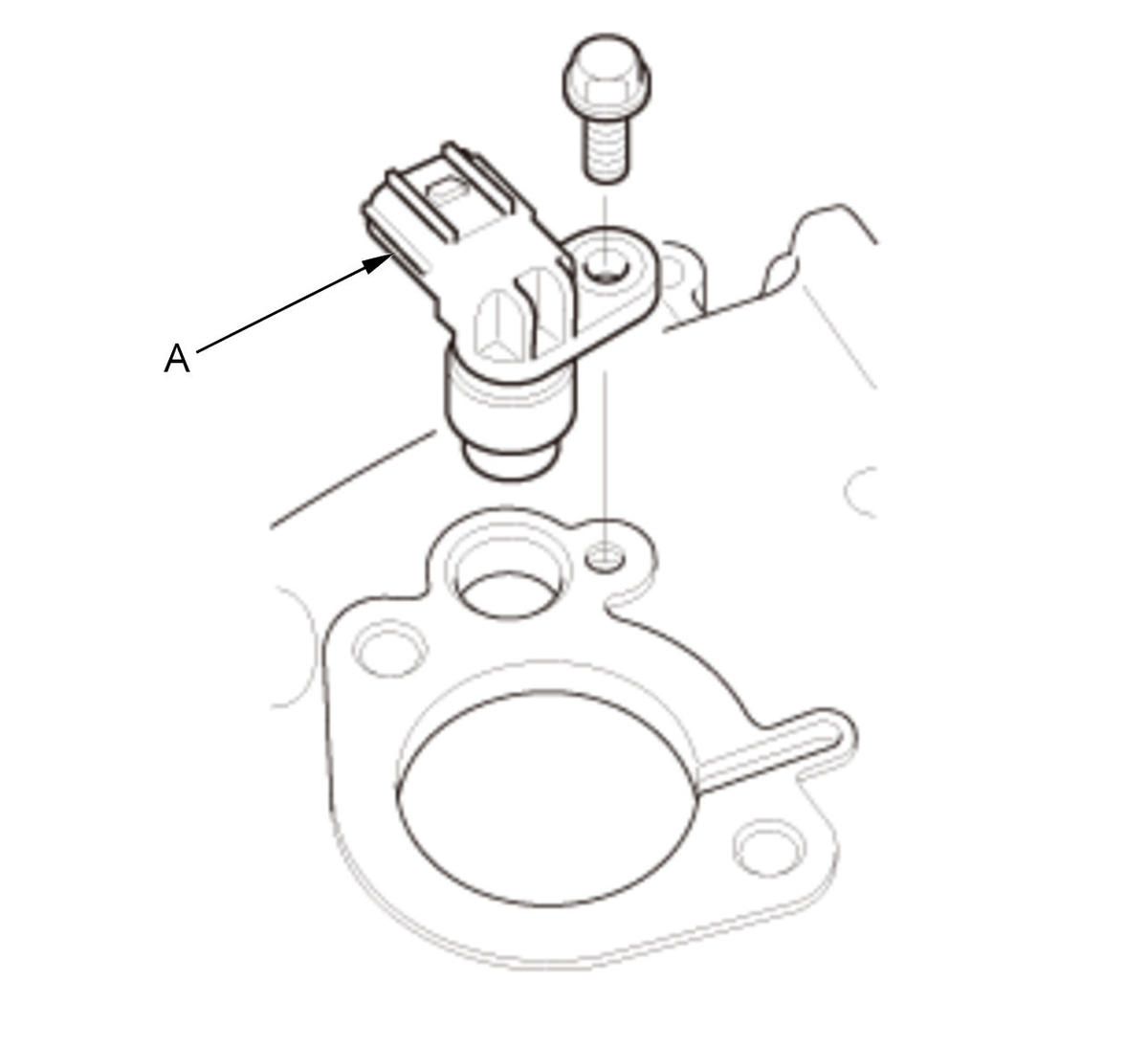

    GHH345822Courtesy of HONDA, U.S.A., INC.

    Remove the CMP sensor (A) from the back cover.
