CKP Sensor Removal And Installation: Installation

CKP Sensor - Install

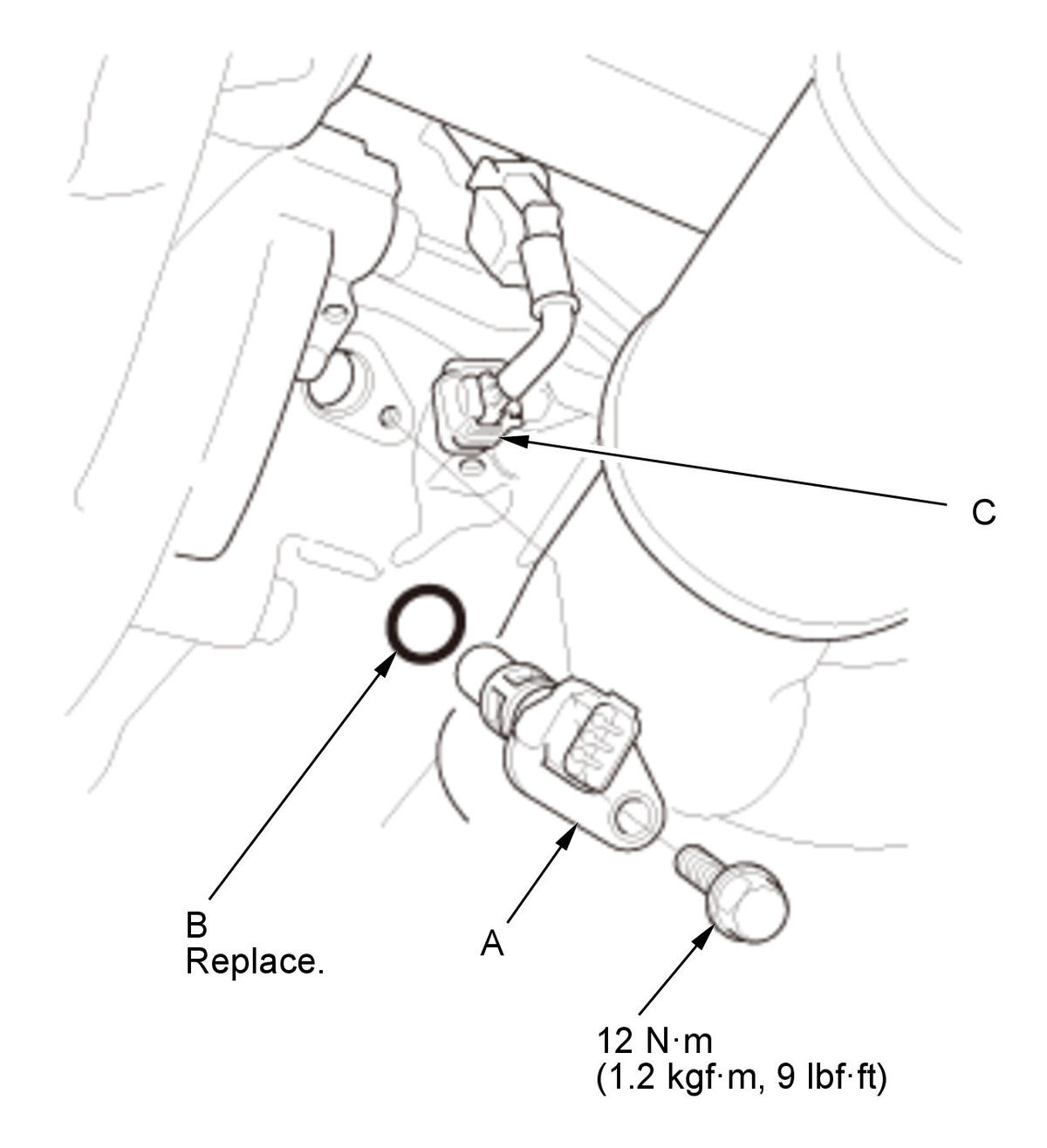

Fig 1: CKP Sensor With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Install the CKP sensor (A) with a new O-ring (B).
2. Connect the CKP sensor connector (C).
CKP Sensor Cover - Install

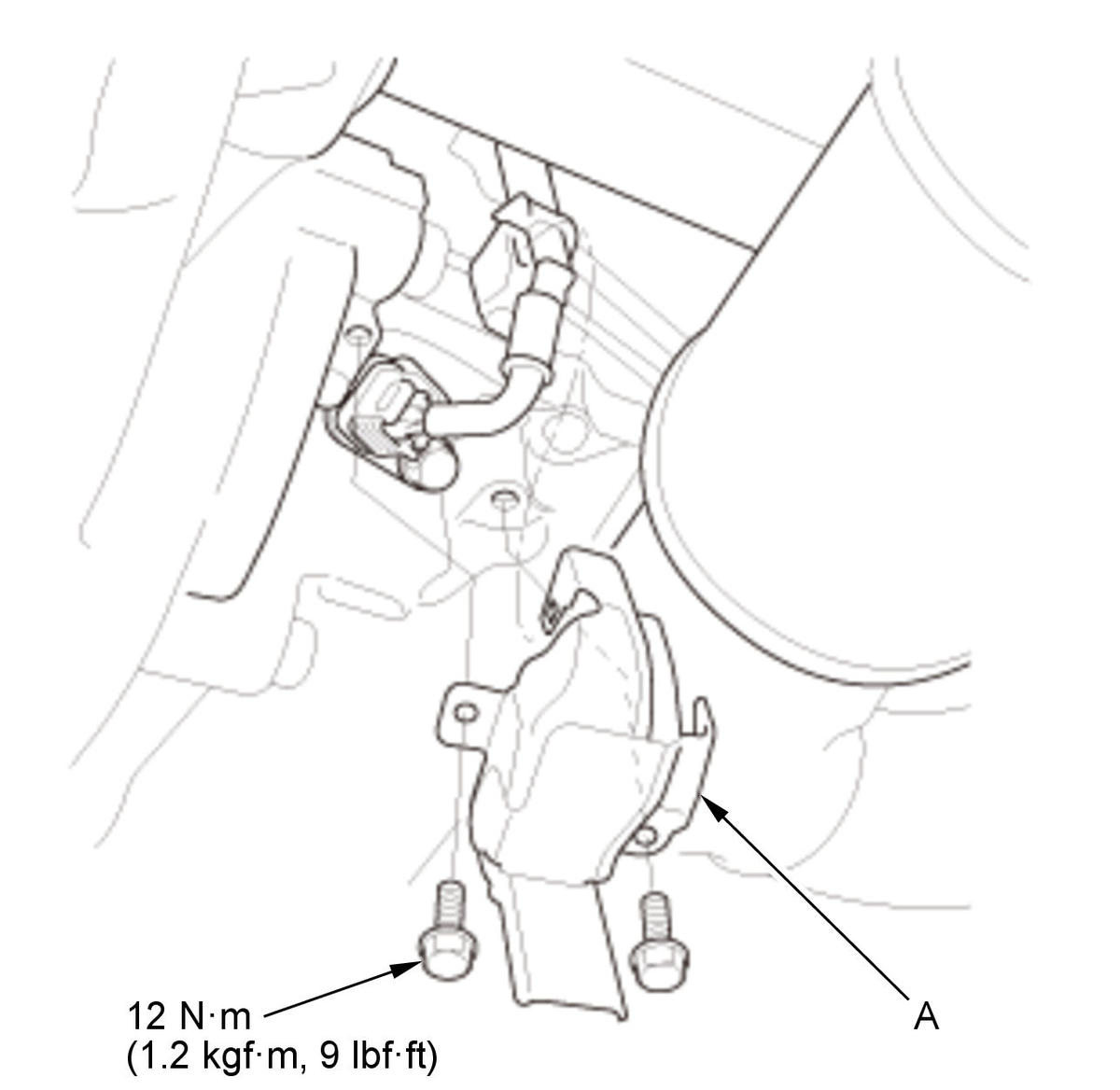

Fig 2: CKP Sensor Cover With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

Install the CKP sensor cover (A).
CKP Pattern - Clear/Learn
Do the CKP pattern clear/CKP pattern learn procedure .
