Exploded View

  1. Alternator

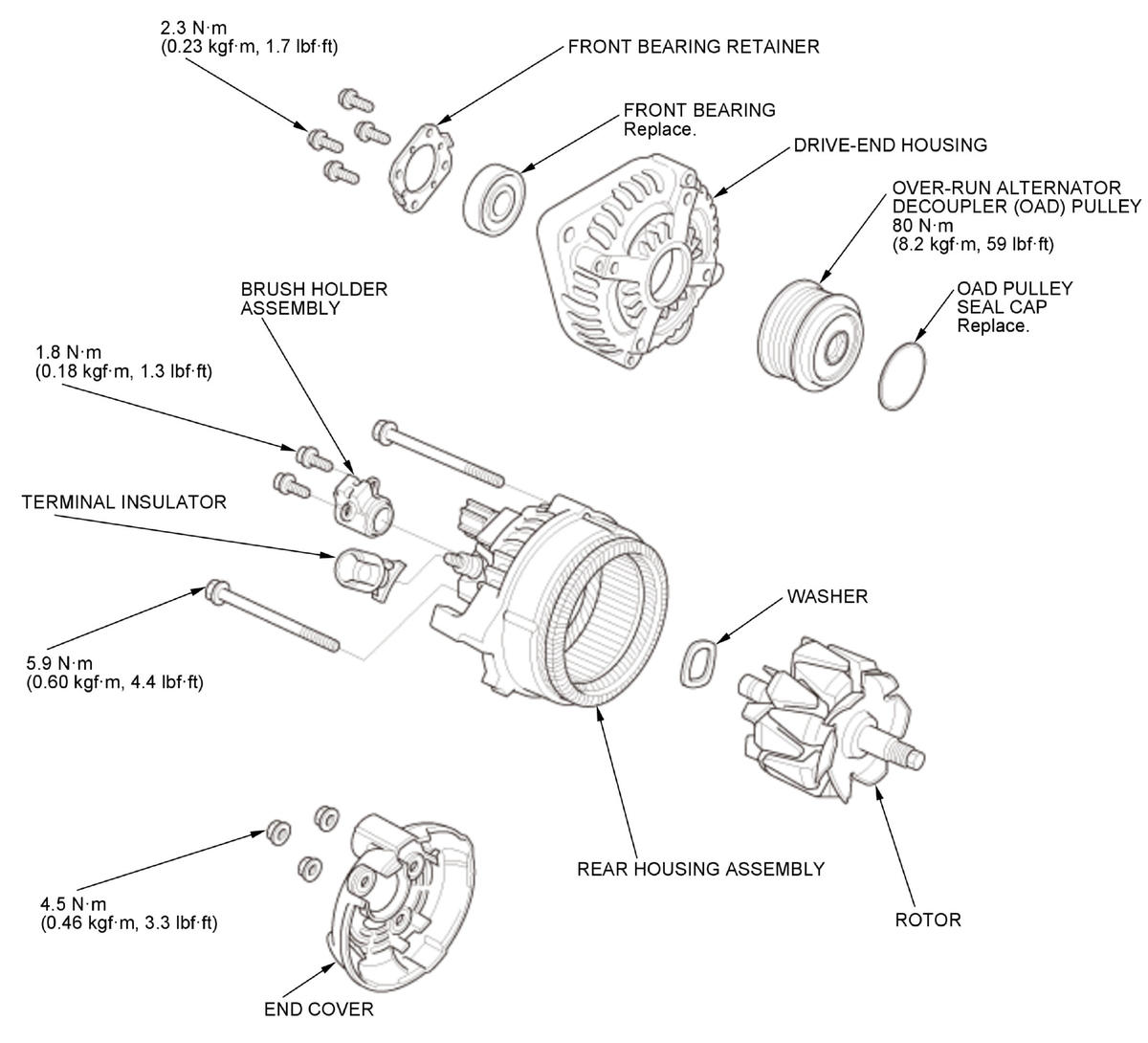

    Fig 1: Alternator With Torque Specifications
    GHH342804Courtesy of HONDA, U.S.A., INC.
