EPS Control Unit Connector For Inputs And Outputs (With Auto Idle Stop System) (2015-17)
EPS Control Unit Connector for inputs and Outputs
| Connector Index | ||
|---|---|---|
| EPS Control Unit Connector A (11P) | ||
| EPS Control Unit Connector B (16P) |

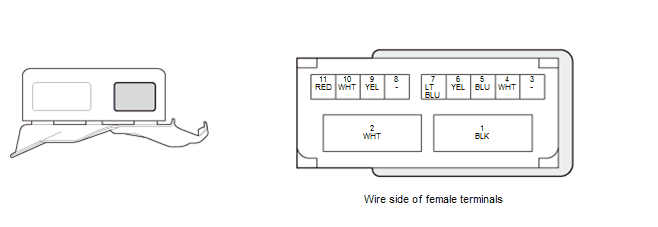

EPS Control Unit Inputs and Outputs for Connector A (11P)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | GND | Ground for the EPS control unit |
| 2 | +B EPS | Power source for the actuator EPS motor |
| 3 | Not used | - - - |
| 4 | EPSTOLKAS | - - - |
| 5 | LKASTOEPS | - - - |
| 6 | NEP | Detects engine speed signal |
| 7 | K-LINE | Communicates with HDS |
| 8 | Not used | - - - |
| 9 | IG1 VSA (DC) | Power source for activating the system |
| 10 | F-CAN A_H | F-CAN communication circuit |
| 11 | F-CAN A_L | F-CAN communication circuit |

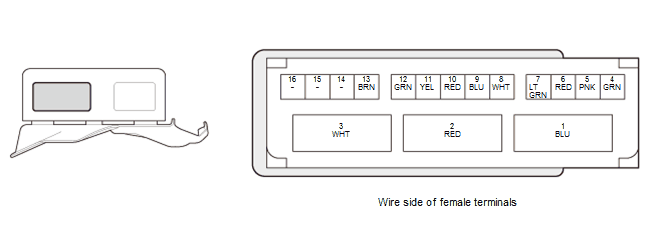

EPS Control Unit Inputs and Outputs for Connector B (16P)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | MTR V | Drive the EPS motor |
| 2 | MTR U | Drive the EPS motor |
| 3 | MTR W | Drive the EPS motor |
| 4 | VS1 | Detects torque sensor signal |
| 5 | TS-GND | Ground for the torque sensor |
| 6 | VS2 | Detects torque sensor signal |
| 7 | TS-VDD | Power source for torque sensor |
| 8 | RESOLVER S4 | Detects EPS motor angle sensor signal |
| 9 | RESOLVER S3 | Detects EPS motor angle sensor signal |
| 10 | RESOLVER S2 | Detects EPS motor angle sensor signal |
| 11 | RESOLVER S1 | Detects EPS motor angle sensor signal |
| 12 | RESOLVER R2 | Detects EPS motor angle sensor signal |
| 13 | RESOLVER R1 | Detects EPS motor angle sensor signal |
| 14 | Not used | - - - |
| 15 | Not used | - - - |
| 16 | Not used | - - - |
