Driving Position Memory System (DPMS) Component Location Index

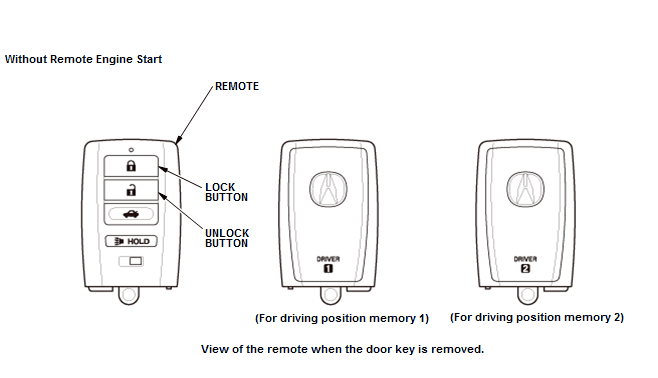

GHH162566Courtesy of HONDA, U.S.A., INC.

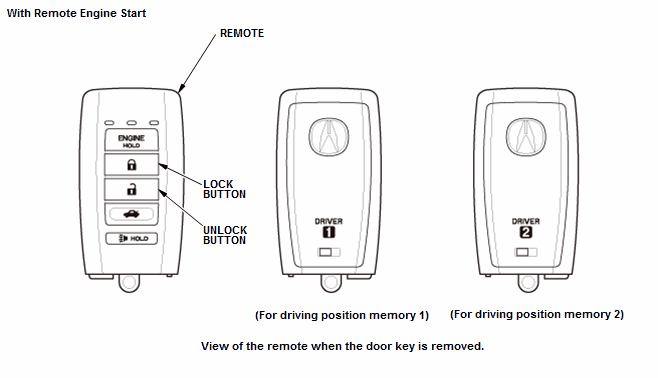

GHH162567Courtesy of HONDA, U.S.A., INC.

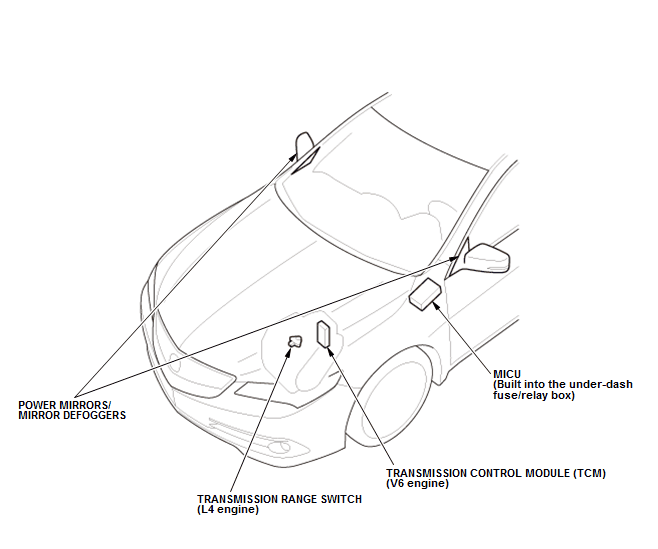

GHH162568Courtesy of HONDA, U.S.A., INC.

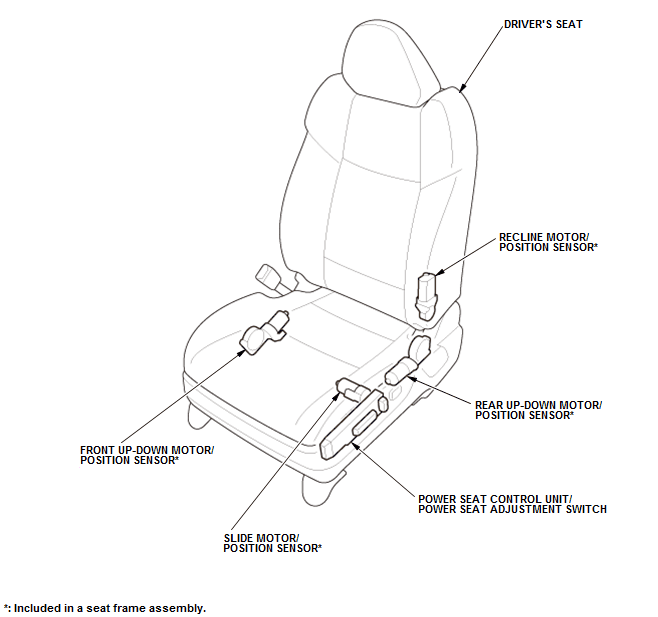

GHH162569Courtesy of HONDA, U.S.A., INC.

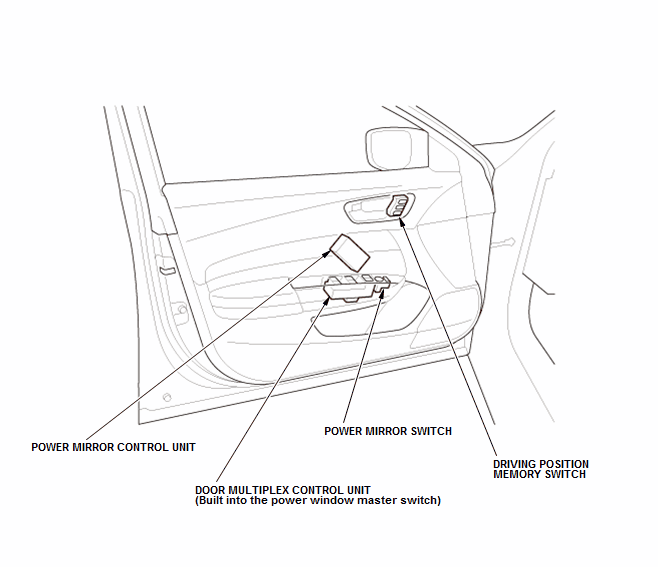

GHH162570Courtesy of HONDA, U.S.A., INC.
