Door Lock Actuator Test: Test

Front Door

1. Front Door Panel - Remove
2. Front Door Lock Actuator - Test

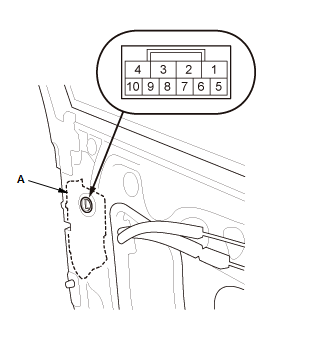

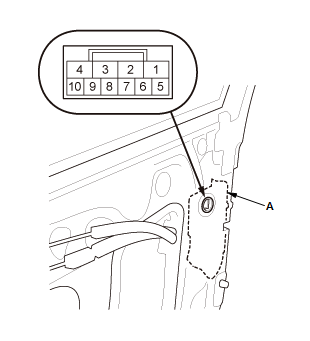

   Driver's door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Front passenger's door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Check the actuator operation by connecting power and ground according to the table. NOTE:  To prevent damage to the actuator, apply battery voltage only momentarily. 2. If the actuator does not operate as specified, the front door lock actuator is faulty; replace the front door latch (A).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

   Rear Door

4. Rear Door Panel - Remove
5. Rear Door Lock Actuator - Test

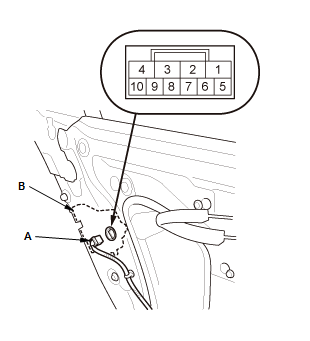

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Left and Right Rear Door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Disconnect the connector (A). 2. Check the actuator operation by connecting power and ground according to the table. NOTE:  To prevent damage to the actuator, apply battery voltage only momentarily. 3. If the actuator does not operate as specified, the rear door lock actuator is faulty; replace the rear door latch (B).

6. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
