Security System Keyless Entry System - Testing & Troubleshooting
>>
Description
>>

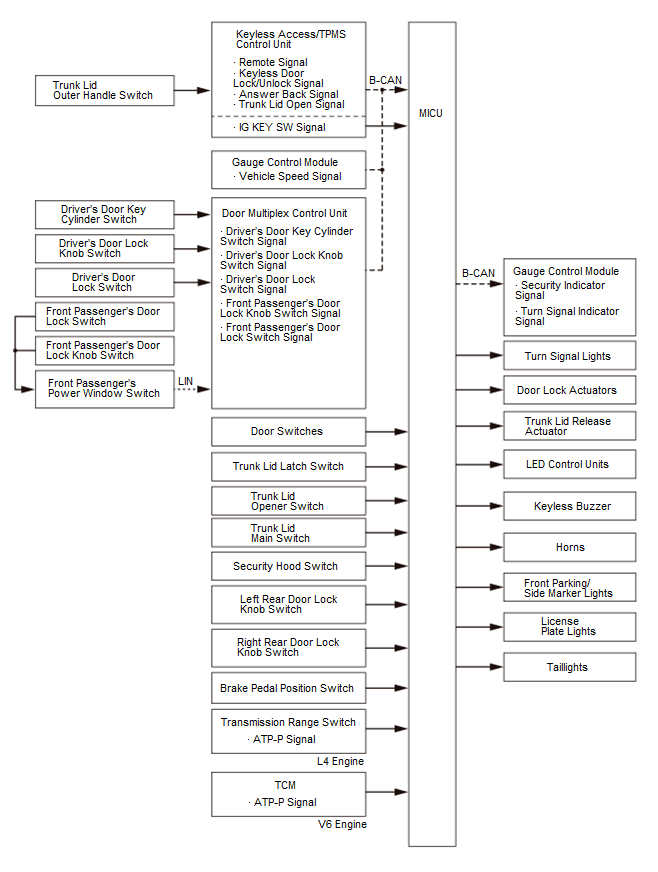

Keyless/Power Door Locks/Security System Description - System Diagram (2015-17)
Keyless/Power Door Locks/Security System Description - System Diagram (2015-17)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
