Security System Keyless Entry System - Testing & Troubleshooting
>>
Component Location Index
>>

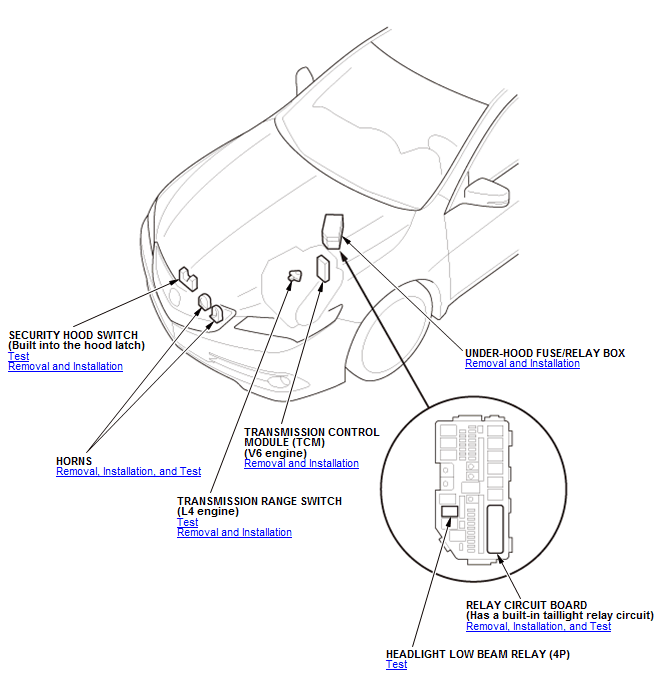

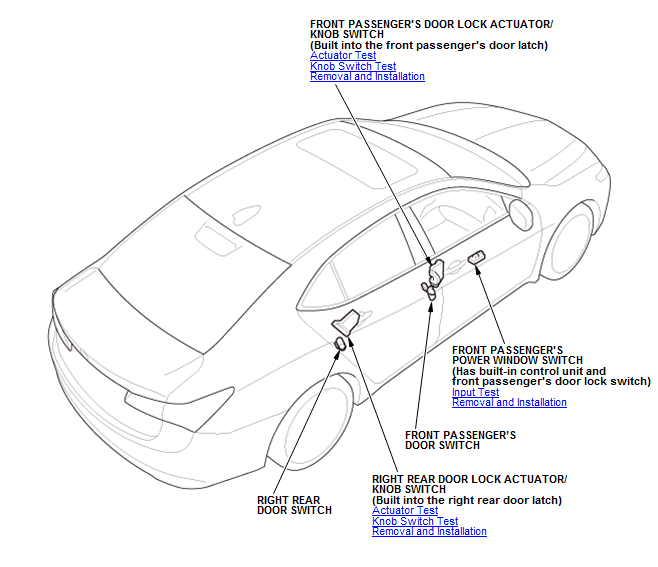

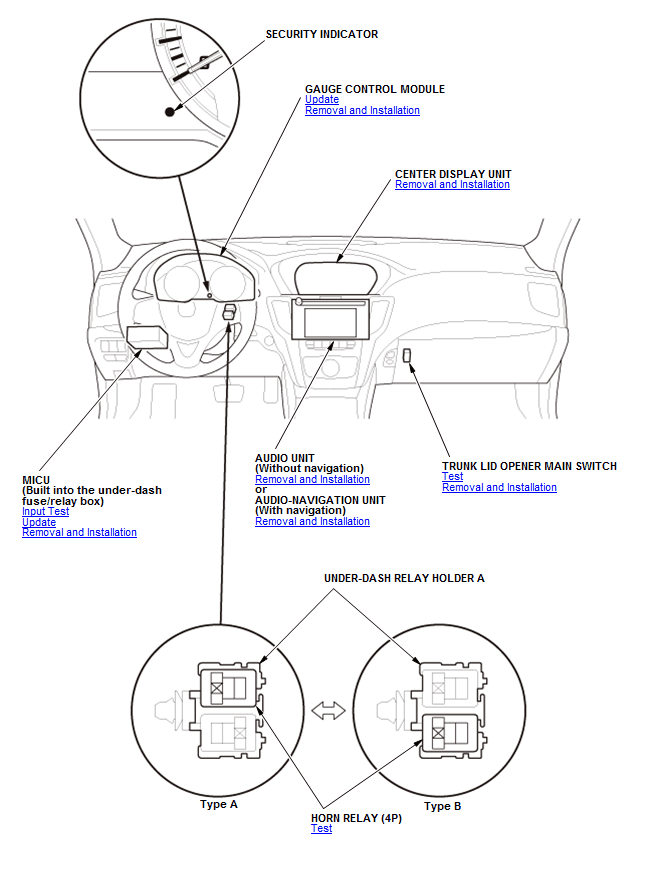

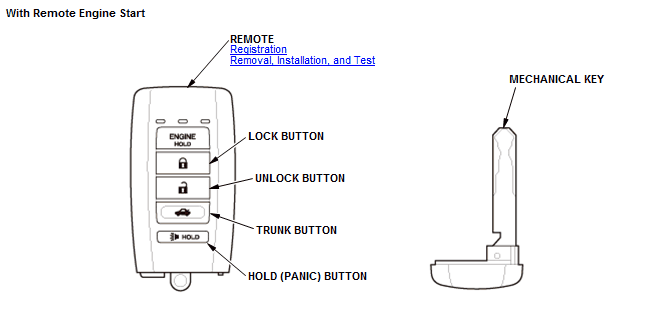

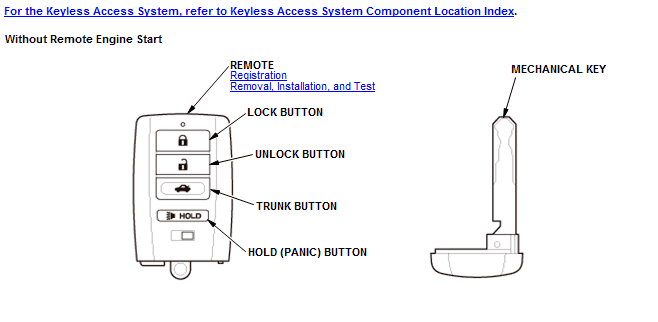

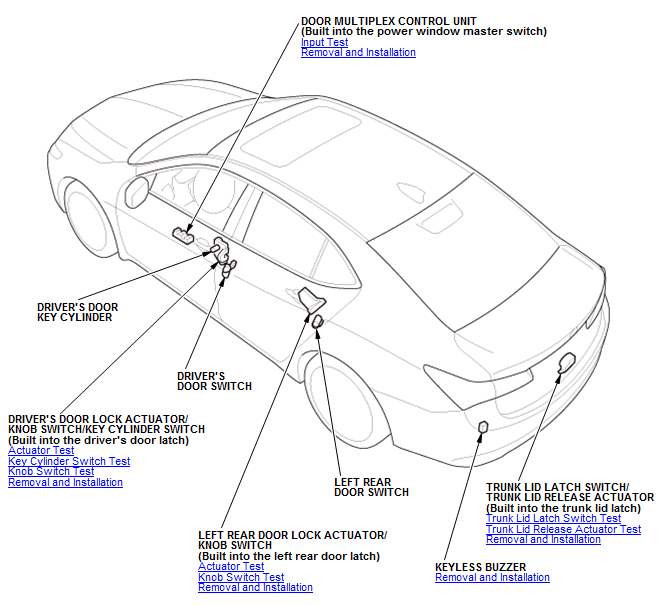

Keyless/Power Door Locks/Security System Component Location Index (DCT)
Keyless/Power Door Locks/Security System Component Location Index (DCT)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
