Keyless Access System Component Location Index

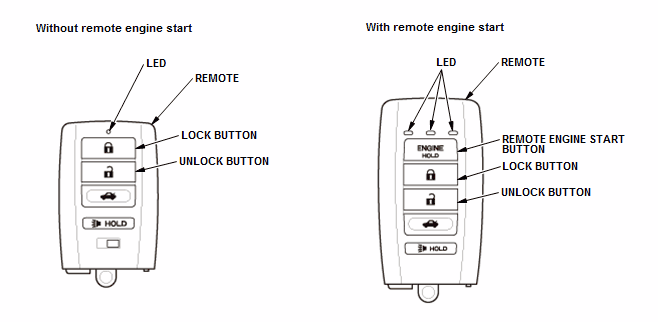

GHH163821Courtesy of HONDA, U.S.A., INC.

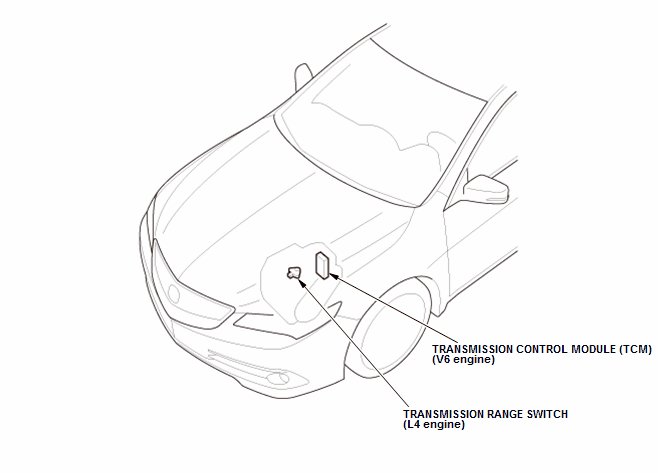

GHH163822Courtesy of HONDA, U.S.A., INC.

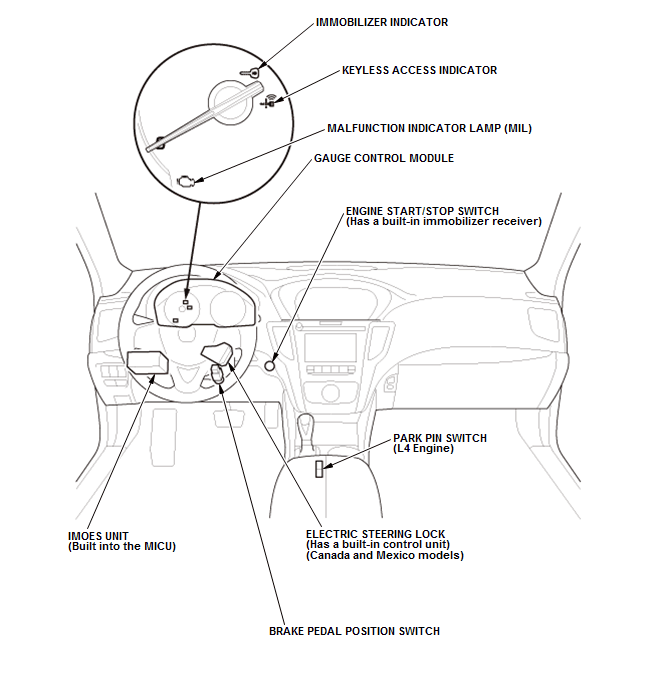

GHH163823Courtesy of HONDA, U.S.A., INC.

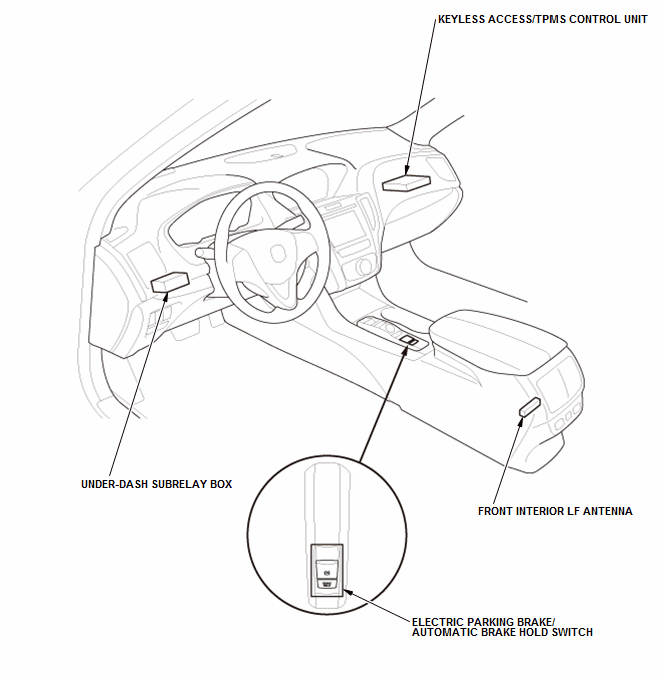

GHH163824Courtesy of HONDA, U.S.A., INC.

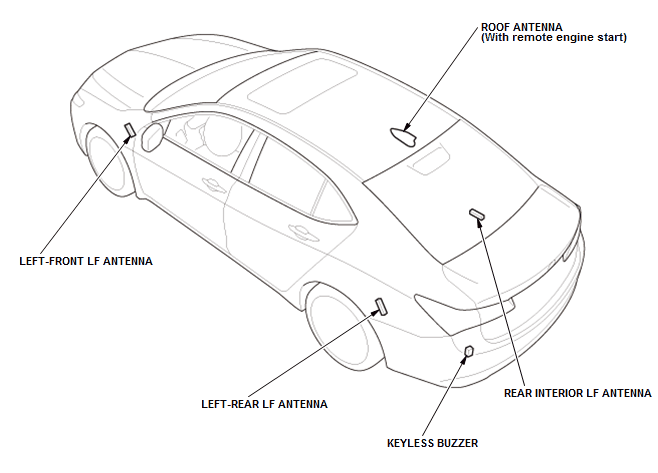

GHH163825Courtesy of HONDA, U.S.A., INC.

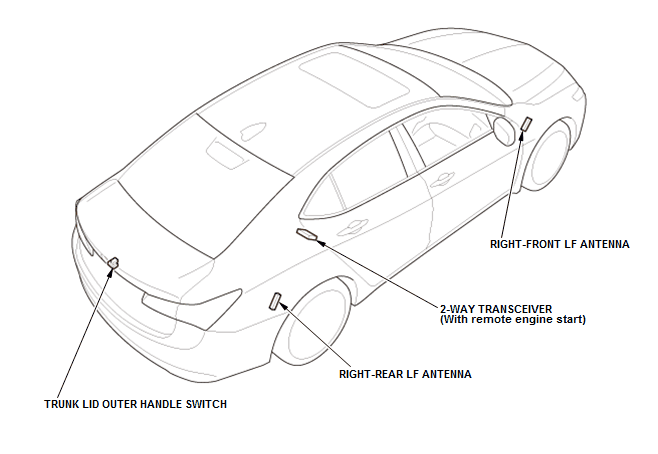

GHH163826Courtesy of HONDA, U.S.A., INC.

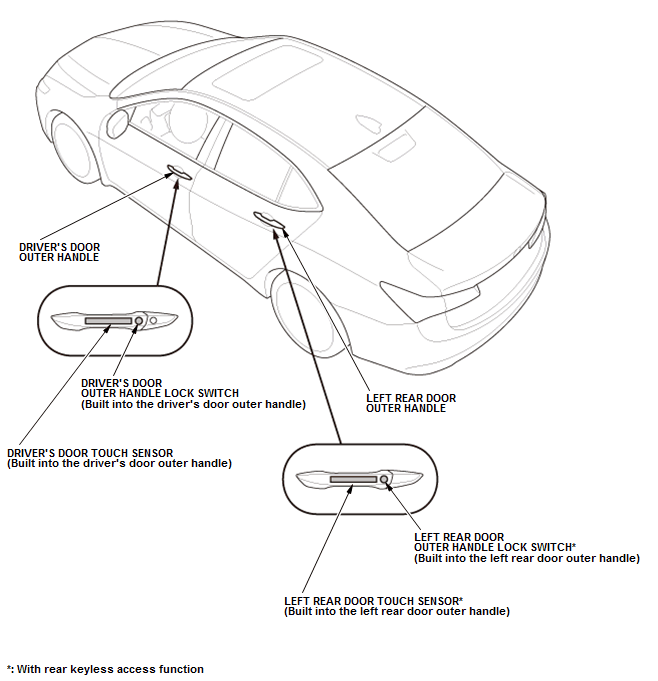

GHH163827Courtesy of HONDA, U.S.A., INC.

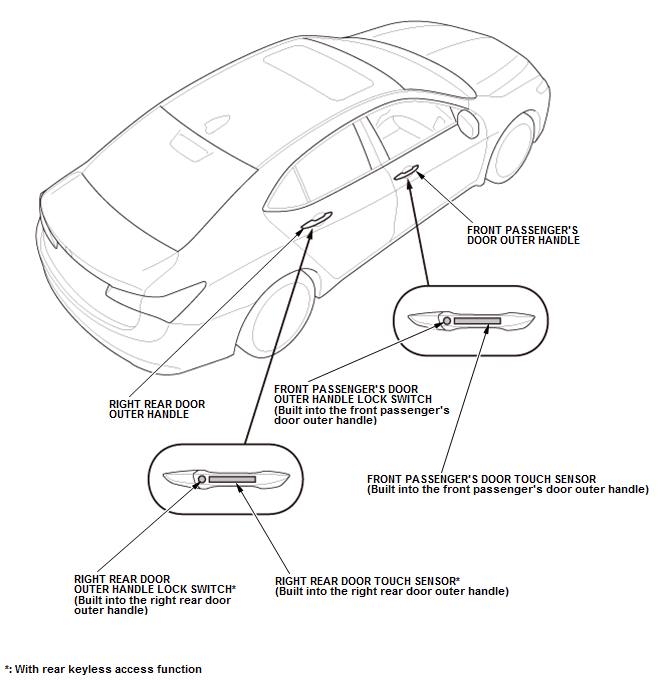

GHH163828Courtesy of HONDA, U.S.A., INC.
