Keyless/Power Door Locks/Security System Circuit Diagram (With SH-AWD) (2015-17)

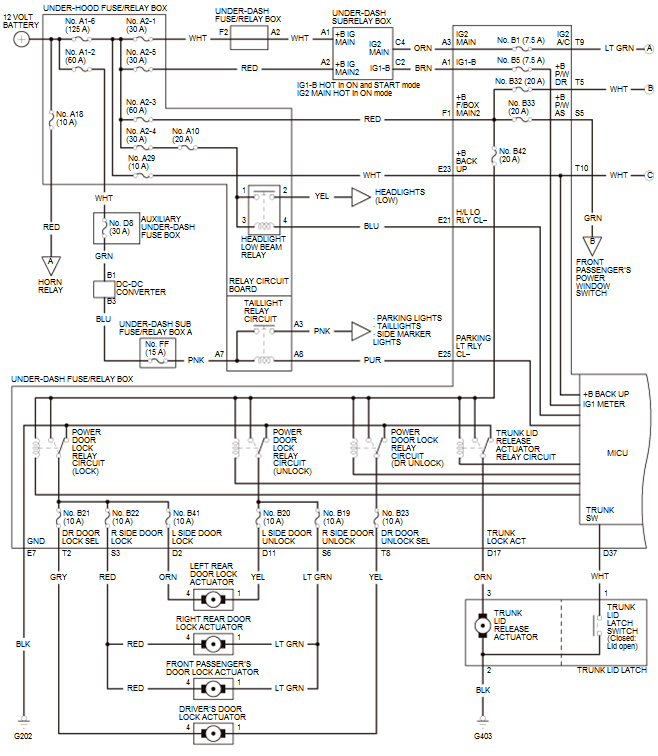

GHH203666Courtesy of HONDA, U.S.A., INC.

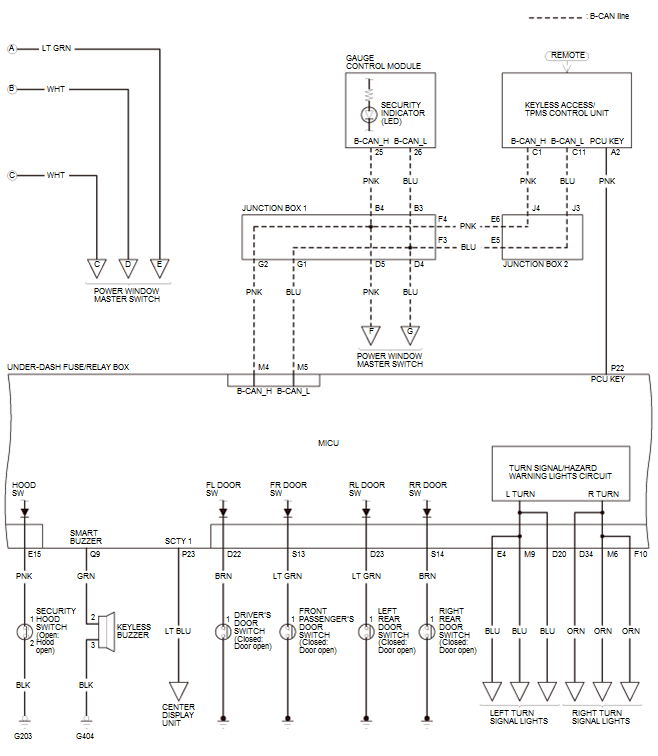

GHH203667Courtesy of HONDA, U.S.A., INC.

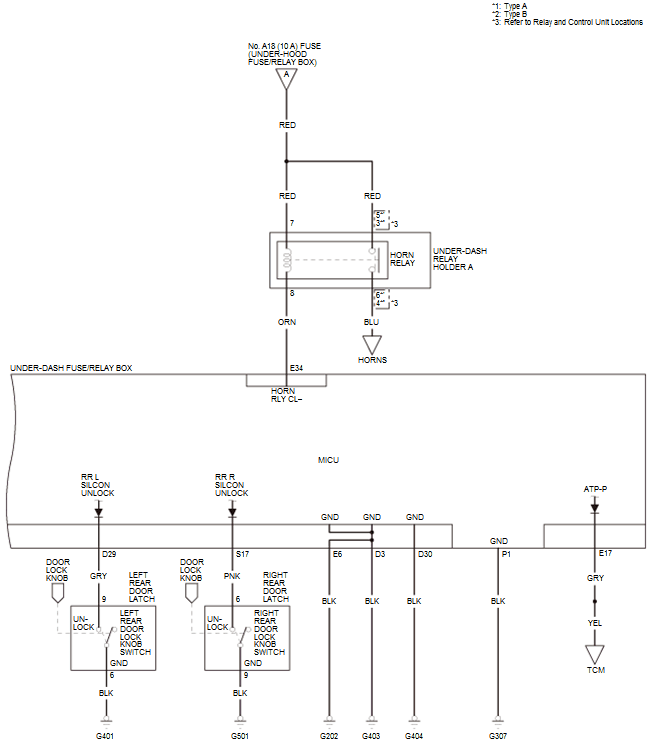

GHH203668Courtesy of HONDA, U.S.A., INC.

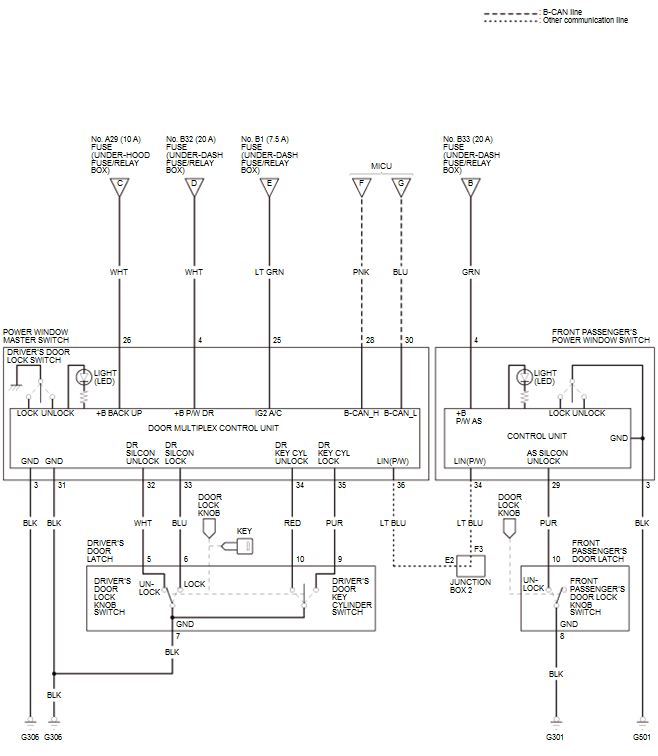

GHH203669Courtesy of HONDA, U.S.A., INC.
