Keyless Access System Circuit Diagram (With SH-AWD) (2015-17)

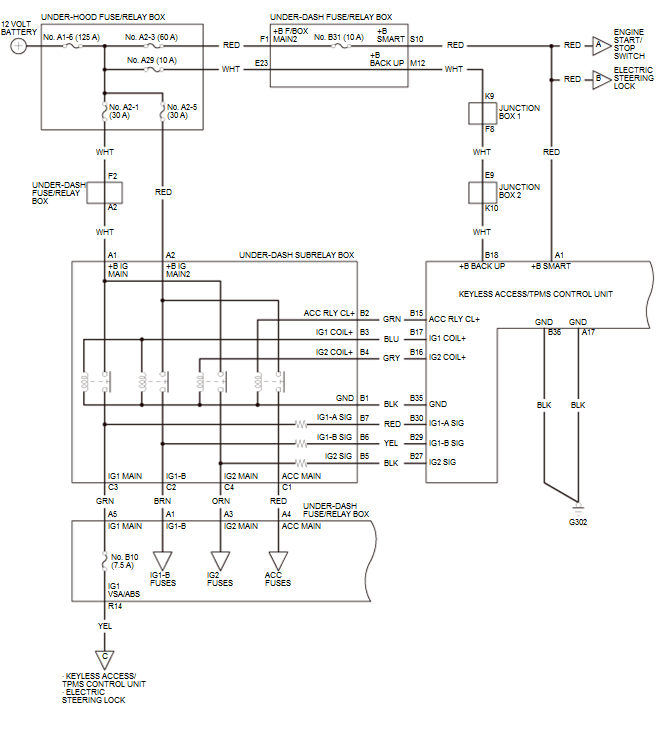

GHH163952

Courtesy of HONDA, U.S.A., INC.

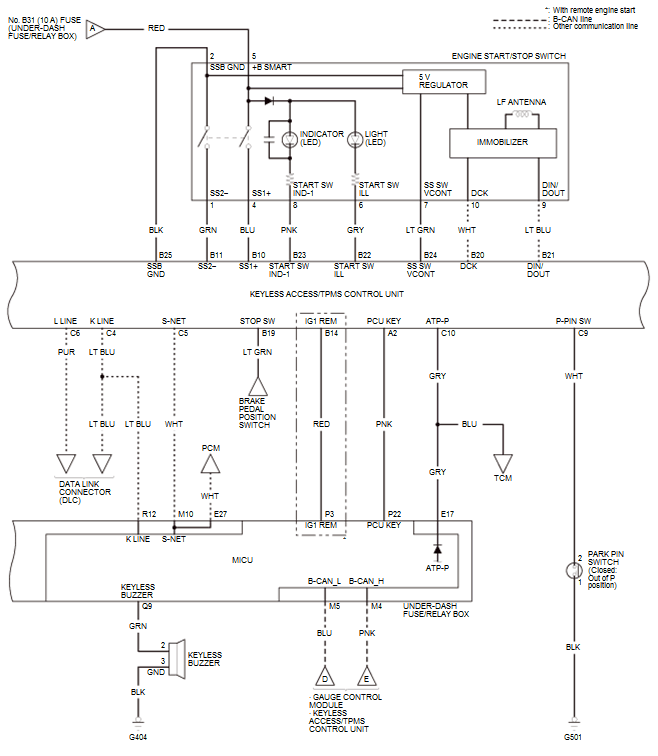

GHH163953

Courtesy of HONDA, U.S.A., INC.

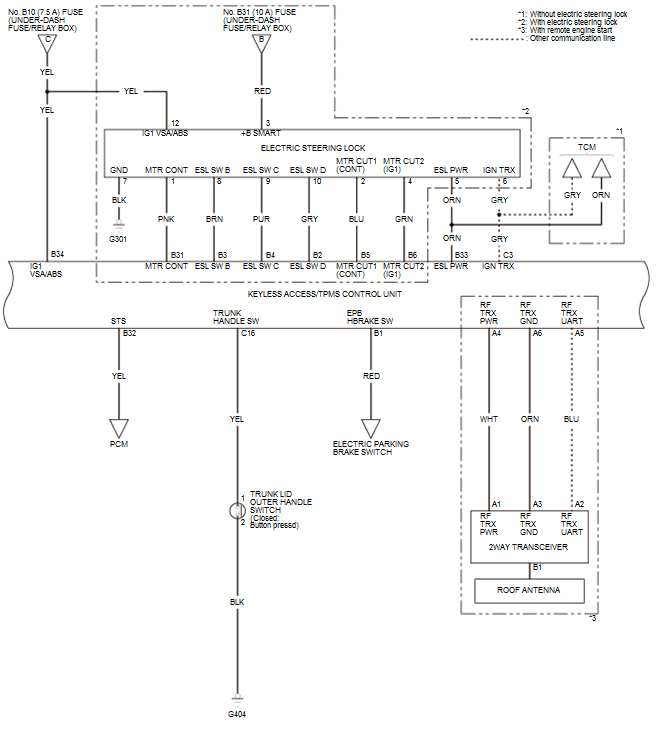

GHH163954

Courtesy of HONDA, U.S.A., INC.

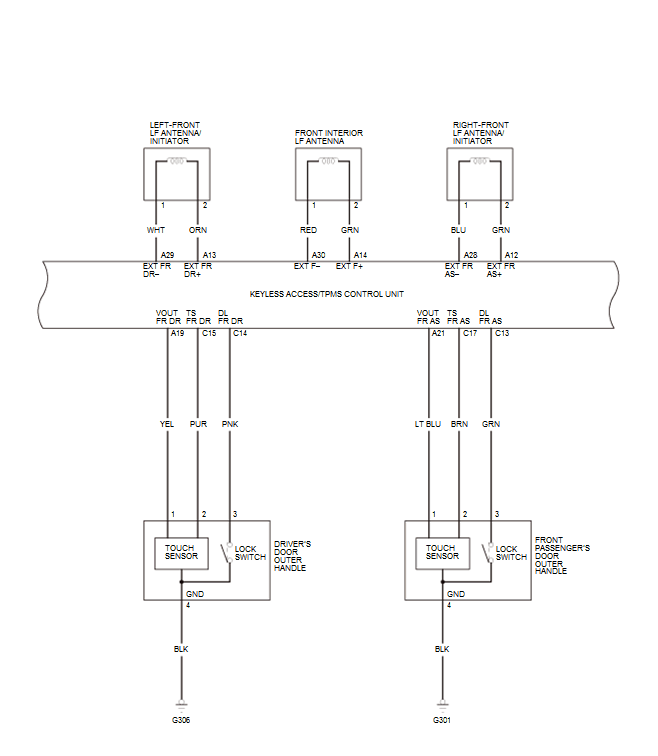

GHH163955

Courtesy of HONDA, U.S.A., INC.

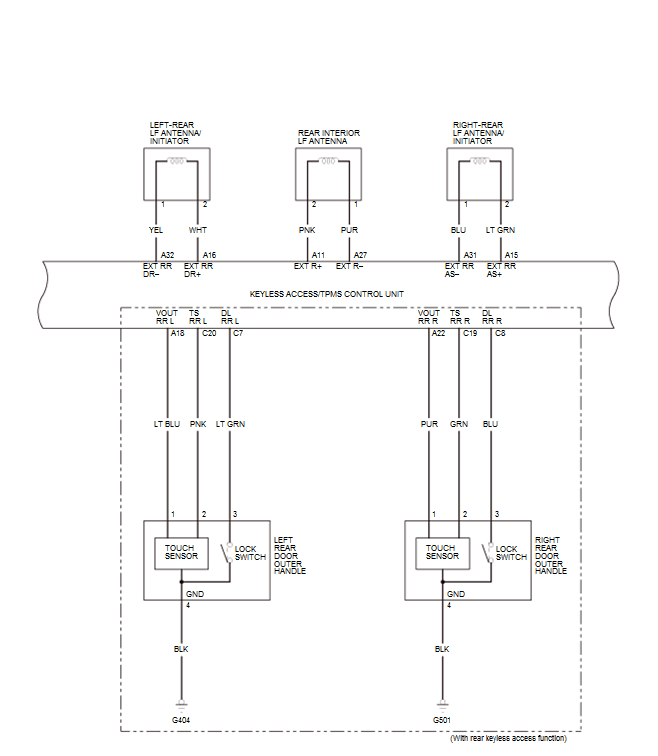

GHH163956

Courtesy of HONDA, U.S.A., INC.

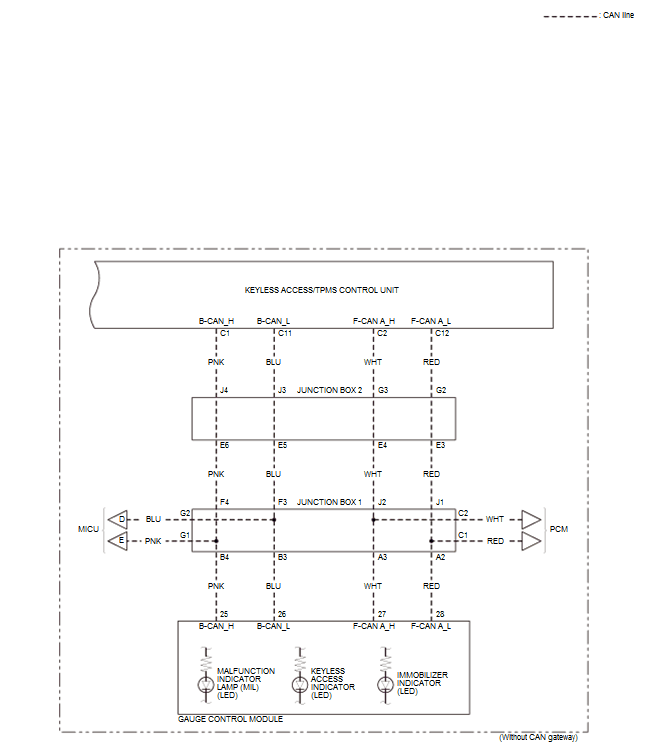

GHH163957

Courtesy of HONDA, U.S.A., INC.

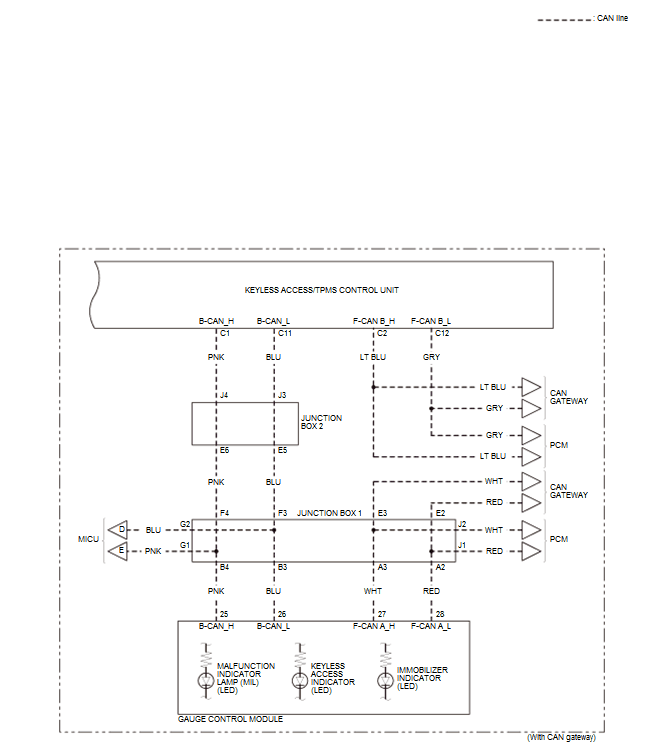

GHH163958

Courtesy of HONDA, U.S.A., INC.
