DTC P0776
DTC P0776: A/T Clutch Pressure Control Solenoid Valve B Stuck OFF
General Description

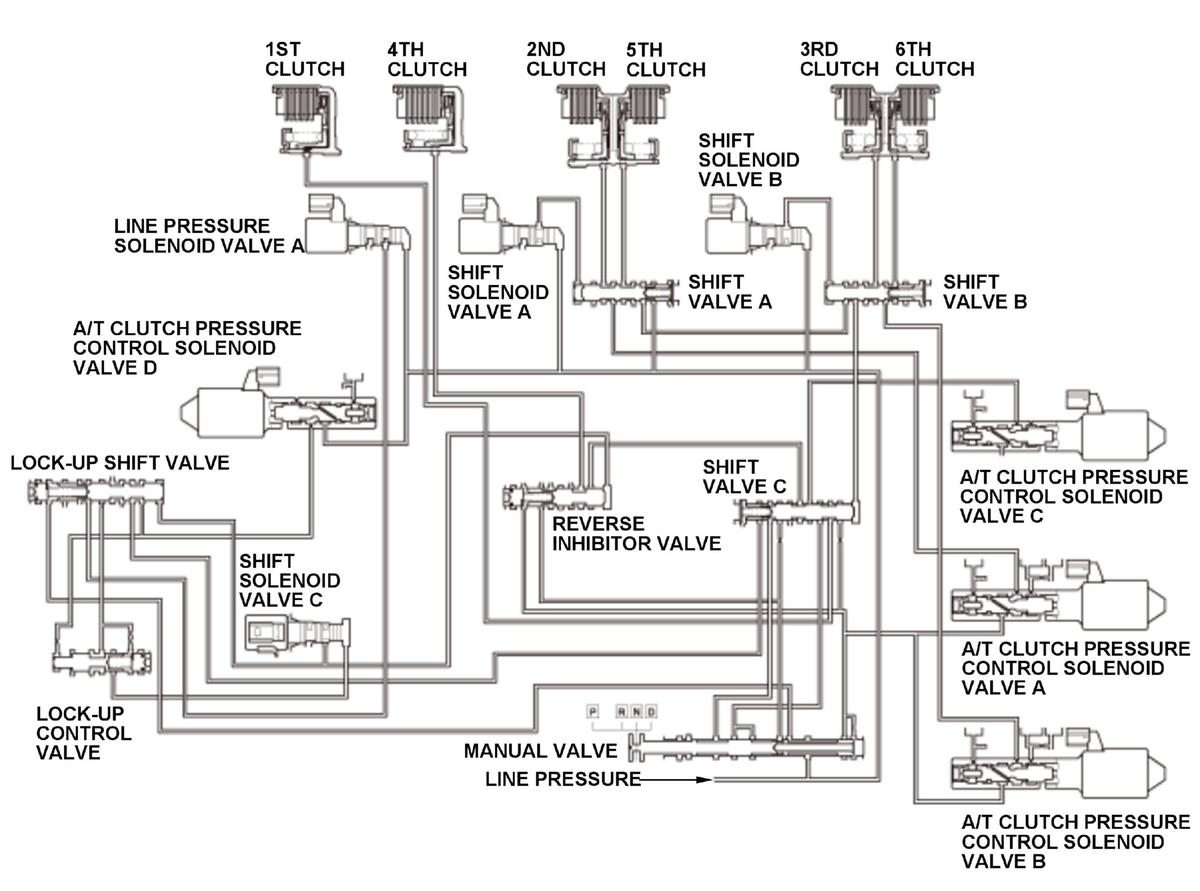

Hydraulic pressure supply to the clutch by shift solenoid valve output (D position)
| Gear position | Shift solenoid valve | Clutch | ||||||
|---|---|---|---|---|---|---|---|---|
| A | B | 1st | 2nd | 3rd | 4th | 5th | 6th | |
| Neutral-1st | ON | OFF | CPCD | - | - | - | - | - |
| 1st | ON | ON | LINE | CPCA | CPCB | CPCC | - | - |
| 1st-2nd | ON | ON | LINE | CPCA | CPCB | CPCC | - | - |
| 2nd | ON | ON | LINE | CPCA | CPCB | CPCC | - | - |
| 2nd-3rd | ON | ON | LINE | CPCA | CPCB | CPCC | - | - |
| 3rd | OFF | ON | LINE | - | CPCB | CPCC | CPCA | - |
| 3rd-4th | OFF | ON | LINE | - | CPCB | CPCC | CPCA | - |
| 4th | OFF | OFF/(ON) | LINE | - | (CPCB) | CPCC | CPCA | CPCB |
| 4th-5th | OFF | OFF | LINE | - | - | CPCC | CPCA | CPCB |
| 5th | OFF | OFF/(ON) | LINE | - | (CPCB) | CPCC | CPCA | CPCB |
| 5th-6th | OFF | OFF | LINE | - | - | CPCC | CPCA | CPCB |
| 6th | OFF | OFF | LINE | - | - | CPCC | CPCA | CPCB |
LINE : Line pressure
CPCA: A/T clutch pressure control solenoid valve A pressure
CPCB: A/T clutch pressure control solenoid valve B pressure
CPCC: A/T clutch pressure control solenoid valve C pressure
CPCD: A/T clutch pressure control solenoid valve D pressure
A/T clutch pressure control solenoid valve B is installed on the transmission housing. A/T clutch pressure control solenoid valve B is operated by the powertrain control module (PCM) and converts line pressure to A/T clutch pressure control solenoid valve B pressure. A signal from the PCM is output to A/T clutch pressure control solenoid valve B to supply proper A/T clutch pressure control solenoid valve B pressure to the correct gear clutch according to the shift schedule and the driving conditions. When the current from the PCM is high (ON), A/T clutch pressure control solenoid valve B operates and A/T clutch pressure control solenoid valve B pressure increases. When the current from the PCM is low (OFF), A/T clutch pressure control solenoid valve B turns off and A/T clutch pressure control solenoid valve B pressure decreases. The PCM monitors the input shaft (mainshaft) speed and the output shaft (countershaft) speed according to the shift status determined by the shift schedule. When an improper gear ratio is output for the shift schedule, the PCM detects an A/T clutch pressure control solenoid valve B stuck off failure and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous | |
| Sequence | None | |
| Duration | Symptom 1 | 1 second or more |
| Symptom 2 | 4 seconds or more | |
| Symptom 3 | ||
| DTC Type | Two drive cycles, MIL on, A/T gear position indicator blinks | |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) | |
Enable Conditions
| Condition | Minimum | Maximum | |
|---|---|---|---|
| Engine coolant temperature [ENGINE COOLANT TEMPERATURE]* |
50 deg.F (10 deg.C) | - | |
| ATF temperature [ATF TEMPERATURE]* |
-4 deg.F (-20 deg.C) | - | |
| Vehicle speed [VEHICLE SPEED]* |
5 mph (9 km/h) | - | |
| Battery voltage [BATTERY VOLTAGE] |
11 V | - | |
| Accelerator pedal position variation* | - | 6 %/20 milliseconds (Not fully closed) | |
| Shift lever position | D | ||
| No active DTCs set (prevents monitor from running) | P0122, P0123, P0222, P0223, P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0351, P0352, P0353, P0354, P0355, P0356, P0705, P0716, P0717, P0718, P0721, P0722, P0723, P0746, P0747, P0751, P0752, P0756, P0757, P0761, P0762, P0777, P0796, P0797, P0842, P0843, P0847, P0848, P0872, P0873, P0877, P0878, P0962, P0963, P0966, P0967, P0970, P0971, P0973, P0974, P0976, P0977, P0979, P0980, P0989, P0990, P1658, P1659, P1683, P1684, P2101, P2118, P2122, P2123, P2127, P2128, P2135, P2138, P2176, P2648, P2649, P2653, P2654, P2658, P2659, P2714, P2720, P2721 | ||
* : Symptom 1
[ ]: HDS Parameter
Malfunction Threshold

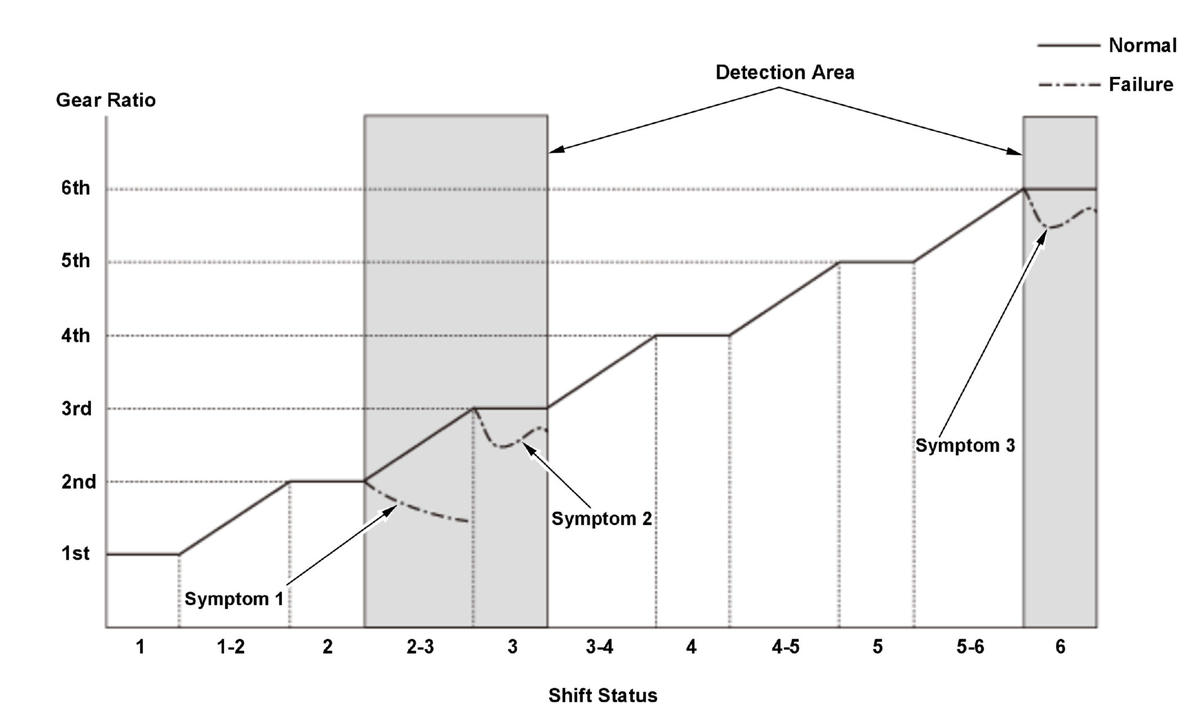

One of these symptoms occurs:
Symptom 1
| Symptom | Gear position commanded by the PCM | Actual gear position | |
|---|---|---|---|
| 1 | 2nd -> 3rd gear upshift | The engine speed flares when upshifting to 2nd -> 3rd gear | |
Symptom 2
| Symptom | Gear position commanded by the PCM | Actual gear position | |
|---|---|---|---|
| 2 | Driving in 3rd gear | Neutral | |
Symptom 3
| Symptom | Gear position commanded by the PCM | Actual gear position | |
|---|---|---|---|
| 3 | Driving in 6th gear | Neutral | |
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- A/T clutch pressure control solenoid valve B stuck off
Confirmation Procedure
Operating Condition
- 1.
Start the engine.
- 2.
Drive the vehicle in D until the transmission shifts into 6th gear.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
