DTC P0762
DTC P0762: Shift Solenoid Valve C Stuck ON
General Description
Hydraulic pressure supply to the clutch by shift solenoid valve output
| Gear position | Neutral- 1st | 1st | Neutral- Reverse |
Reverse | |
|---|---|---|---|---|---|
| Shift solenoid valve | A | ON | ON | ON | OFF |
| B | OFF | ON | OFF | OFF | |
| C | OFF | OFF | ON | ON | |
| 1st clutch | CPCD | LINE | - | - | |
| 4th clutch | - | - | CPCD | LINE | |
LINE : Line pressure
CPCD: A/T clutch pressure control solenoid valve D pressure

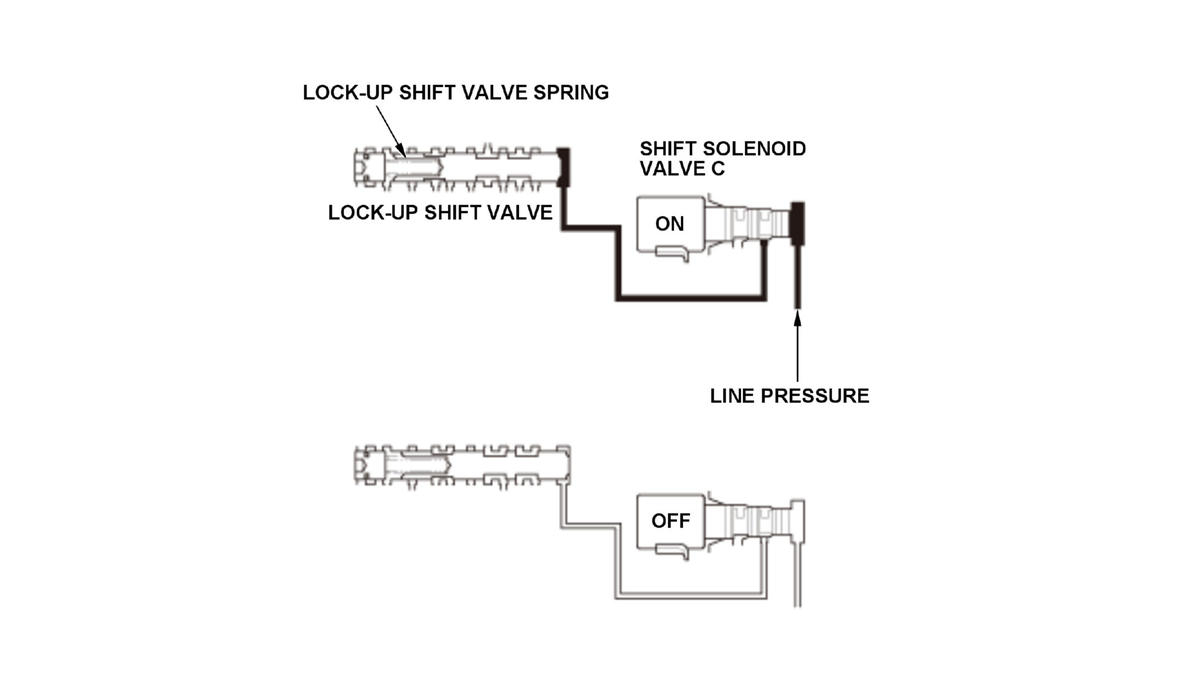

Shift solenoid valve C is installed on the transmission housing. It is controlled by the ON/OFF signal from the powertrain control module (PCM) to apply line pressure to the lock-up shift valve. A signal from the PCM is output to apply A/T clutch pressure control solenoid valve pressure to the correct gear clutch according to the shift schedule. When the signal to shift solenoid valve C from the PCM is on, and the line pressure is applied to the lock-up shift valve, it operates against the lock-up shift valve spring. When the signal to shift solenoid valve C from the PCM is off, and the line pressure is discharged, the lock-up shift valve is inactive. The PCM monitors the input shaft (mainshaft) speed and the output shaft (countershaft) speed according to the shift status determined by the shift schedule. When an improper gear ratio is output for the shift schedule, the PCM detects a shift solenoid valve C stuck on failure and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous | |
| Sequence | None | |
| Duration | Symptom 1-A | 10 seconds or more |
| Symptom 1-B | 3 seconds or more | |
| DTC Type | Two drive cycles, MIL on, A/T gear position indicator blinks | |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) | |
Enable Conditions
| Condition | Minimum | Maximum | |
|---|---|---|---|
| ATF temperature [ATF TEMPERATURE] |
-4 deg.F (-20 deg.C) | 248 deg.F (120 deg.C) | |
| Vehicle speed [VEHICLE SPEED] |
- | 3 mph (4 km/h) | |
| Battery voltage [BATTERY VOLTAGE] |
11 V | - | |
| Shift lever position | D, R | ||
| No active DTCs set (prevents monitor from running) | P0122, P0123, P0222, P0223, P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0351, P0352, P0353, P0354, P0355, P0356, P0705, P0716, P0717, P0718, P0721, P0722, P0723, P0746, P0747, P0751, P0752, P0756, P0757, P0761, P0776, P0777, P0796, P0797, P0842, P0843, P0847, P0848, P0872, P0873, P0877, P0878, P0962, P0963, P0966, P0967, P0970, P0971, P0973, P0974, P0976, P0977, P0979, P0980, P0989, P0990, P1658, P1659, P1683, P1684, P2101, P2118, P2122, P2123, P2127, P2128, P2135, P2138, P2176, P2648, P2649, P2653, P2654, P2658, P2659, P2714, P2720, P2721 | ||
[ ]: HDS Parameter
Malfunction Threshold
Symptom 1-B occurs after Symptom 1-A occurred:
| Symptom | Gear position commanded by the PCM | Actual gear position | |
|---|---|---|---|
| 1 | 1-A | 1st gear in-gear | Neutral |
| 1-B | Reverse gear in-gear | Reverse gear in-gear | |
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Shift solenoid valve C stuck on
Confirmation Procedure
Operating Condition
- 1.
Start the engine.
- 2.
With the brake pedal pressed, shift the transmission to 1st gear.
- 3.
With the brake pedal pressed, shift to R.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
