DTC P0732
DTC P0732: 2nd Gear Incorrect Ratio
General Description

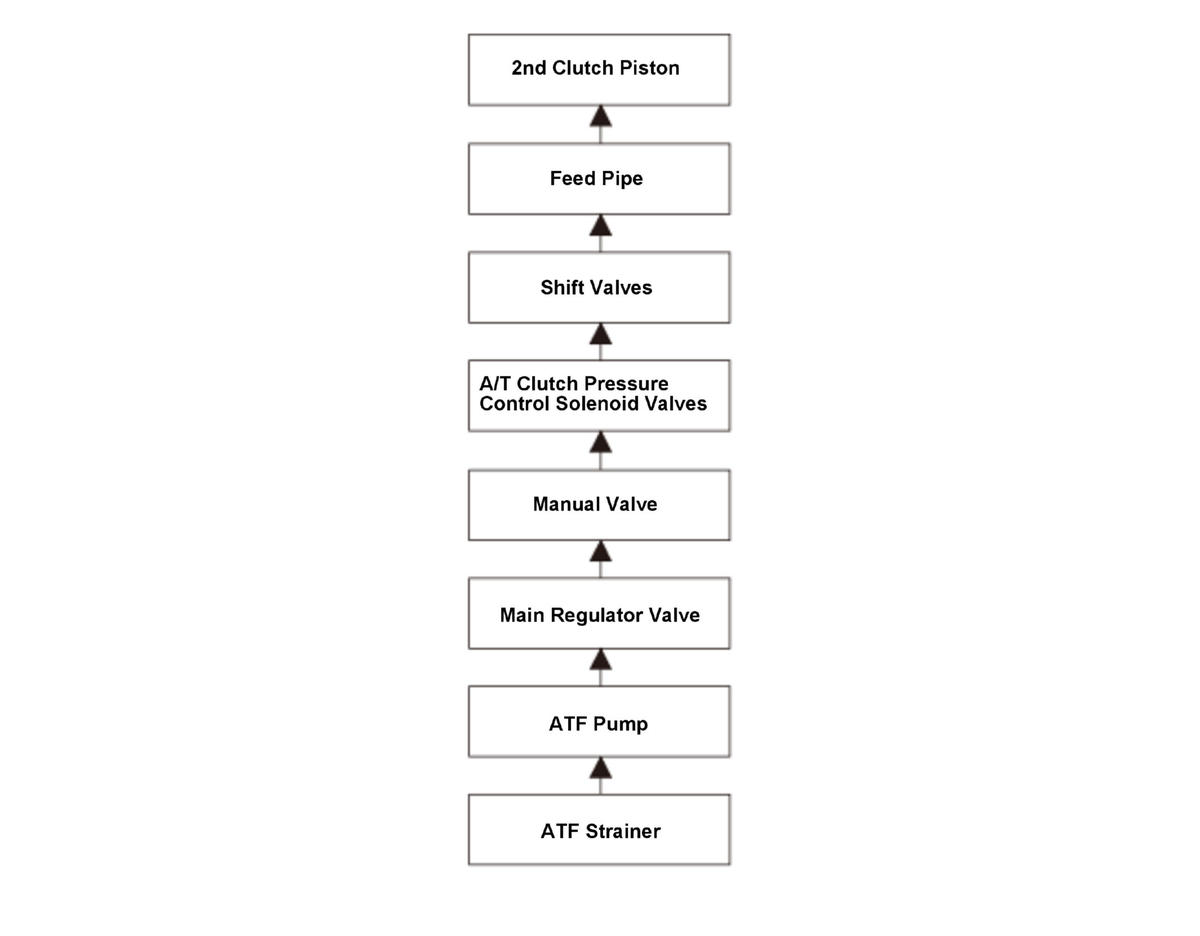

To engage 2nd gear, A/T clutch pressure control solenoid valve pressure is supplied to the 2nd clutch piston, engaging the 2nd clutch, and the secondary shaft and the secondary shaft 2nd gear are connected and revolve together. Hydraulic pressure is supplied to the 2nd clutch through the ATF strainer -> the ATF pump -> the main regulator valve -> the manual valve -> the A/T clutch pressure control solenoid valves -> the shift valves -> the feed pipe -> the 2nd clutch piston. (An A/T clutch pressure control solenoid valve failure and shift valve failure in the supply route above are detected by the malfunction detection of each solenoid valve.) The powertrain control module (PCM) computes the ratio of the input shaft (mainshaft) speed to the output shaft (countershaft) speed. When the ratio is not the 2nd gear ratio, the PCM detects a malfunction of the hydraulic circuit or the 2nd clutch and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous |
| Sequence | None |
| Duration | 12 seconds or more |
| DTC Type | Two drive cycles, MIL off, A/T gear position indicator blinks |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Engine speed [ENGINE SPEED] |
500 RPM | - |
| Vehicle speed [VEHICLE SPEED] |
8 mph (12 km/h) | - |
| Battery voltage [BATTERY VOLTAGE] |
11 V | - |
| Shift lever position | D | |
| No active DTCs set (prevents monitor from running) | P0117, P0118, P0122, P0123, P0222, P0223, P0705, P0706, P0716, P0717, P0718, P0721, P0722, P0723, P0729, P0731, P0733, P0734, P0735, P0746, P0747, P0751, P0752, P0756, P0757, P0761, P0762, P0776, P0777, P0796, P0797, P0962, P0963, P0966, P0967, P0970, P0971, P0973, P0974, P0976, P0977, P0979, P0980, P1658, P1659, P1683, P1684, P2101, P2118, P2122, P2123, P2127, P2128, P2135, P2138, P2176, P2714, P2720, P2721 | |
[ ]: HDS Parameter

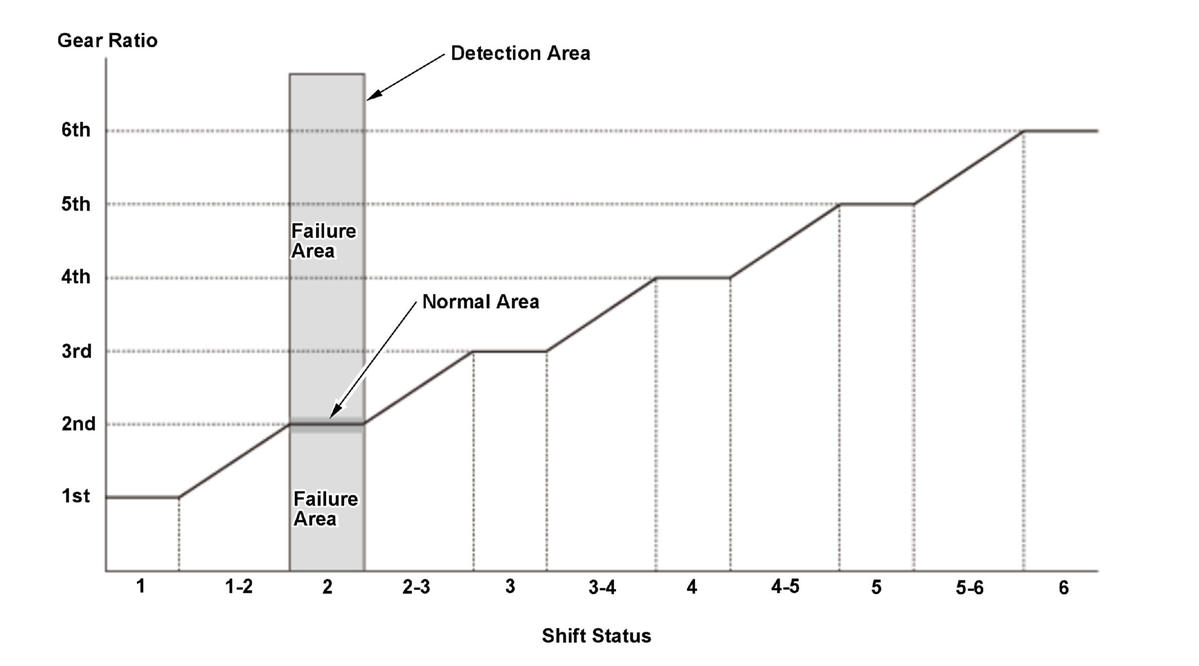

Malfunction Threshold
The actual gear ratio must match one of these conditions for at least 12 seconds with the 2nd gear command:
- Actual gear ratio is greater than the 2nd gear ratio by a factor of 1.25.
- Actual gear ratio is less than the 2nd gear ratio by a factor of 0.8.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Shift control system failure
- 2nd clutch disc surface worn
- ATF pump flow pressure insufficient
Confirmation Procedure
Operating Condition
- 1.
Start the engine.
- 2.
Drive the vehicle in D at a speed of 8 mph (12 km/h) or more for at least 12 seconds in 2nd gear.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, a Confirmed DTC and the freeze data are stored. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
