DTC P0711
DTC P0711: ATF Temperature Sensor (Range/Performance)
General Description

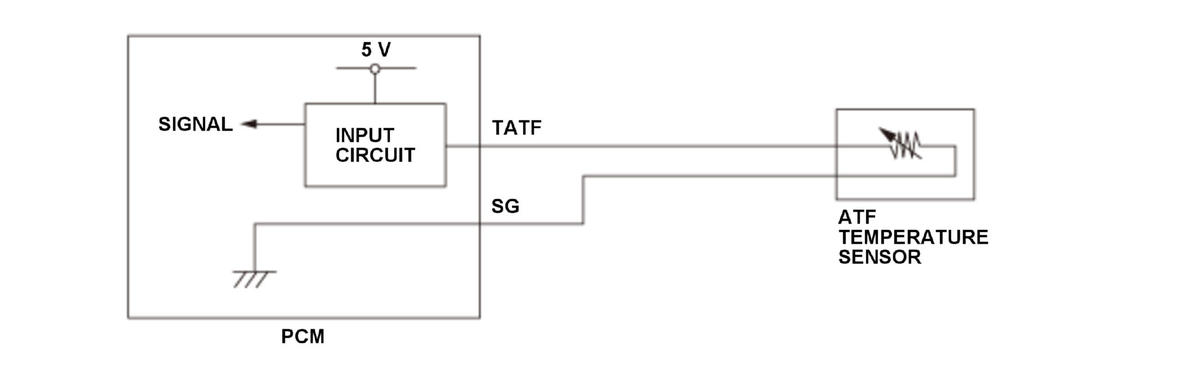

The ATF temperature sensor is a thermistor type sensor that changes resistance according to the change in ATF temperature. The powertrain control module (PCM) sends a 5 V reference signal to the sensor through a pull-up resistor. When the ATF temperature is low, the sensor resistance increases and the PCM detects a high signal voltage. As the ATF temperature rises, the sensor resistance decreases and the PCM detects a low signal voltage. If the ATF temperature sensor signal does not change, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Once per driving cycle |
| Sequence | None |
| Duration | 5 minutes or more* |
| 20 seconds or more** | |
| DTC Type | Two drive cycles, MIL off, A/T gear position indicator blinks |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
* : Stuck at low temperature is detected
** : Stuck at high temperature is detected
Enable Conditions
Stuck at low temperature
| Condition | Minimum | Maximum |
|---|---|---|
| Engine coolant temperature [ENGINE COOLANT TEMPERATURE] |
158 deg.F (70 deg.C) | - |
| Initial engine coolant temperature [ENGINE COOLANT TEMPERATURE] |
- | 95 deg.F (35 deg.C) |
| ATF temperature [ATF TEMPERATURE] |
- | -4 deg.F (-20 deg.C) |
| Initial ATF temperature [ATF TEMPERATURE] |
- | -4 deg.F (-20 deg.C) |
| Vehicle speed [VEHICLE SPEED] |
19 mph (30 km/h) | - |
| Battery voltage [BATTERY VOLTAGE] |
11 V | - |
| Throttle position | 4 deg. | - |
| No active DTCs set (prevents monitor from running) | P0117, P0118, P0712, P0713, P0714, P0721, P0722 | |
| Other | After the engine coolant temperature [ENGINE COOLANT TEMPERATURE] reaches the fixed value, both the vehicle speed [VEHICLE SPEED] and the throttle position meet the conditions for at least 5 minutes | |
Stuck at high temperature
| Condition | Minimum | Maximum |
|---|---|---|
| Engine coolant temperature [ENGINE COOLANT TEMPERATURE] |
158 deg.F (70 deg.C) | - |
| Previous engine coolant temperature [ENGINE COOLANT TEMPERATURE] when the vehicle condition was turned to the OFF (LOCK) mode | 158 deg.F (70 deg.C) | - |
| Previous ATF temperature [ATF TEMPERATURE] when the vehicle condition was turned to the OFF (LOCK) mode | 230 deg.F (110 deg.C) | - |
| Present engine coolant temperature [ENGINE COOLANT TEMPERATURE] when the vehicle condition is turned to the ON mode | - | 95 deg.F (35 deg.C) |
| Present ATF temperature [ATF TEMPERATURE] when the vehicle condition is turned to the ON mode | 230 deg.F (110 deg.C) | - |
| Battery voltage [BATTERY VOLTAGE] |
11 V | - |
| No active DTCs set (prevents monitor from running) | P0117, P0118, P0712, P0713, P0714, P0721, P0722 | |
[ ]: HDS Parameter

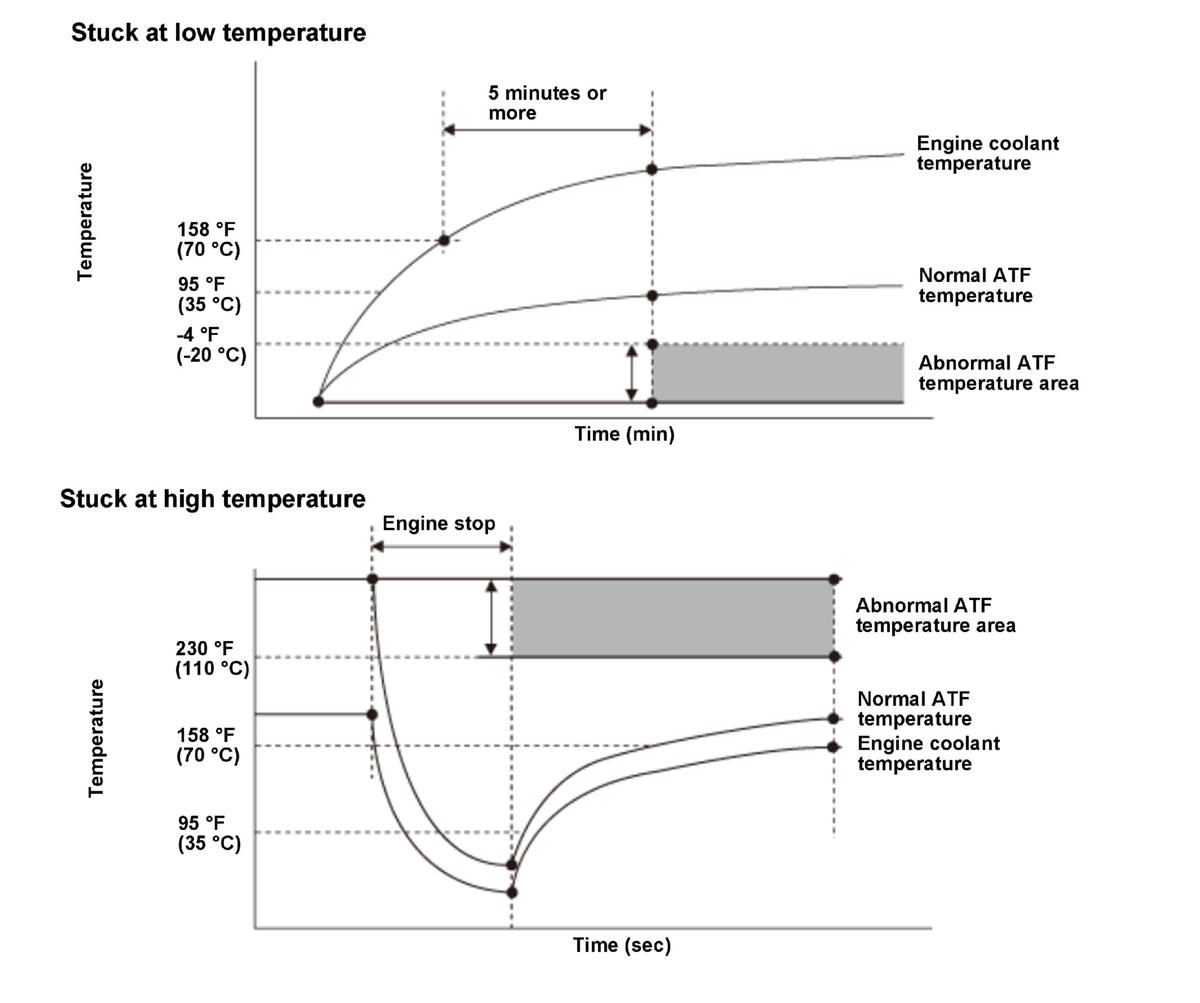

Malfunction Threshold
Stuck at low temperature
The current ATF temperature [ATF TEMPERATURE] is -4 deg.F (-20 deg.C) or less after Enable Conditions.
Stuck at high temperature
The current ATF temperature [ATF TEMPERATURE] is 230 deg.F (110 deg.C) or more after Enable Conditions.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- ATF temperature sensor failure
- PCM internal circuit failure
Confirmation Procedure
Operating Condition
Stuck at low temperature

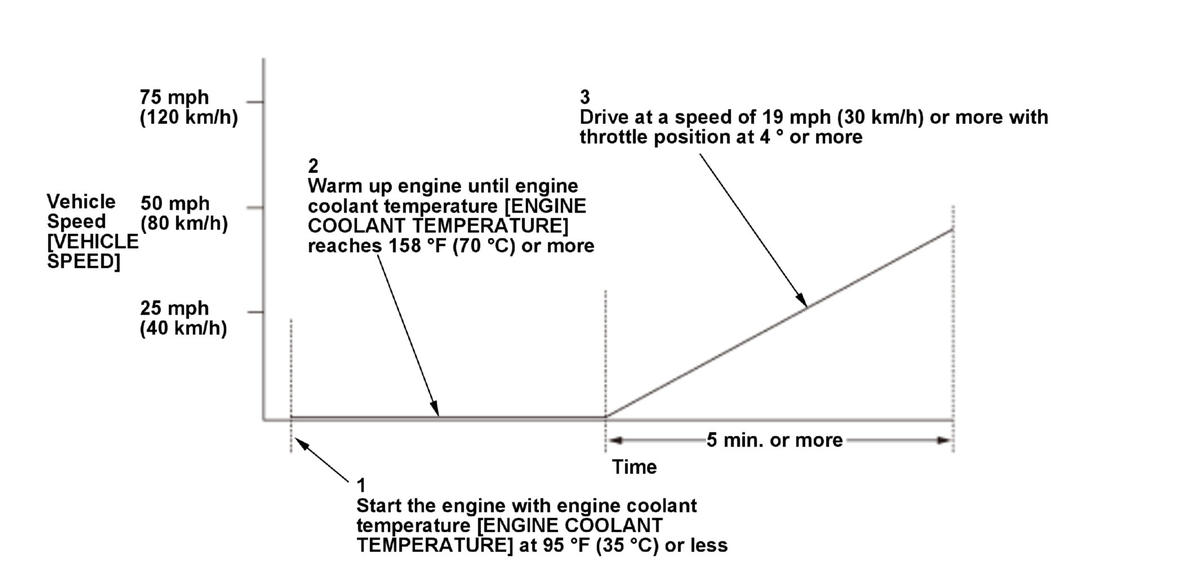

- 1.
Start the engine with the engine coolant temperature [ENGINE COOLANT TEMPERATURE] at 95 deg.F (35 deg.C) or less.
- 2.
Warm up the engine until the engine coolant temperature [ENGINE COOLANT TEMPERATURE] reaches 158 deg.F (70 deg.C) or more.
- 3.
Drive the vehicle at a speed of 19 mph (30 km/h) or more with the throttle position at 4 deg. or more for at least 5 minutes.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
Stuck at high temperature
- 1.
Turn off the engine with the engine coolant temperature [ENGINE COOLANT TEMPERATURE] at 158 deg.F (70 deg.C) or more.
- 2.
Start the engine after the engine coolant temperature [ENGINE COOLANT TEMPERATURE] drops to 95 deg.F (35 deg.C) or less.
- 3.
Warm up the engine until the engine coolant temperature [ENGINE COOLANT TEMPERATURE] reaches 158 deg.F (70 deg.C), and wait for at least 20 seconds.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, a Confirmed DTC and the freeze data are stored. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
