Water Passage Removal And Installation (2014 2015 2016 2017): Installation

Water Passage - Install
Install the water passage and related parts.

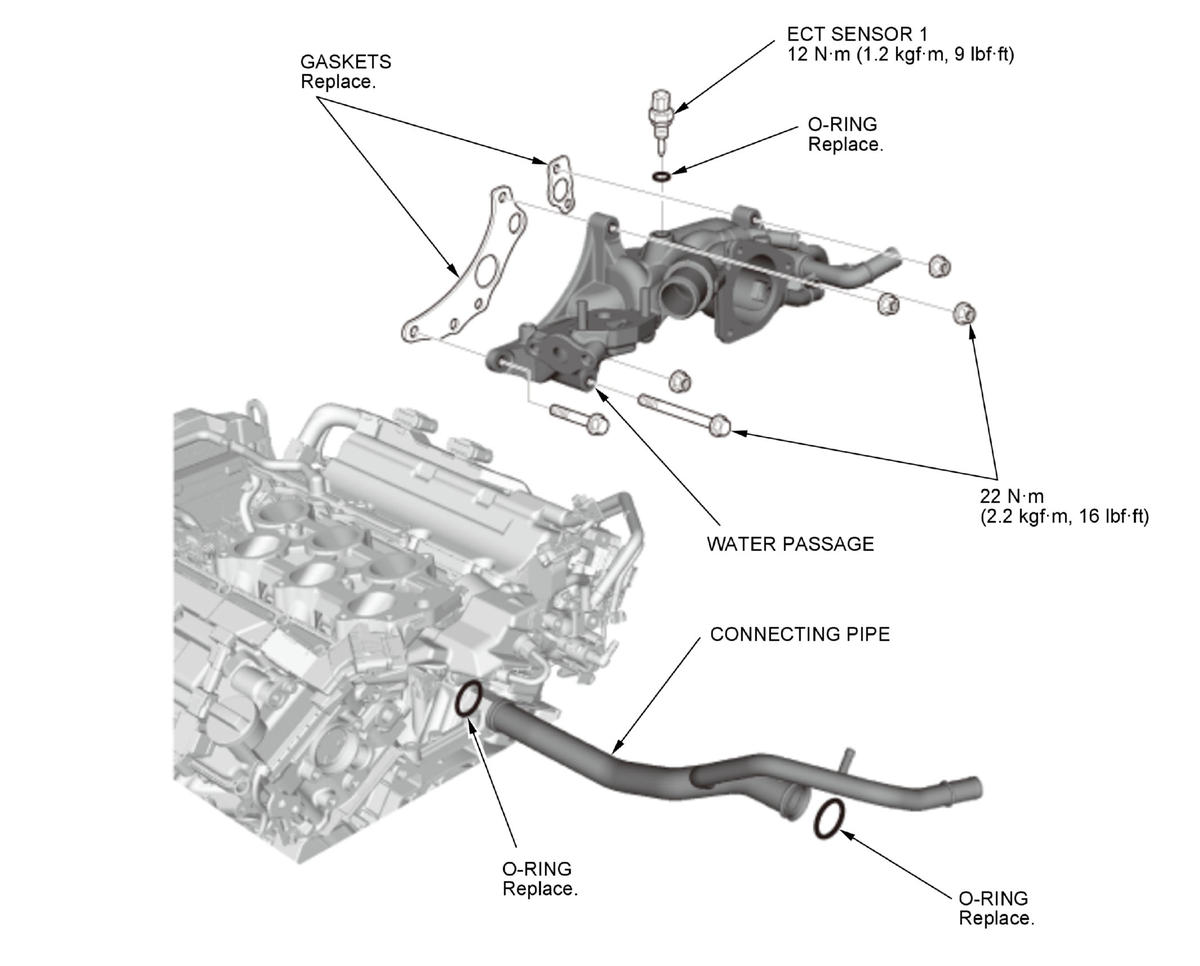

Fig 1: Water Passage With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

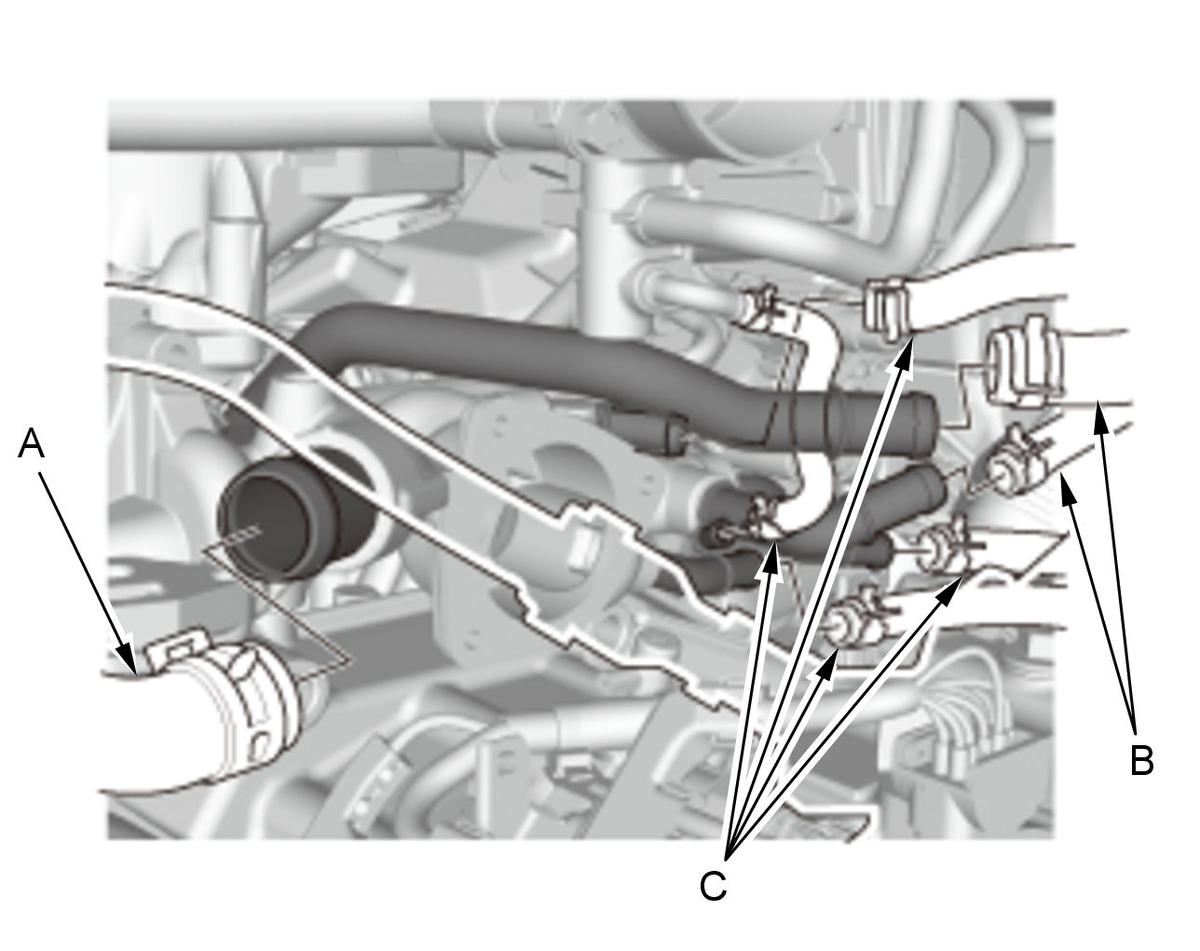

Upper Radiator Hose, Heater Hose, and Water Bypass Hose - Connect

Courtesy of HONDA, U.S.A., INC.

Connect the upper radiator hose (A), heater hoses (B), and the water bypass hose(s) (C).
ECT Sensor 1 Connector - Connect
Connect the ECT sensor 1 connector .
EGR Valve - Install
Install the EGR valve .
EGR Pipe - Install
Install the EGR pipe .
Thermostat - Install
Install the thermostat .
Intake Manifold Base - Install
Install the intake manifold base .
Intake Manifold - Install
Install the intake manifold .
Engine Coolant - Refill
Refill the radiator with engine coolant, and bleed the air from the cooling system .
