Front Rocker Arm Oil Control Valve Removal And Installation: Installation

  1. Front Rocker Arm Oil Control Valve - Install

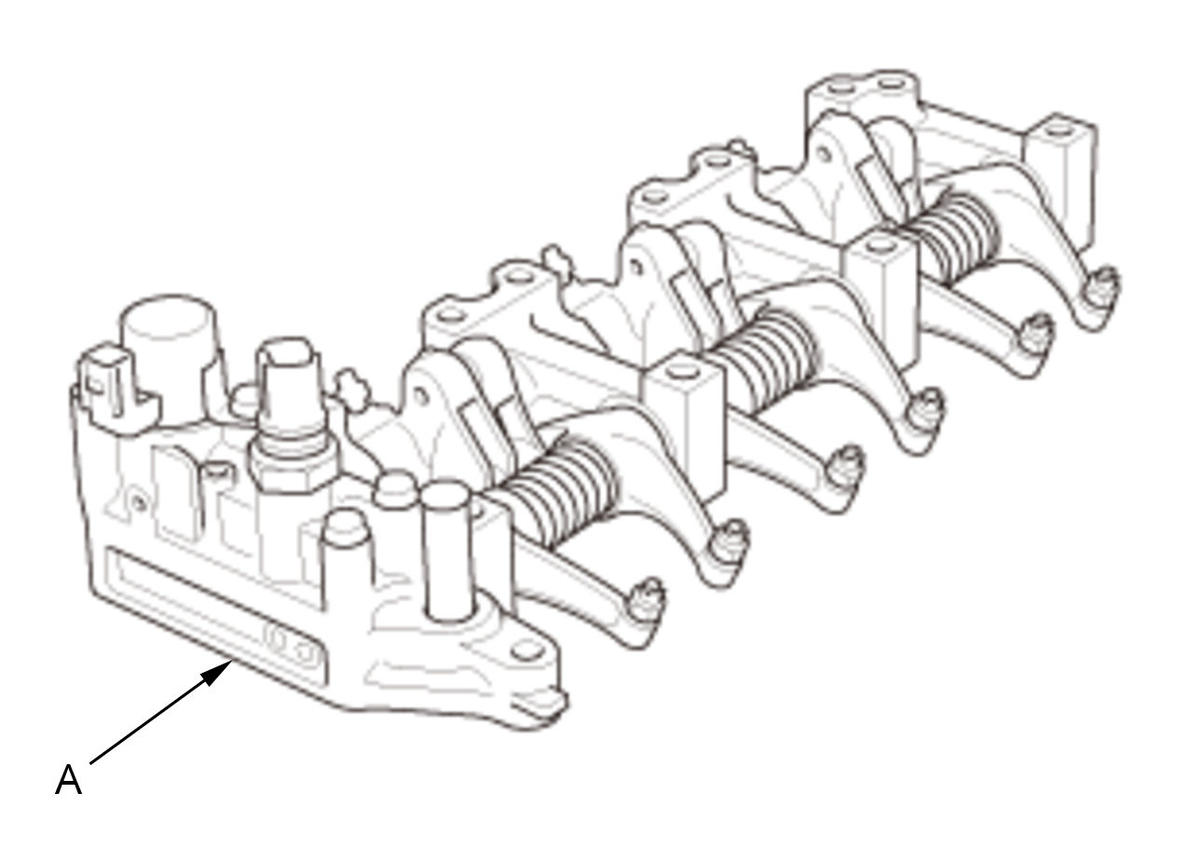

    GHH346020Courtesy of HONDA, U.S.A., INC.

    Install the front rocker arm oil control valve (A).

  2. Front Rocker Arm Assembly - Install

    Install the front rocker arm assembly .
