EGR Pipe Removal And Installation: Removal

Engine Cover - Remove
Remove the engine cover .
Engine Undercover - Remove
Remove the engine undercover .
EGR Pipe Mounting Nut - Remove

Courtesy of HONDA, U.S.A., INC.

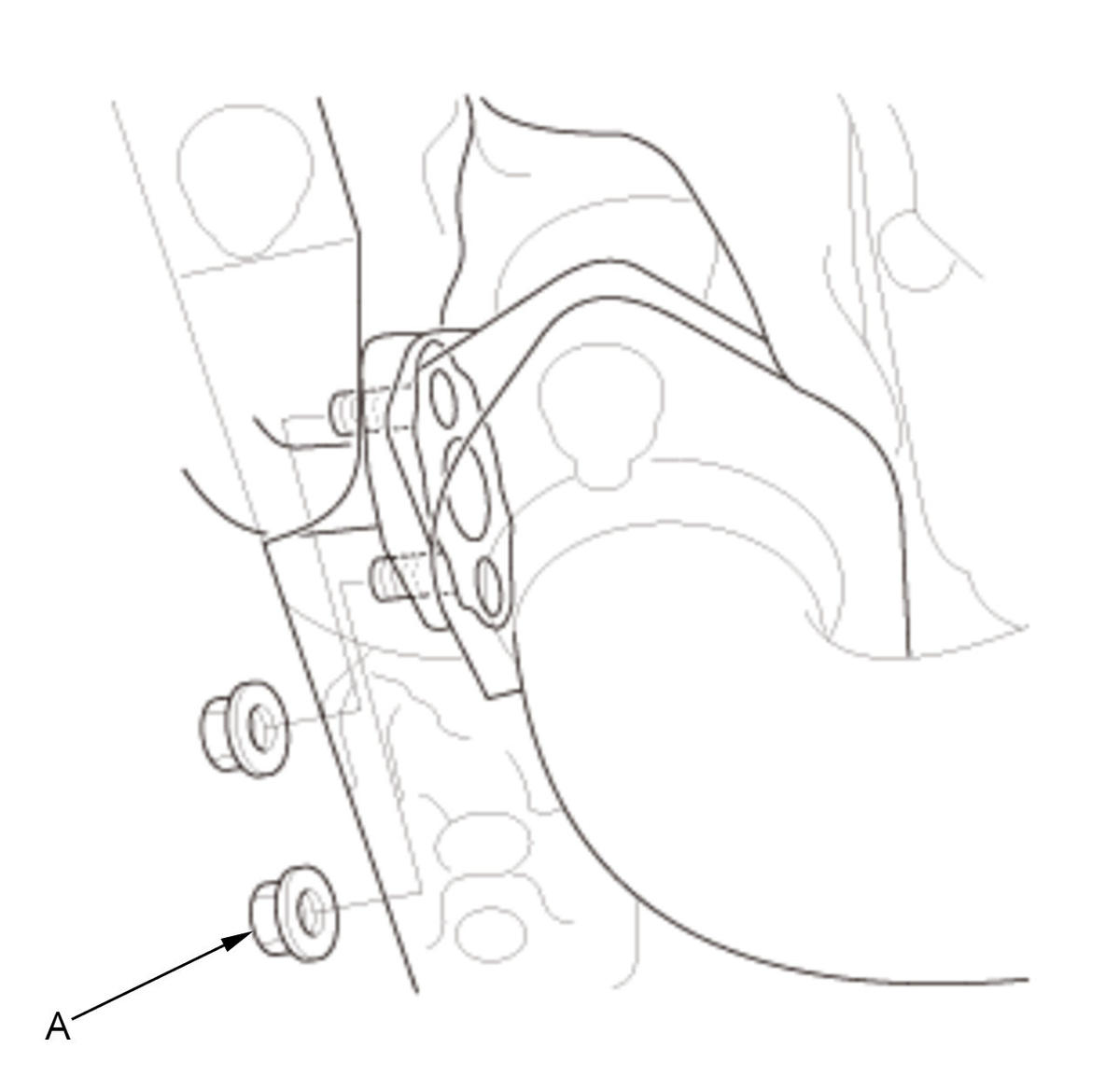

Remove the EGR pipe mounting nuts (A).

EGR Pipe - Remove

Courtesy of HONDA, U.S.A., INC.

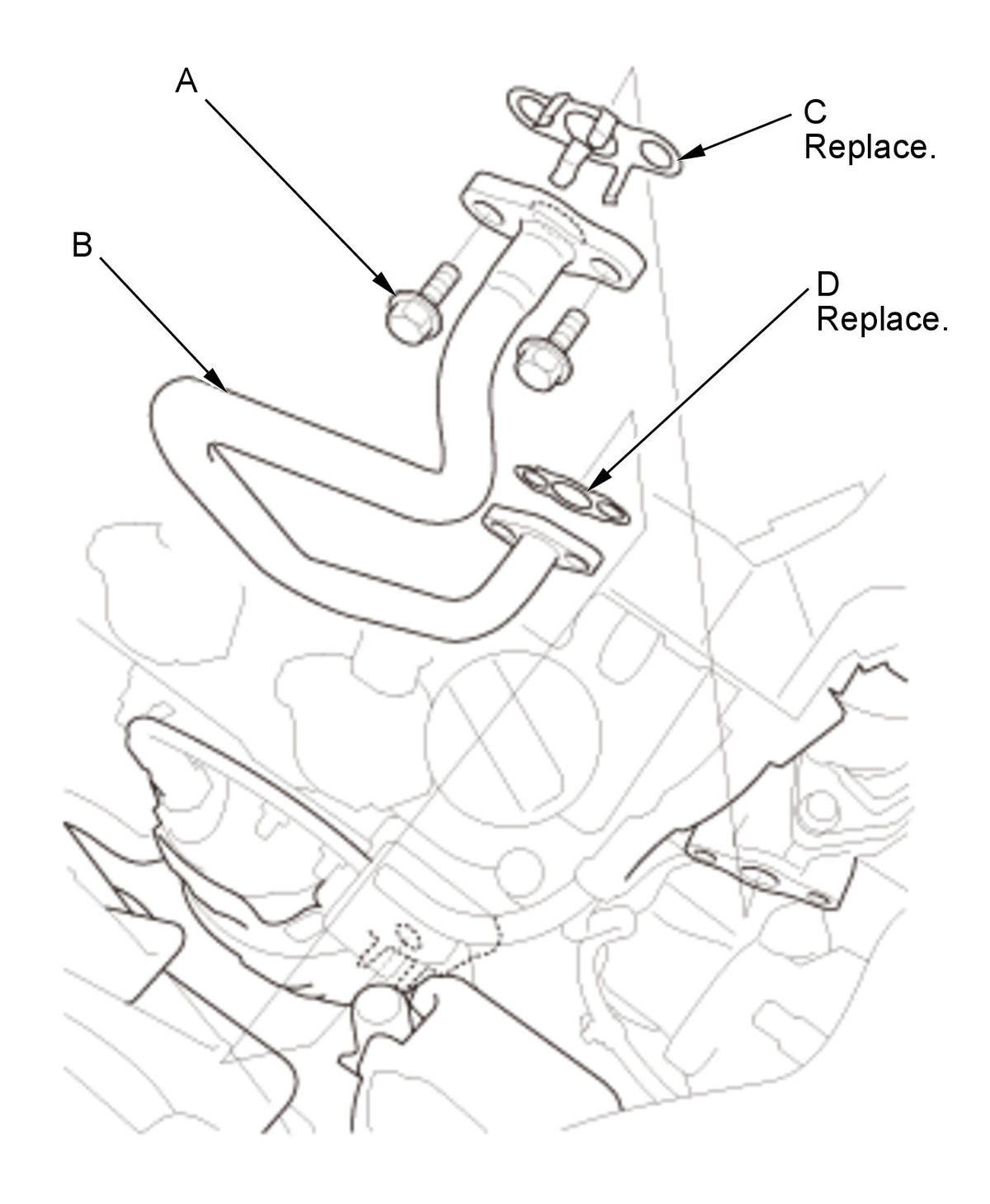

1. Remove the EGR pipe mounting bolts (A).

2. Remove the EGR pipe (B) and gaskets (C and D).
