Shift Lock Release

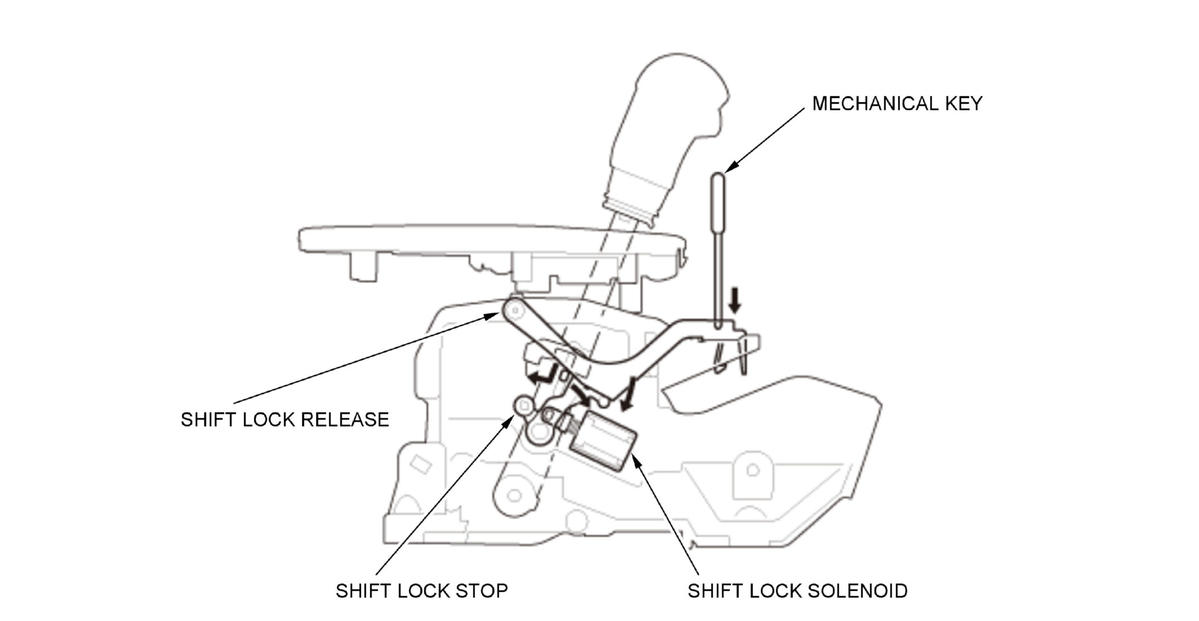

When the shift lock system does not operate for a mechanical or electrical trouble, you can unlock the shift lock temporarily by inserting the mechanical key into the shift lock release hole and pressing the shift lock release. The shift lock release is pressed, the shift lock stop releases the lock pin, and the shift lever can move to any other position.

GHH342333Courtesy of HONDA, U.S.A., INC.
