Engine Block Assembly (2018 2019 2020)

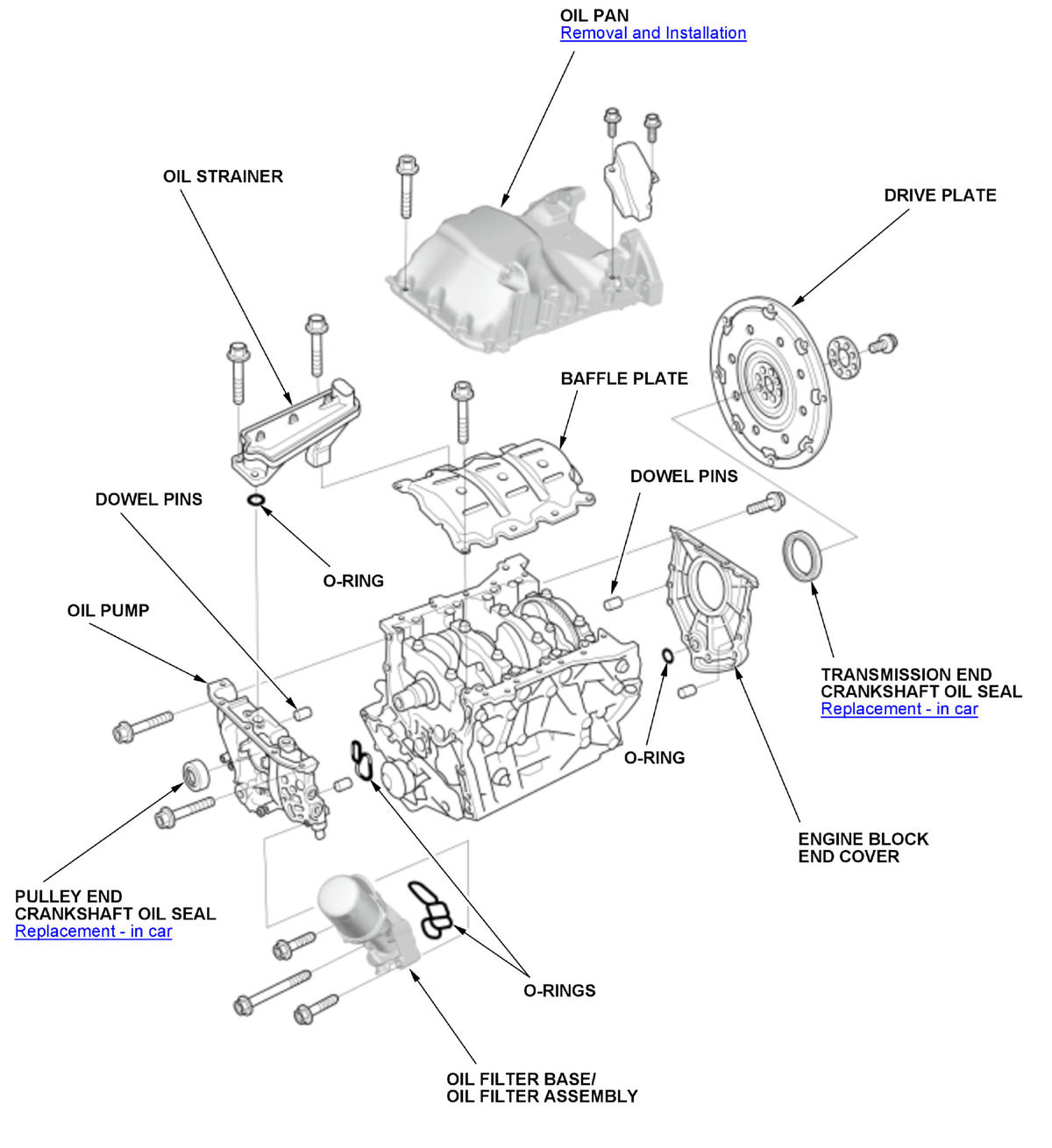

GHH345763

Courtesy of HONDA, U.S.A., INC.

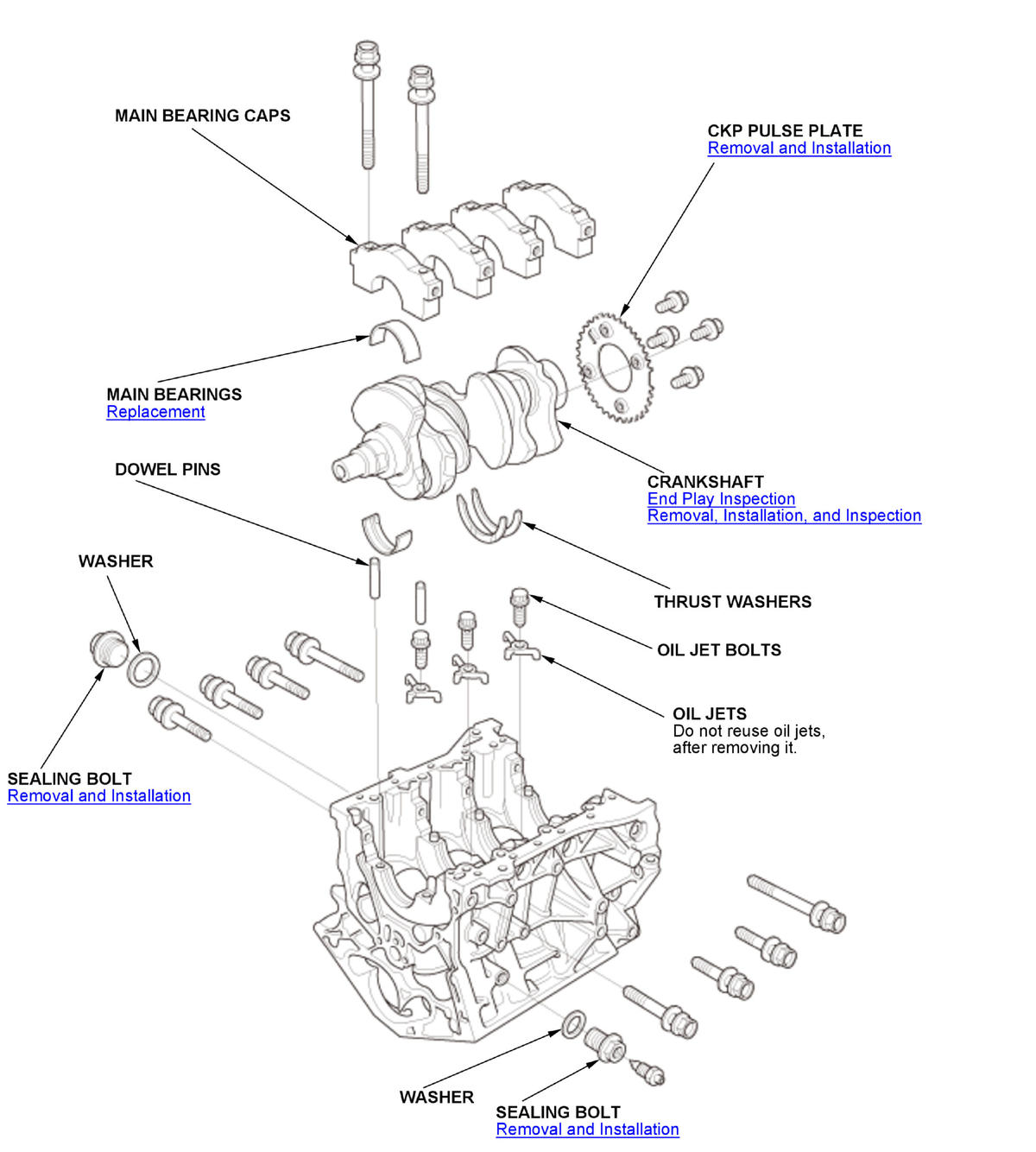

GHH345764

Courtesy of HONDA, U.S.A., INC.

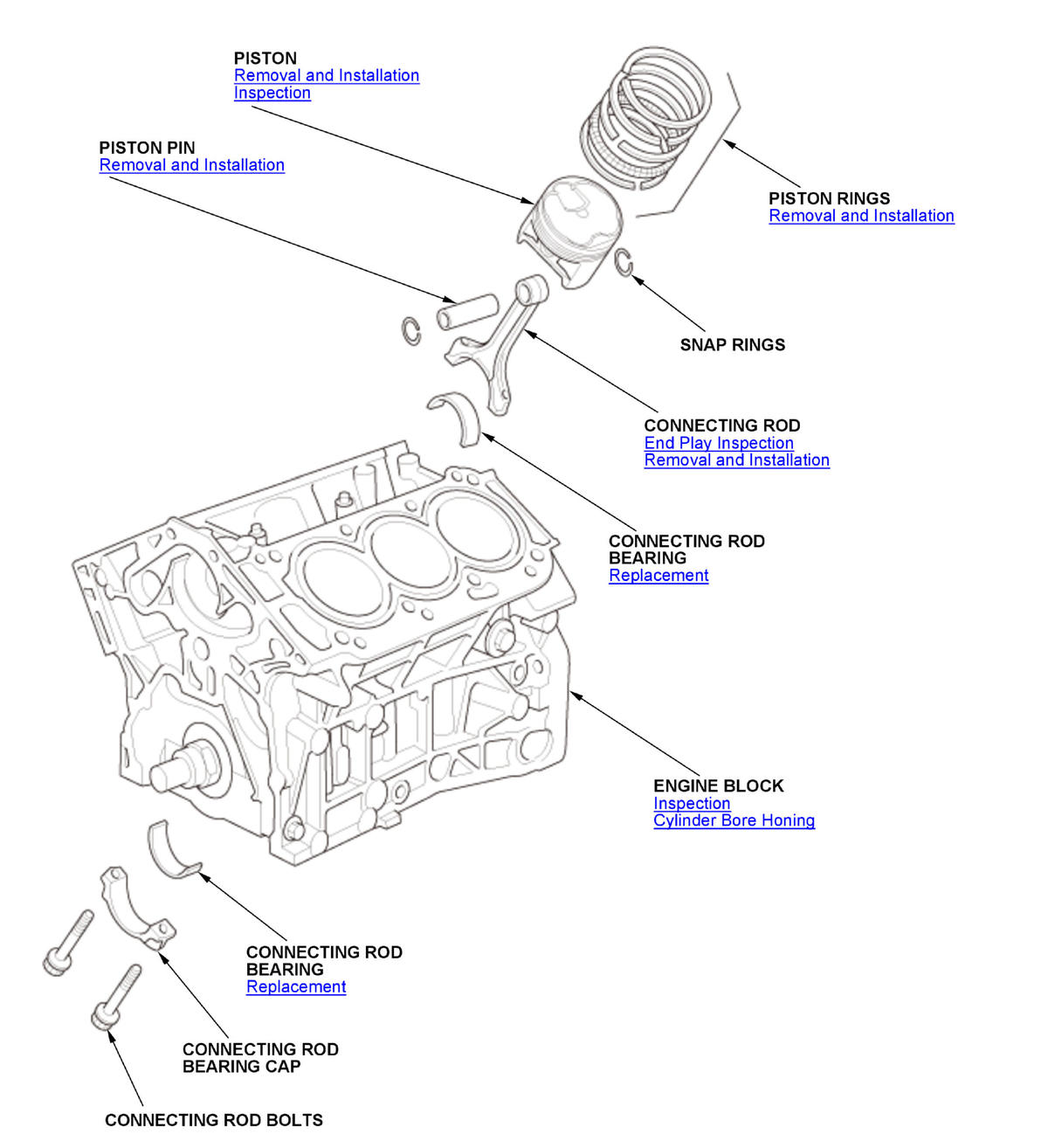

GHH345765

Courtesy of HONDA, U.S.A., INC.
