PGM-FI - Electronic Control
The powertrain control module (PCM) consists of a CPU memory (storage unit) and I/Os that control the fuel injection, injection timing, idling and electronic throttle control system (ETCS).
Fail-Safe Function
When a malfunction occurs in the signal from a sensor or from another control unit, the PCM ignores that signal and substitutes a pre-programmed value that allows the engine to continue running. This causes a Confirmed DTC to be stored and the MIL to come on.
Updated Function
The PCM has a rewritable ROM. The ROM can acquire the latest software version using the MVCI.
MIL Bulb Check and Rediness Code Condition
When the vehicle is turned to the ON mode, the PCM turns on the MIL via the F-CAN circuit for about 15 to 20 seconds to check the bulb condition.
USA and Canada models: If any rediness codes are not set to complete, the MIL flashes five time. If all rediness codes are set to complete, the MIL goes off.
Self Shut Down (SSD) Mode
After the vehicle is turned to the OFF (LOCK) mode, the PCM stays on for up to an hour. If a PCM connector is disconnected during this time, the PCM may be damaged. To cancel this mode, disconnect the negative cable from the 12 volt battery or jump the SCS line with the HDS after the vehicle is turned to the OFF (LOCK) mode.

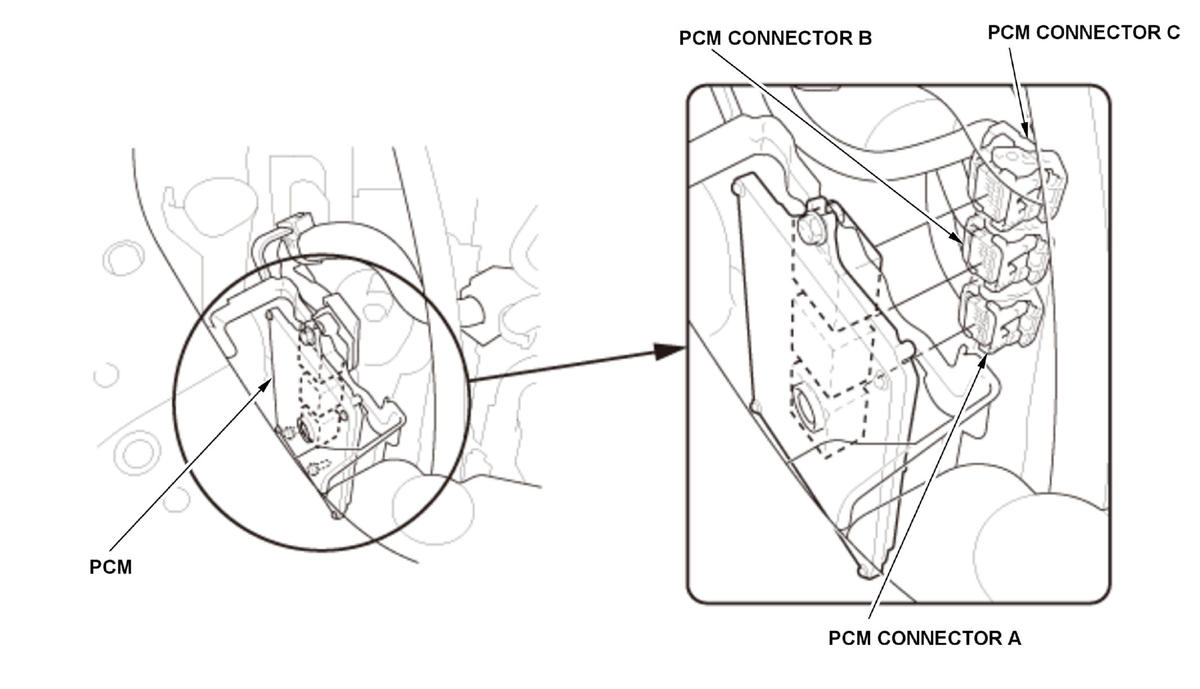

Engine Compartment PCM
For serviceability and weight reduction, the wire harness has been shortened. The PCM is now positioned in the engine compartment. To ensure PCM operation in the engine compartment, the PCM main body and the connectors are water-proof. When diagnostic/troubleshooting is done at the PCM connector, use the terminal test port above the terminal you need to check, not the wire side.
