EGR Pipe Removal And Installation: Installation

  1. EGR Pipe - Install

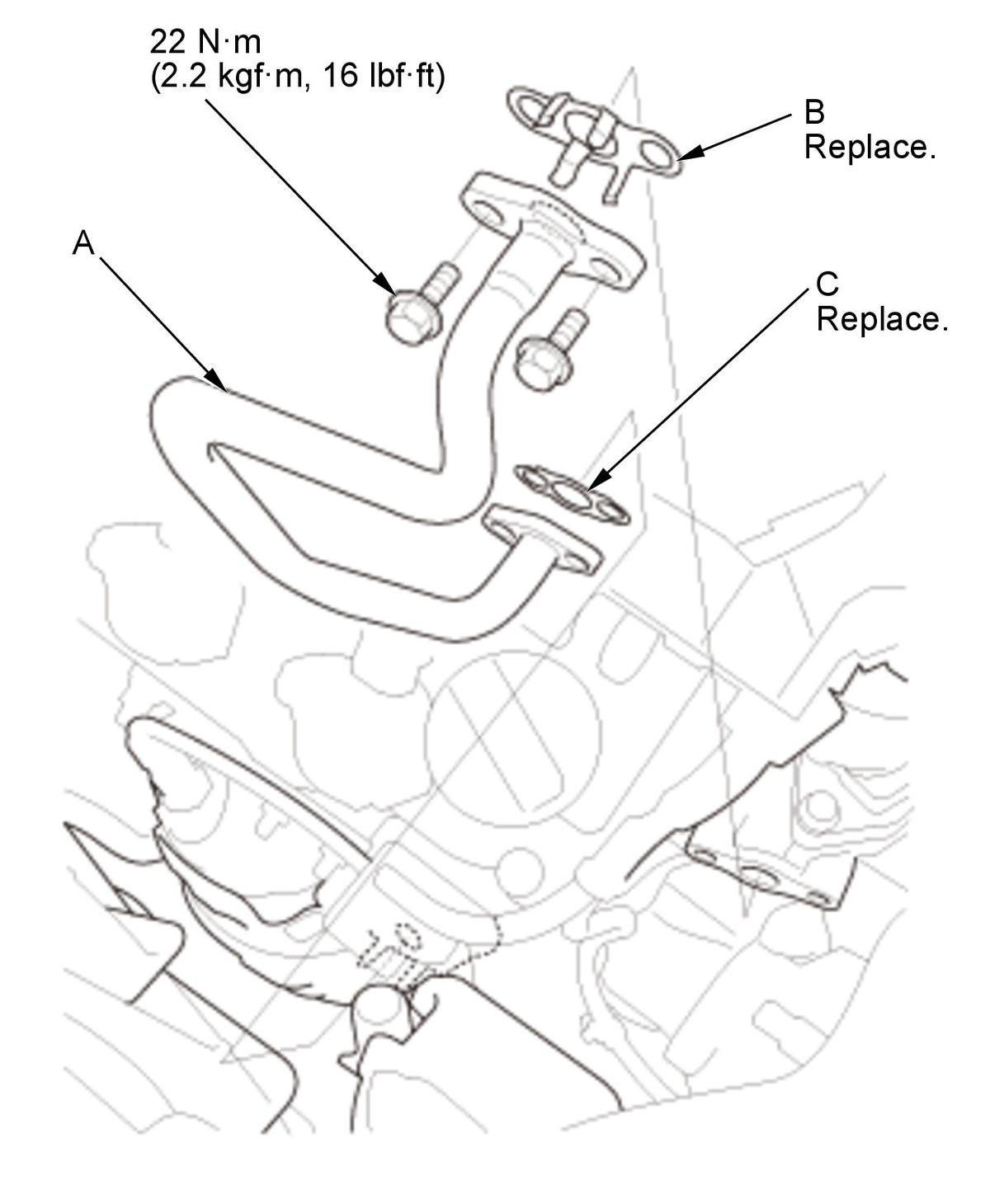

    Fig 1: EGR Pipe With Torque Specifications
    GHH345864Courtesy of HONDA, U.S.A., INC.

    Install the EGR pipe (A) with new gaskets (B and C).

  2. EGR Pipe Mounting Nuts - Install

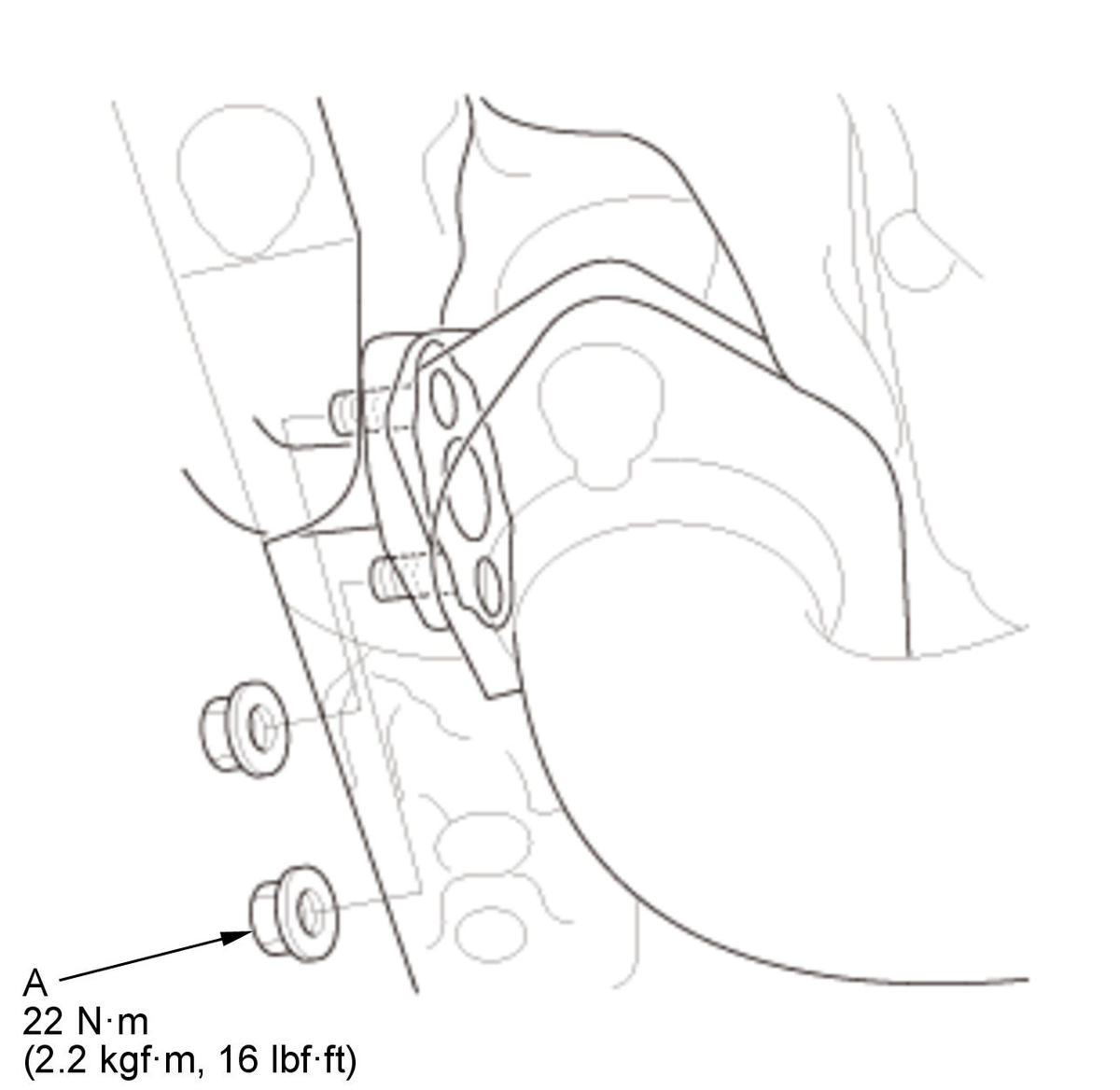

    Fig 2: EGR Pipe Mounting Nuts With Torque Specifications
    GHH345865Courtesy of HONDA, U.S.A., INC.

    Install the EGR pipe mounting nuts (A).

  3. Engine Undercover - Install

    Install the engine undercover .

  4. Engine Cover - Install

    Install the engine cover .
