Injector Control Module Removal And Installation: Removal

  1. Battery Terminal - Disconnect

    Do the battery terminal disconnection procedure .

  2. Injector Control Module Cover - Remove

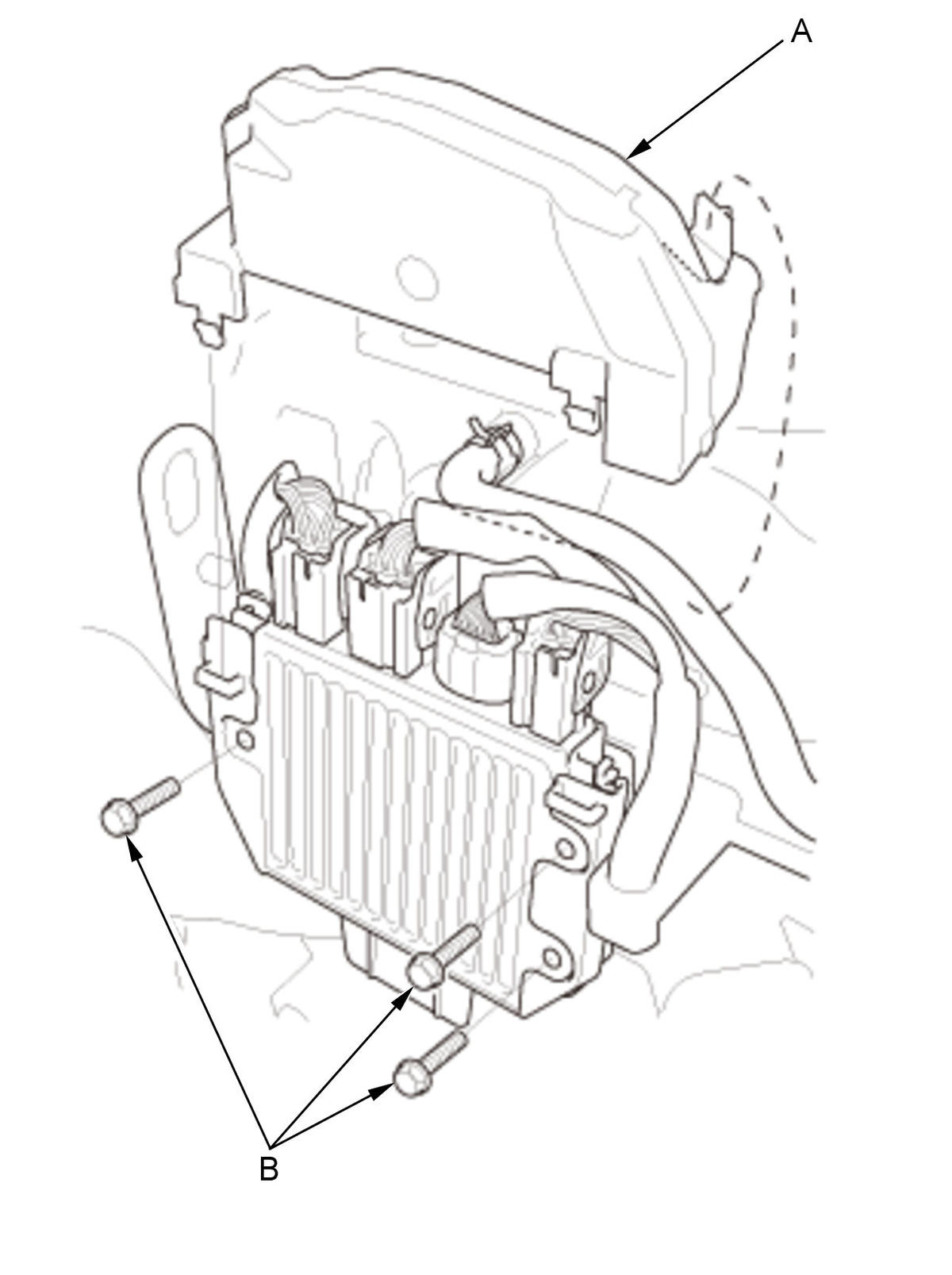

    GHH346021Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the bolts (B).

    2. Remove injector control module cover A.
  3. Injector Control Module - Remove

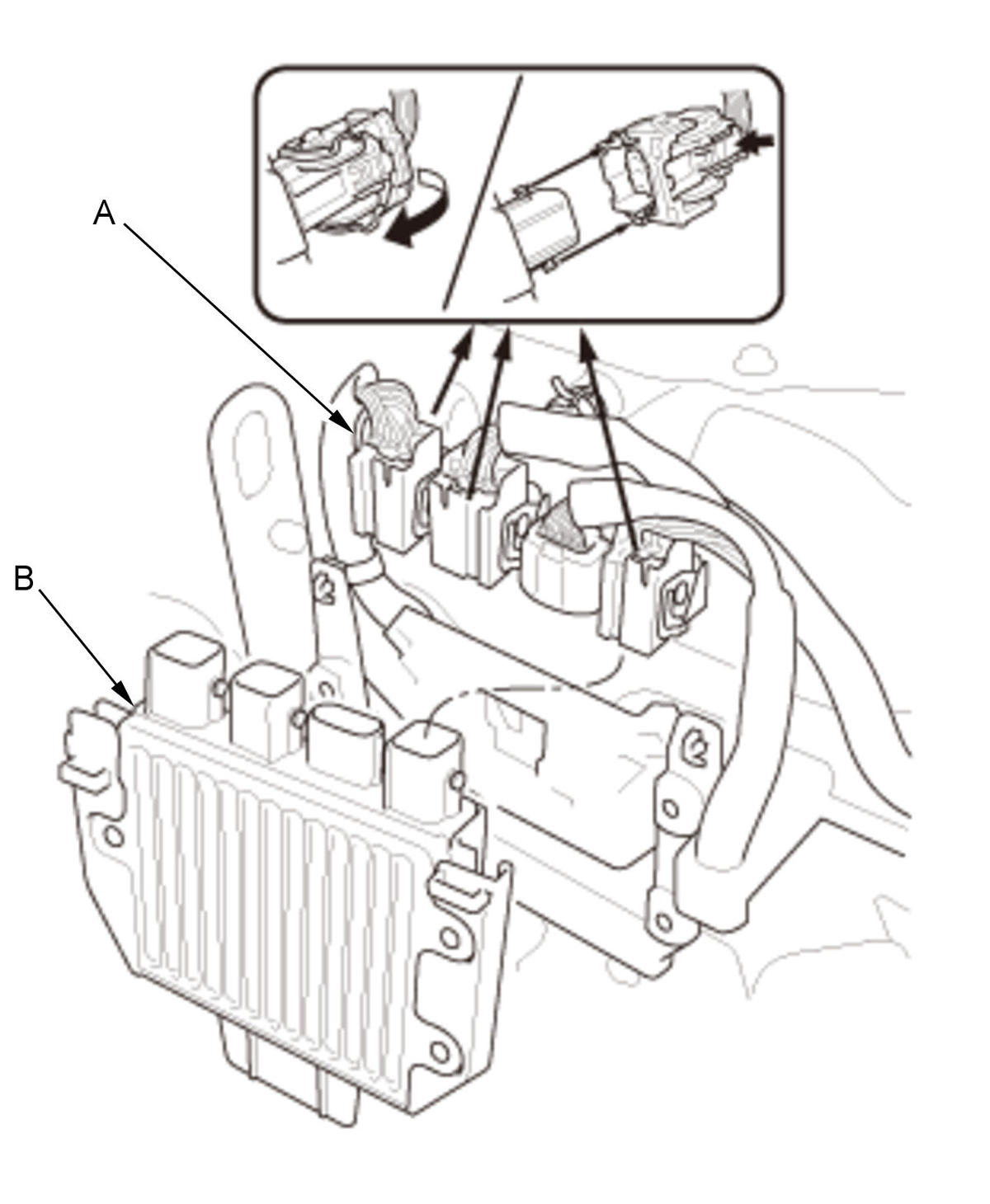

    GHH346022Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the injector control module connectors (A), then remove the injector control module (B).

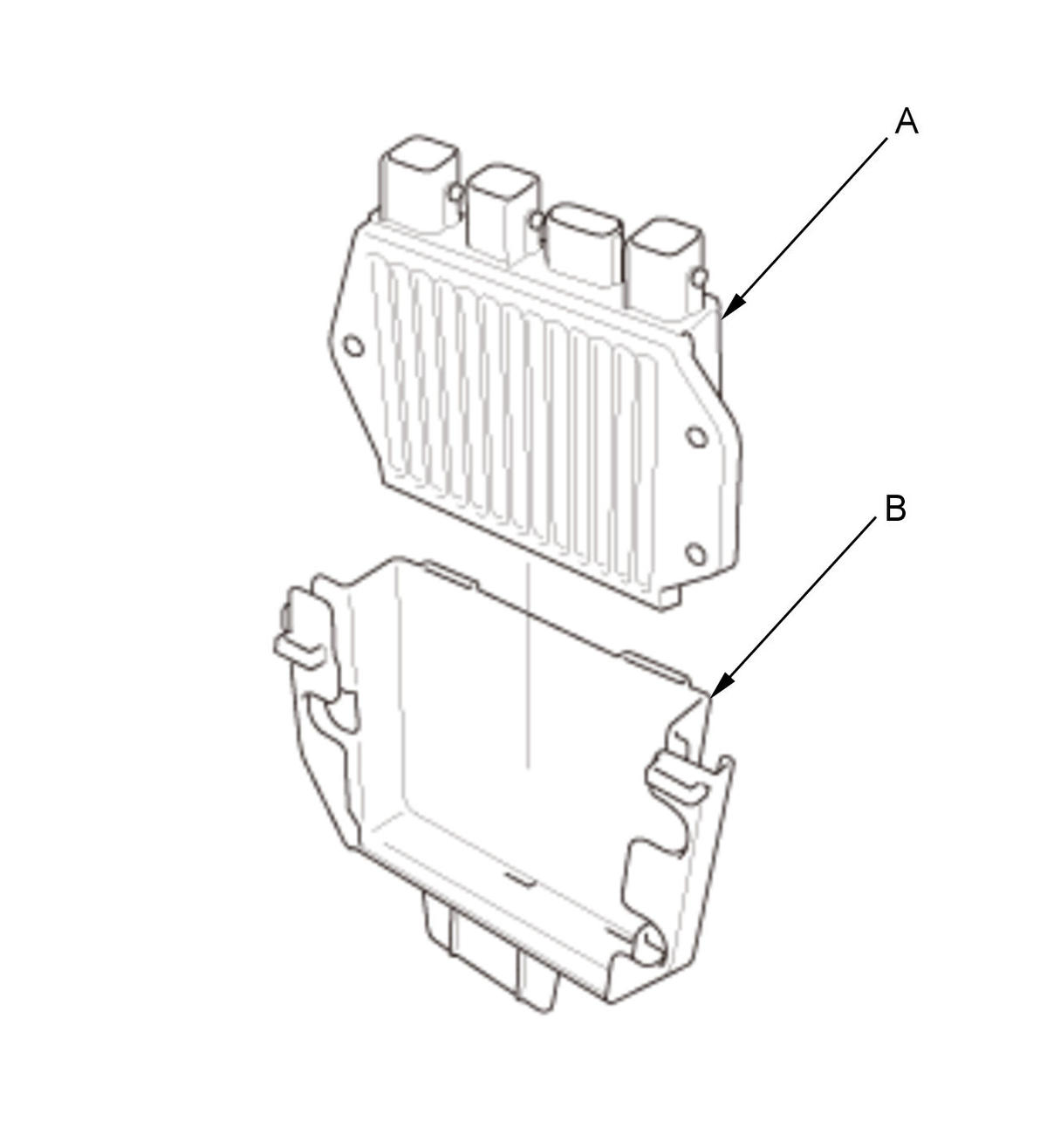

    GHH346023Courtesy of HONDA, U.S.A., INC.
    		 2. Remove injector control module cover B from the injector control module (A).
