Injector Control Module Removal And Installation: Installation

  1. Injector Control Module - Install

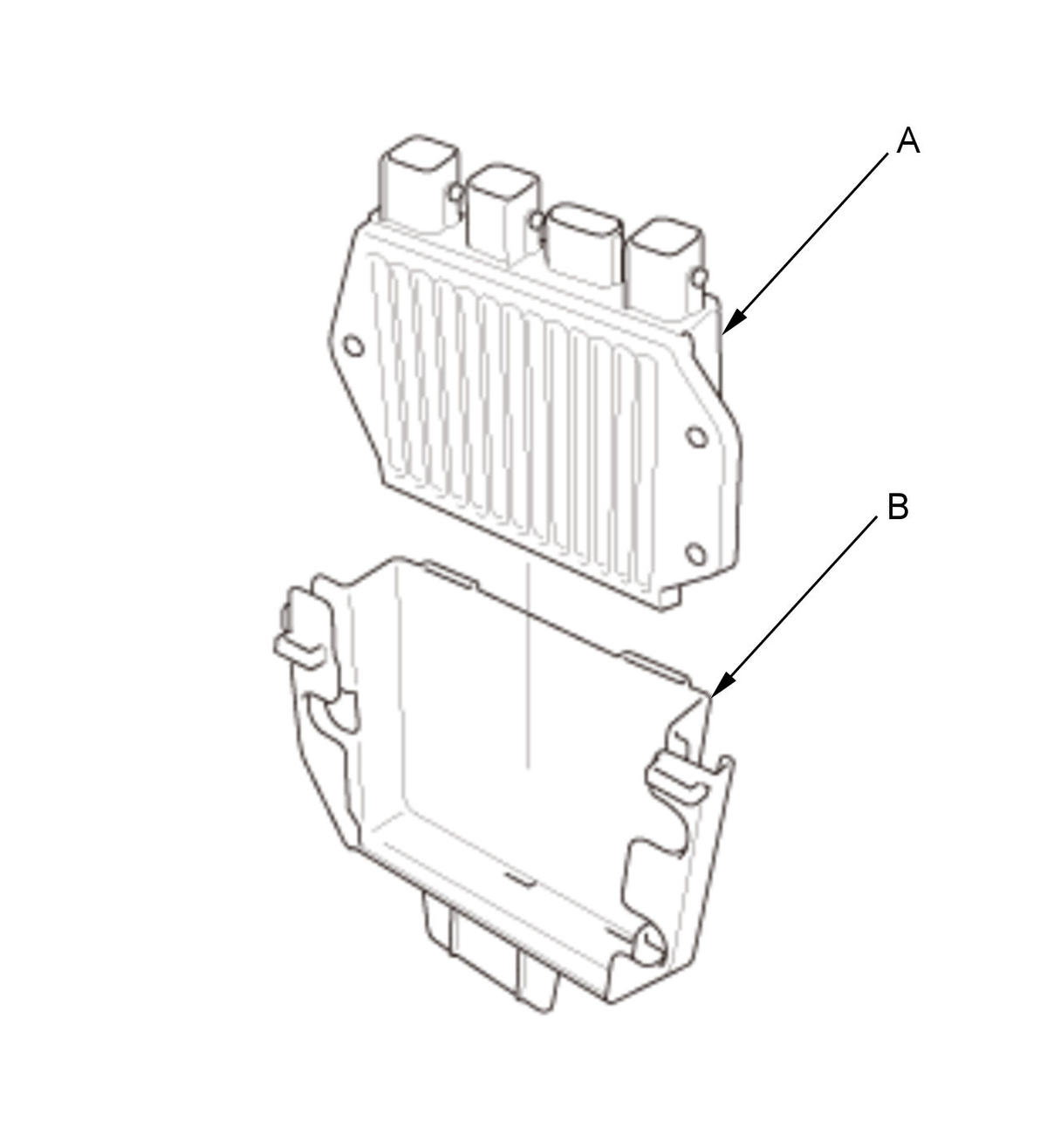

    GHH346024Courtesy of HONDA, U.S.A., INC.
    		 1. Install the injector control module (A) into injector control module cover B.

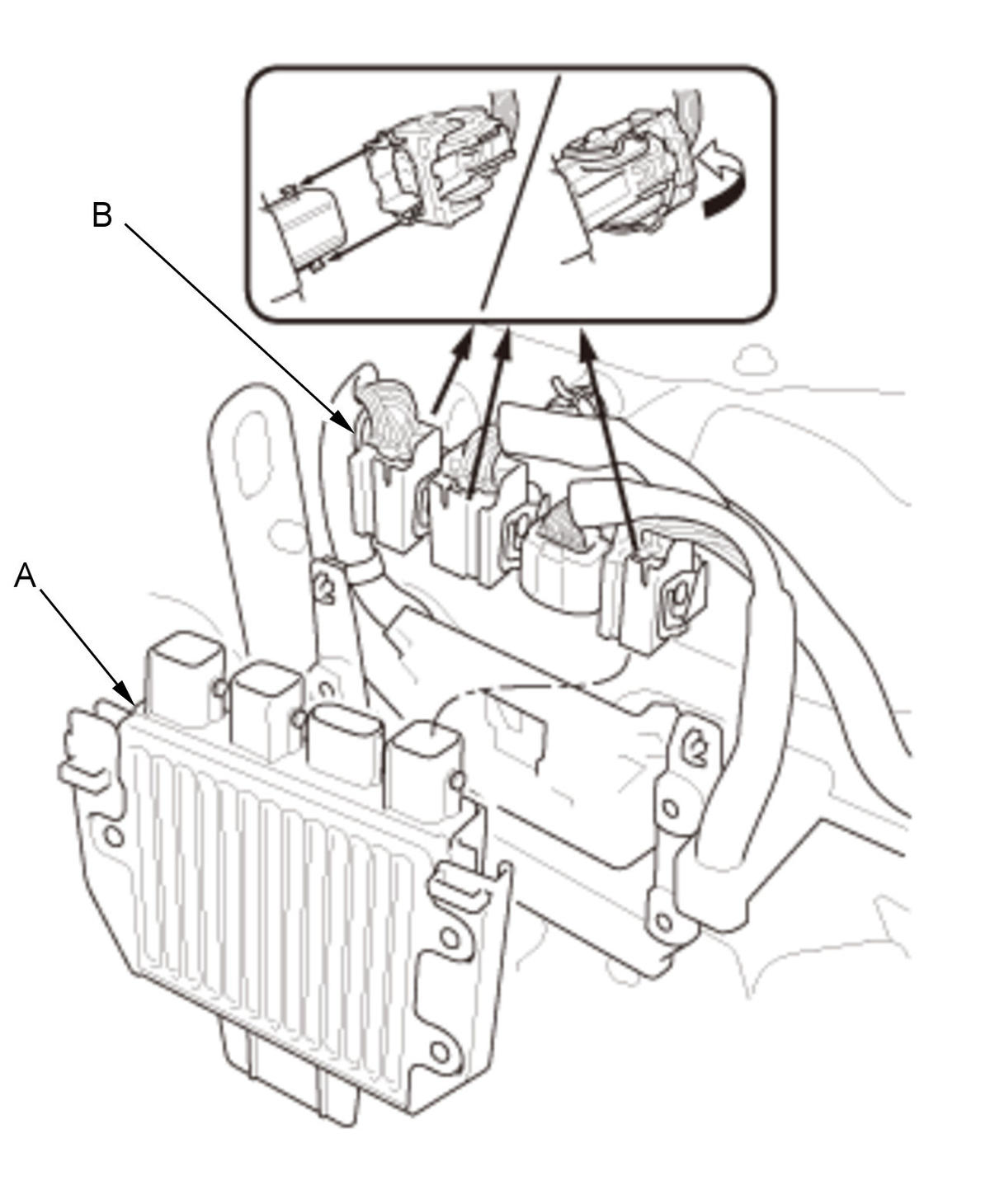

    GHH346025Courtesy of HONDA, U.S.A., INC.
    		 2. Install the injector control module (A), then connect the injector control module connectors (B).
  2. Injector Control Module Cover - Install

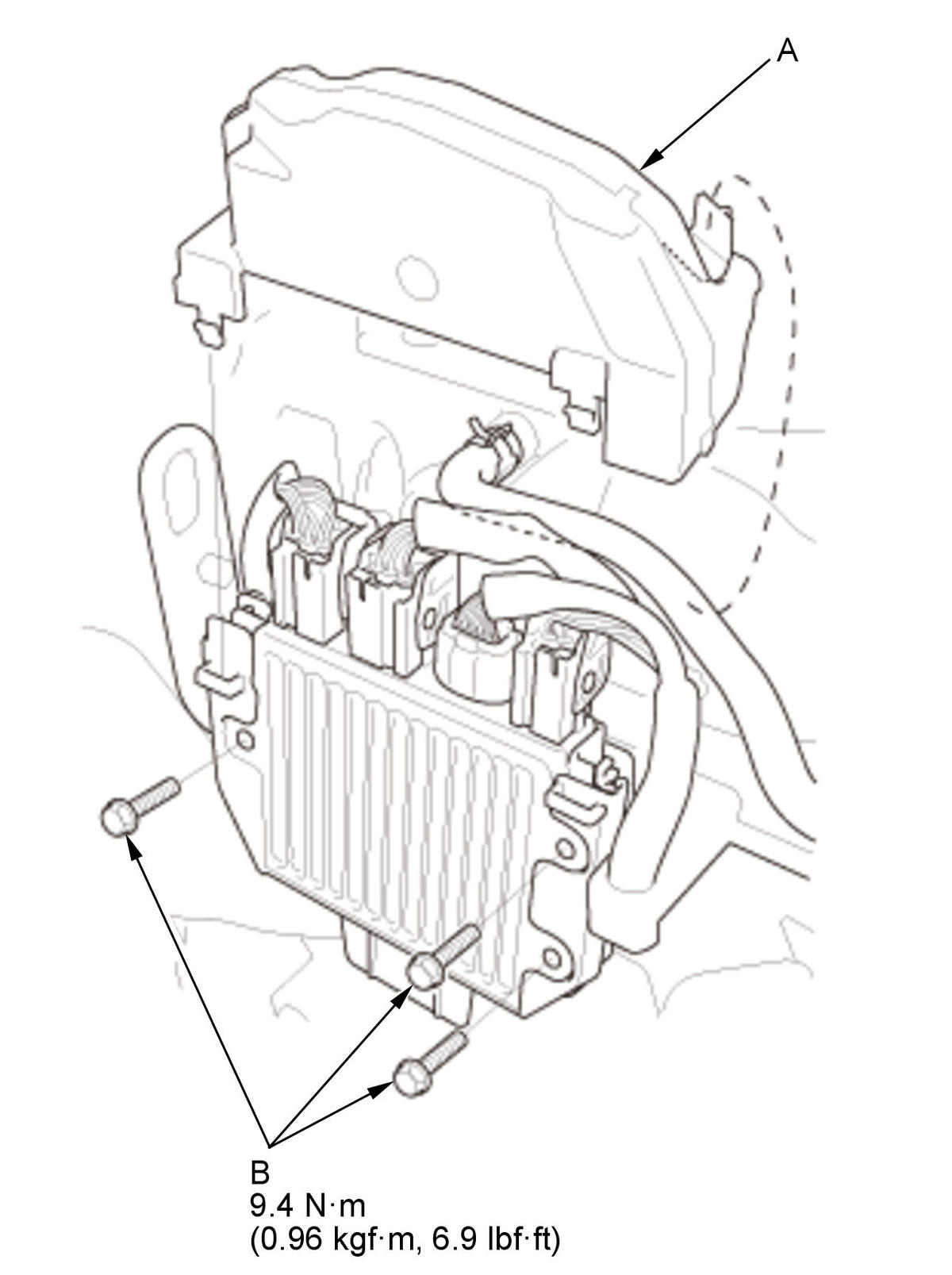

    GHH346026Courtesy of HONDA, U.S.A., INC.
    		 1. Install injector control module cover A.

    2. Install the bolts (B).
  3. Battery Terminal - Connect

    Do the battery terminal reconnection procedure .
