Interface Dial Connector for Inputs and Outputs (Navigation System) (2019 2020)

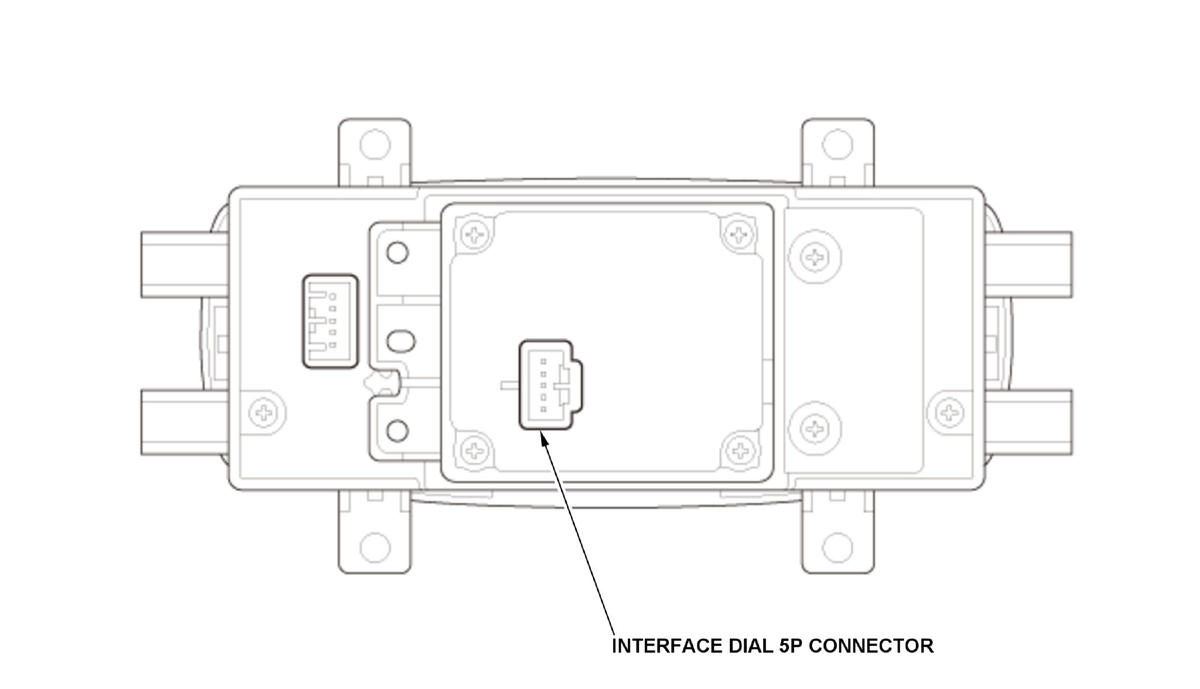

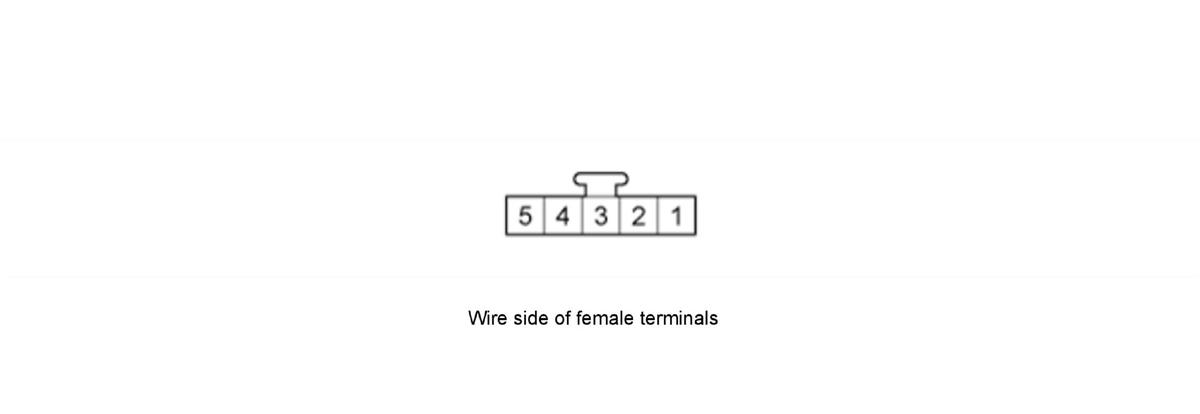

INTERFACE DIAL 5P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description | Voltage (about) | Symptom |
|---|---|---|---|---|---|
| 1 | Not used | Not used | --- | --- | --- |
| 2 | YEL | AUDIO DIODE- | Power source for interface dial or detects reverse signal | Vehicle in ACCESSORY mode or in R position/mode: Battery voltage | If open: You cannot operate navigation system. If short to ground: Blows the No. D13 fuse . |
| 3 | BLK | GND | Ground for interface dial (G601) | Vehicle in ACCESSORY mode: Less than 0.2 V | If open: You cannot operate navigation system. If short to ground: No effect on system. |
| 4 | GRY | SH JOG | Shield for terminal No. 5 | 0 V | If open/short to ground: No effect on system. |
| 5 | WHT | JOG | Outputs interface dial and center switch panel operation signal | Vehicle in ACCESSORY mode: Pulses (depends on bus traffic) | If open/short: You cannot operate navigation system. |
