Navigation System Component Location Index

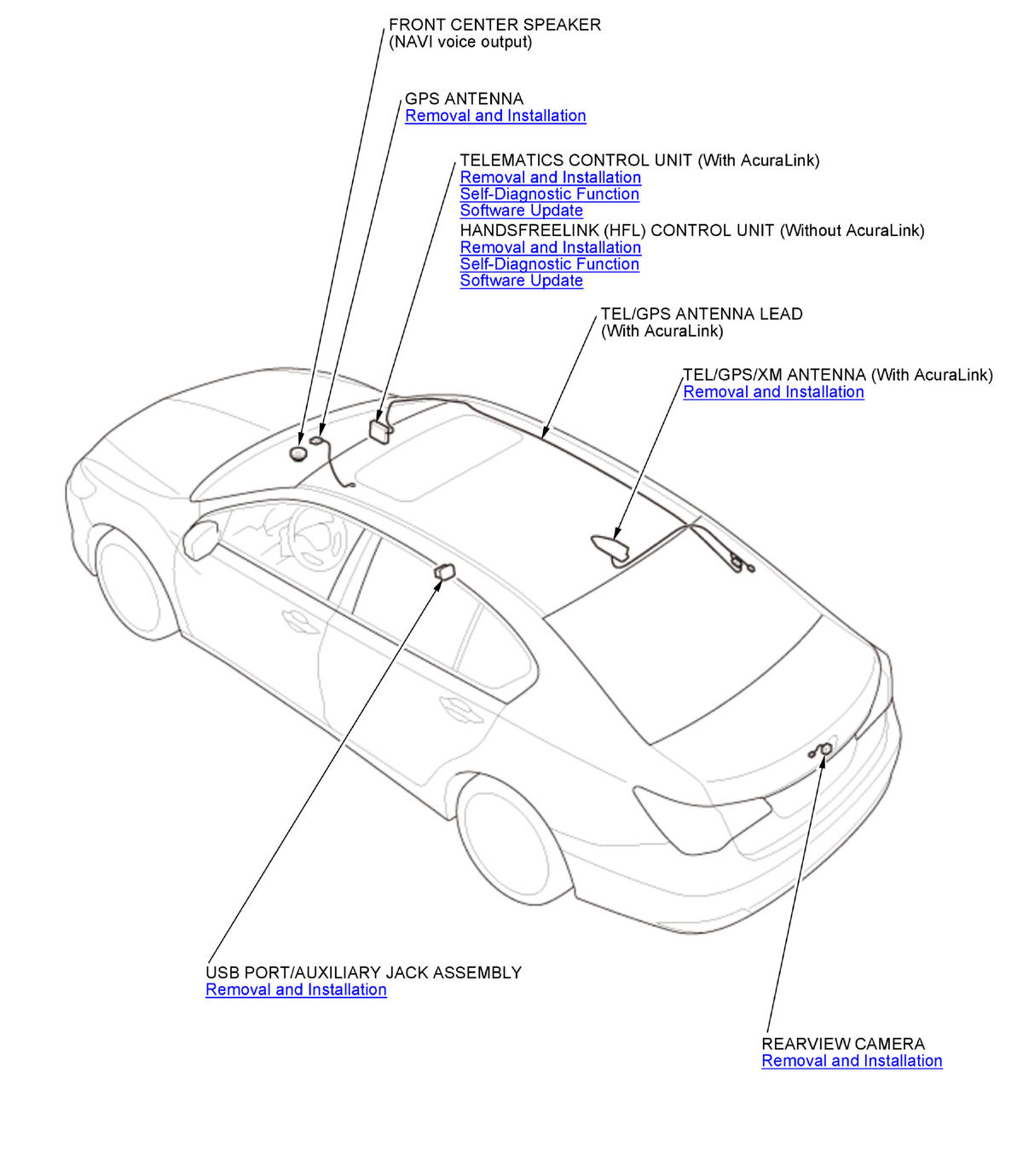

GHH349574

Courtesy of HONDA, U.S.A., INC.

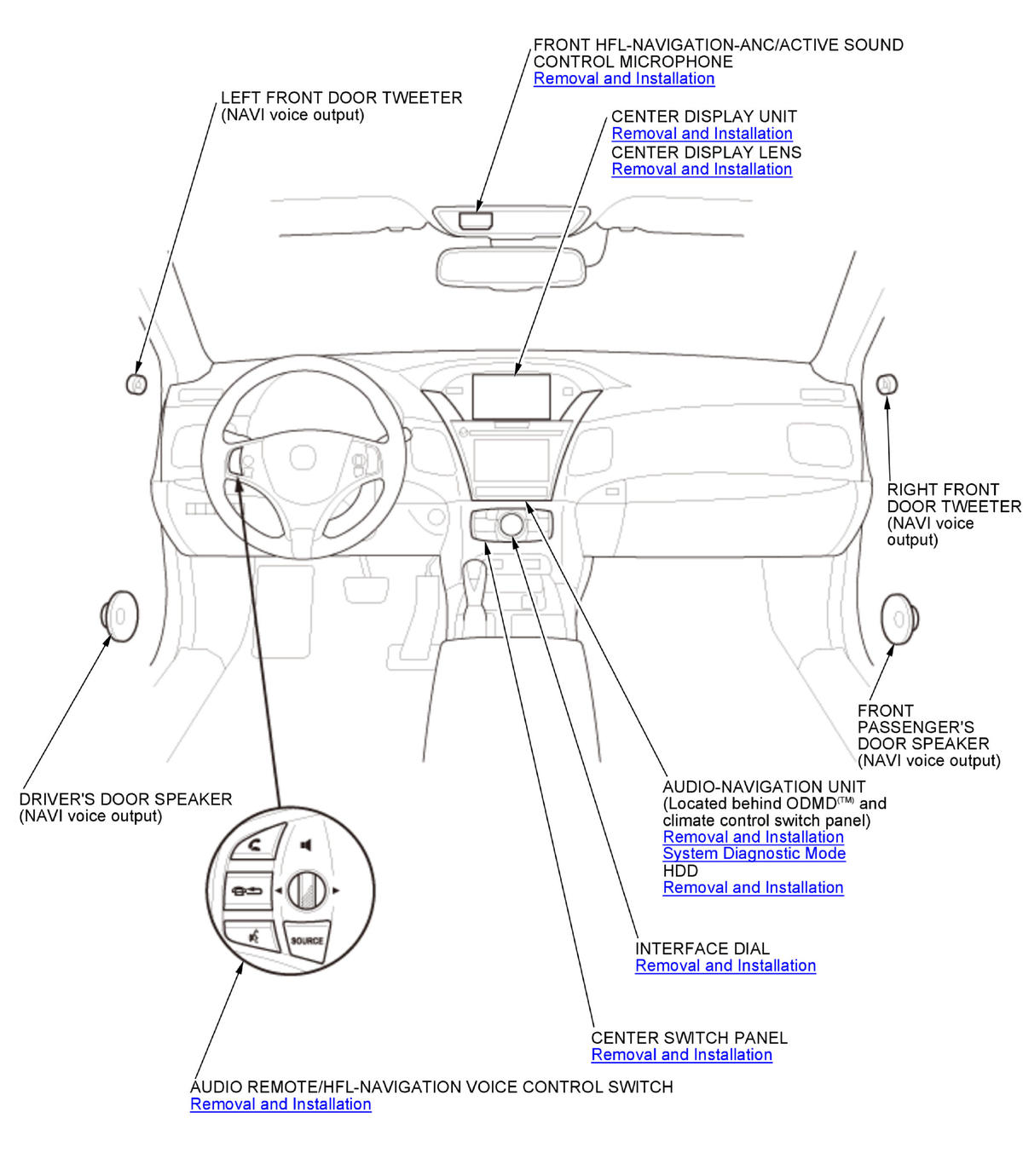

GHH349575

Courtesy of HONDA, U.S.A., INC.
