Audio System Component Location Index (With Navigation)

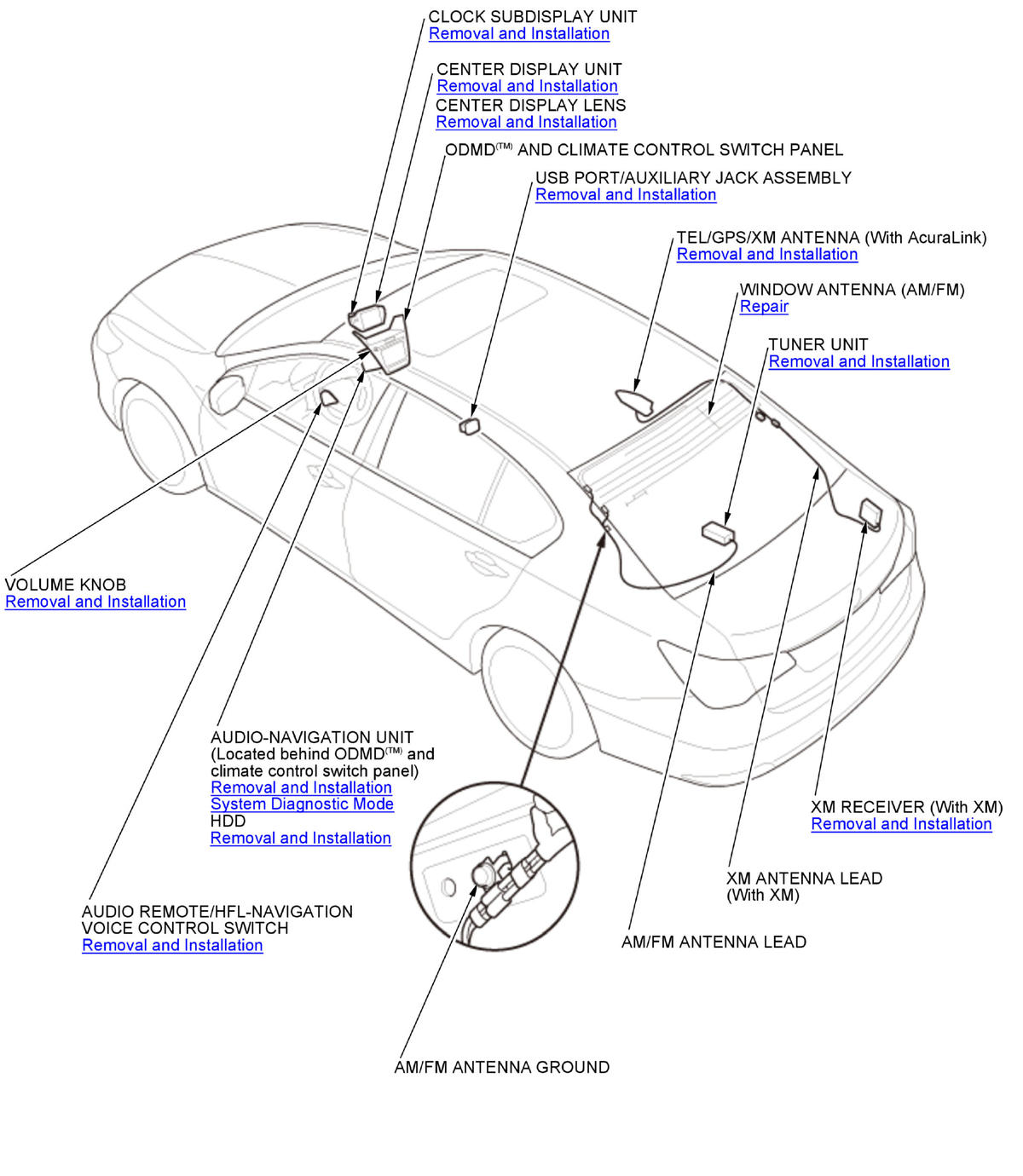

GHH341114

Courtesy of HONDA, U.S.A., INC.

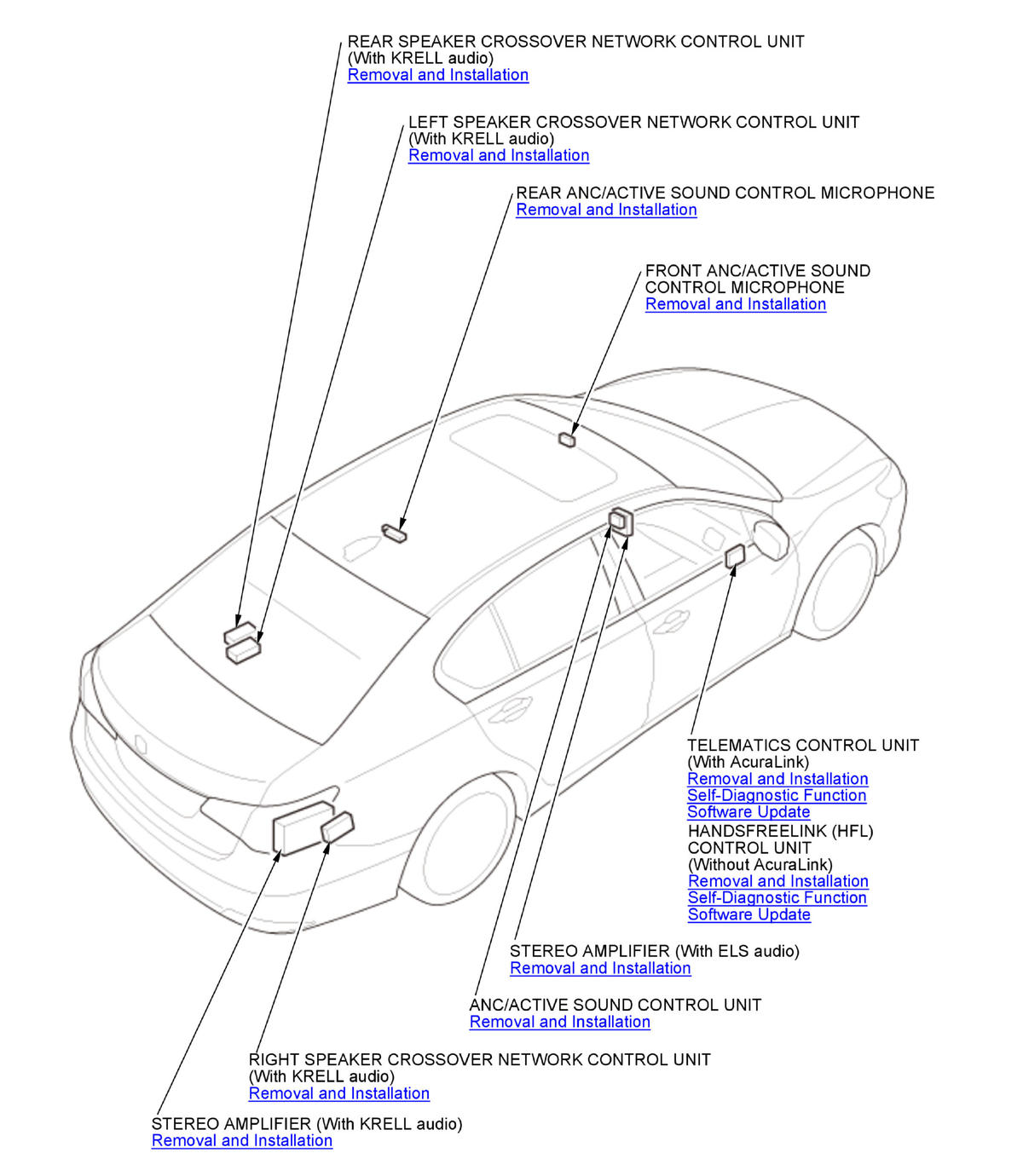

GHH341115

Courtesy of HONDA, U.S.A., INC.

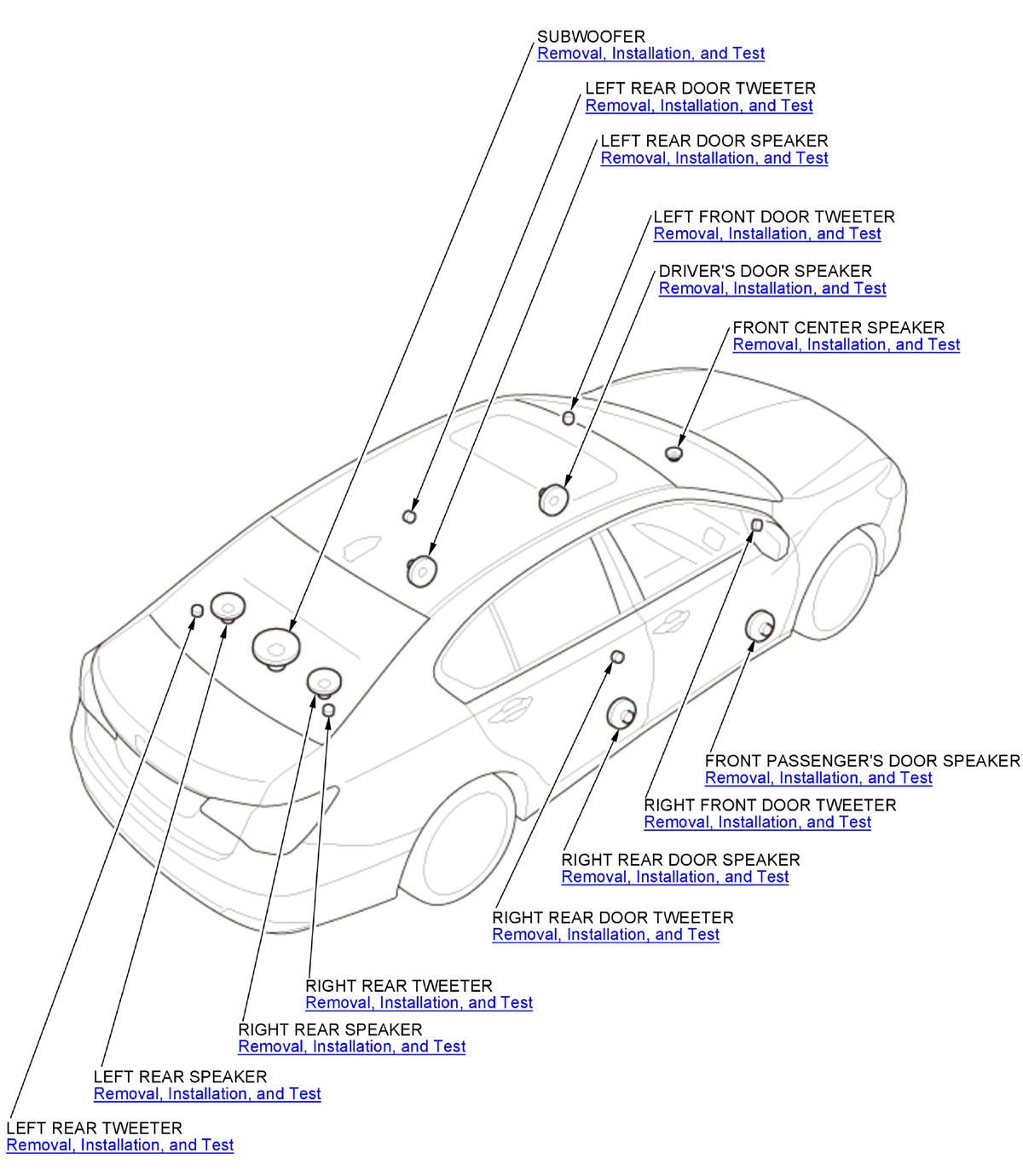

GHH341116

Courtesy of HONDA, U.S.A., INC.
