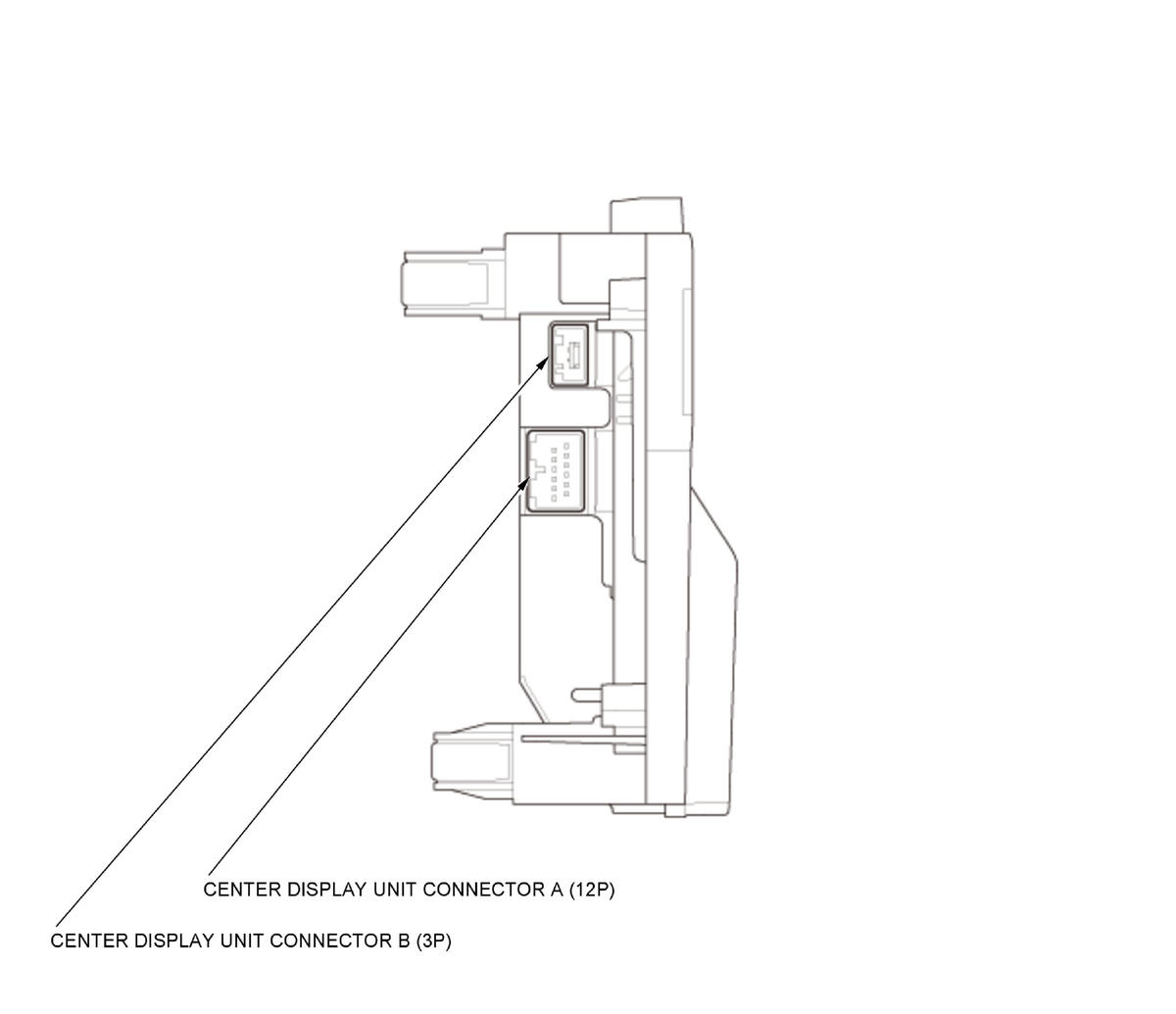

Center Display Unit Connector for Inputs and Outputs (Audio System)

GHH341213

Courtesy of HONDA, U.S.A., INC.

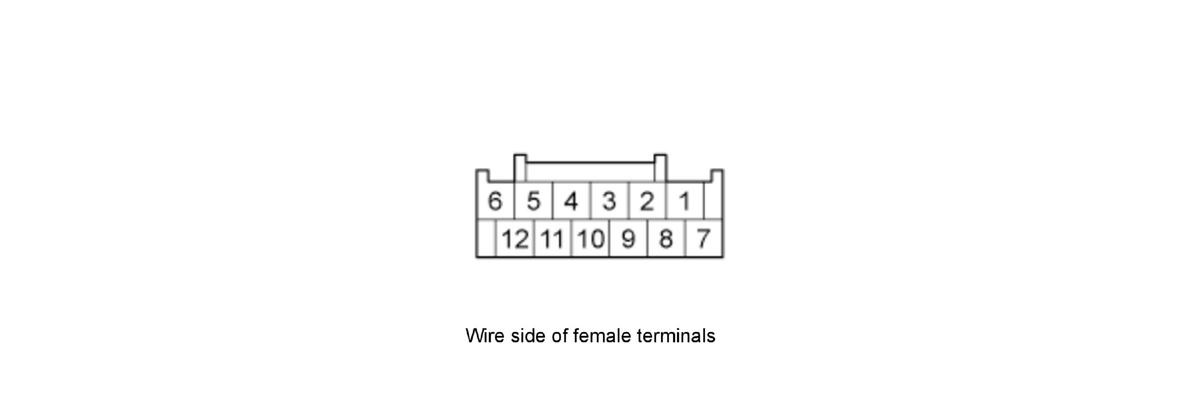

CENTER DISPLAY UNIT CONNECTOR A (12P)

GHH341214

Courtesy of HONDA, U.S.A., INC.

Cavity	Wire Color	Terminal Name	Description
A1	PNK	GA BUS+	GA-Net bus communication signal
A2	BLU	GA BUS-	GA-Net bus communication signal
A3	PNK	DISP CONT	Inputs center display unit control signal

Cavity	Wire Color	Terminal Name	Description
A4	ORN	IG1 METER	IG1 power source
A5	PUR	ACC	Power source for accessories
A6	PUR	+B BACK UP AUDIO	Continuous power source
A7	GRY	SH GA BUS	Shield for terminals No. 1 and No. 2
A8	Not used	Not used	---
A9	YEL	ILLUMI+	Detects parking light on signal
A10	LT GRN	SCTY RADIO SW	Security signal from MICU
A11	GRN	SCTY RADIO SW2	Security signal to audio unit
A12	BLK	GND	Ground for center display unit (G601)

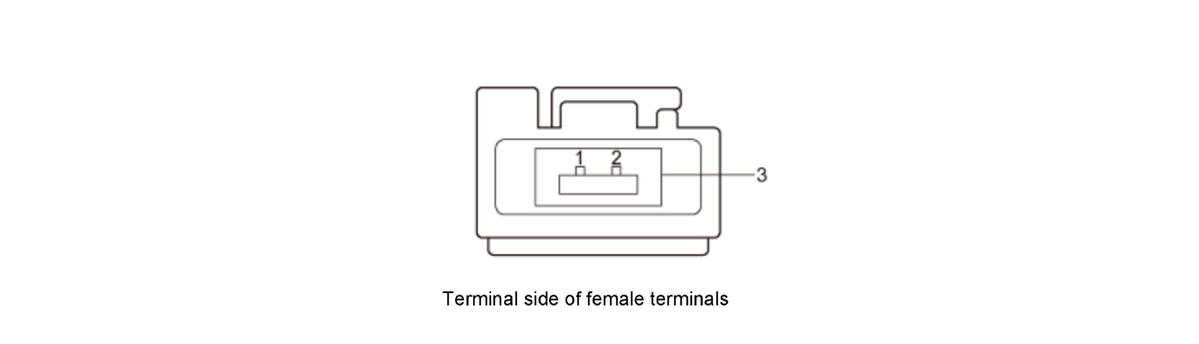

CENTER DISPLAY UNIT CONNECTOR B (3P)

GHH341215

Courtesy of HONDA, U.S.A., INC.

Cavity	Wire Color	Terminal Name	Description
B1	---	GVIF-	Inputs video signal
B2	---	GVIF+	Inputs video signal
B3	---	GVIF SH	Shield for terminals No. 1 and No. 2
