Multi View Camera Unit Connector for Inputs and Outputs

Connector Index

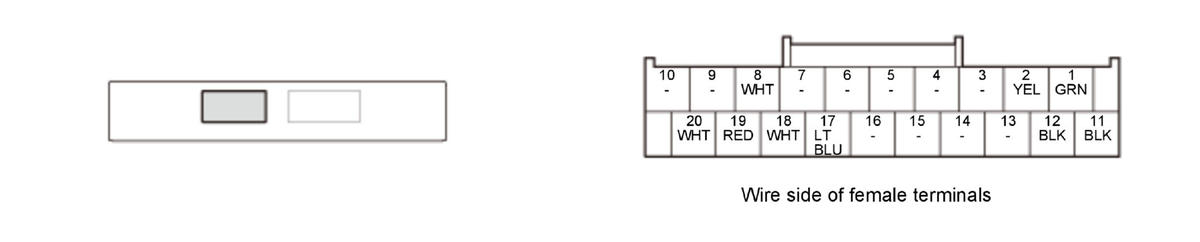

Multi View Camera Unit Connector A (20P)
Multi View Camera Unit Connector B (24P)

Multi View Camera Unit Connector A (20P)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	+B FLYING START	Power supply for backup memory	Battery voltage
2	IG1 DR1	Power supply for multi view camera control unit	Vehicle in ON mode: Battery voltage Vehicle in OFF (LOCK) mode: About 0 V
3	Not used	---	---
4	Not used	---	---
5	Not used	---	---
6	Not used	---	---
7	Not used	---	---
8	R/C MIRR F	Detects power mirror switch signal	Vehicle in ON mode: Battery voltage Vehicle in OFF (LOCK) mode: About 0 V
9	Not used	---	---
10	Not used	---	---
11	GND	Ground circuit for multi view camera control unit	Less than 0.2 V at all times
12	GND	Ground circuit for multi view camera control unit	Less than 0.2 V at all times
13	Not used	---	---
14	Not used	---	---
15	Not used	---	---
16	Not used	---	---
17	MVS VID SW	Multi view camera visual switching signal	---
18	MVS SW	Multi view camera switch	---
19	B-CAN_H	B-CAN communication (high) circuit	---
20	B-CAN_L	B-CAN communication (low) circuit	---

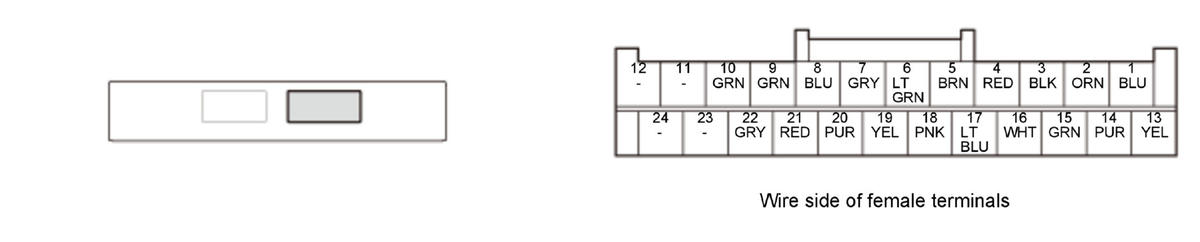

Multi View Camera Unit Connector B (24P)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	F CAM VID	Video signal for front camera	---
2	F CAM VCC	Power source for front camera	---
3	R CAM VID	Video signal for rear camera	---
4	R CAM VCC	Power source for rear camera	---
5	SR CAM VID	Video signal for right side camera	---
6	SR CAM VCC	Power source for right side camera	---
7	SL CAM VID	Video signal for left side camera	---
8	SL CAM VCC	Power source for left side camera	---
9	MVS CHK	Control signal for multi view camera	---
10	MVS VID	Video signal for multi view camera	---
11	Not used	---	---
12	Not used	---	---
13	F CAM VID GND	Shield for terminal No. B1, B2, and B14	Less than 0.2 V at all times
14	F CAM GND	Ground for front camera	Less than 0.2 V at all times
15	R CAM VID GND	Shield for terminal No. B3, B4, and B16	Less than 0.2 V at all times
16	R CAM GND	Ground for rear camera	Less than 0.2 V at all times
17	SR CAM VID GND	Shield for terminal No. B5, B6, and B18	Less than 0.2 V at all times
18	SR CAM GND	Ground for right side camera	Less than 0.2 V at all times
19	SL CAM VID GND	Shield for terminal No. B7, B8, and B20	Less than 0.2 V at all times
20	SL CAM GND	Ground for left side camera	Less than 0.2 V at all times
21	MVS GND	Ground for multi view camera	Less than 0.2 V at all times
22	SH MVS VID	Shield for terminals No. B10 and No. B21	Less than 0.2 V at all times
23	Not used	---	---
24	Not used	---	---
