Blind Spot / Sight Support - Testing & Troubleshooting (Except Hybrid)
>>
Component Location Index
>>

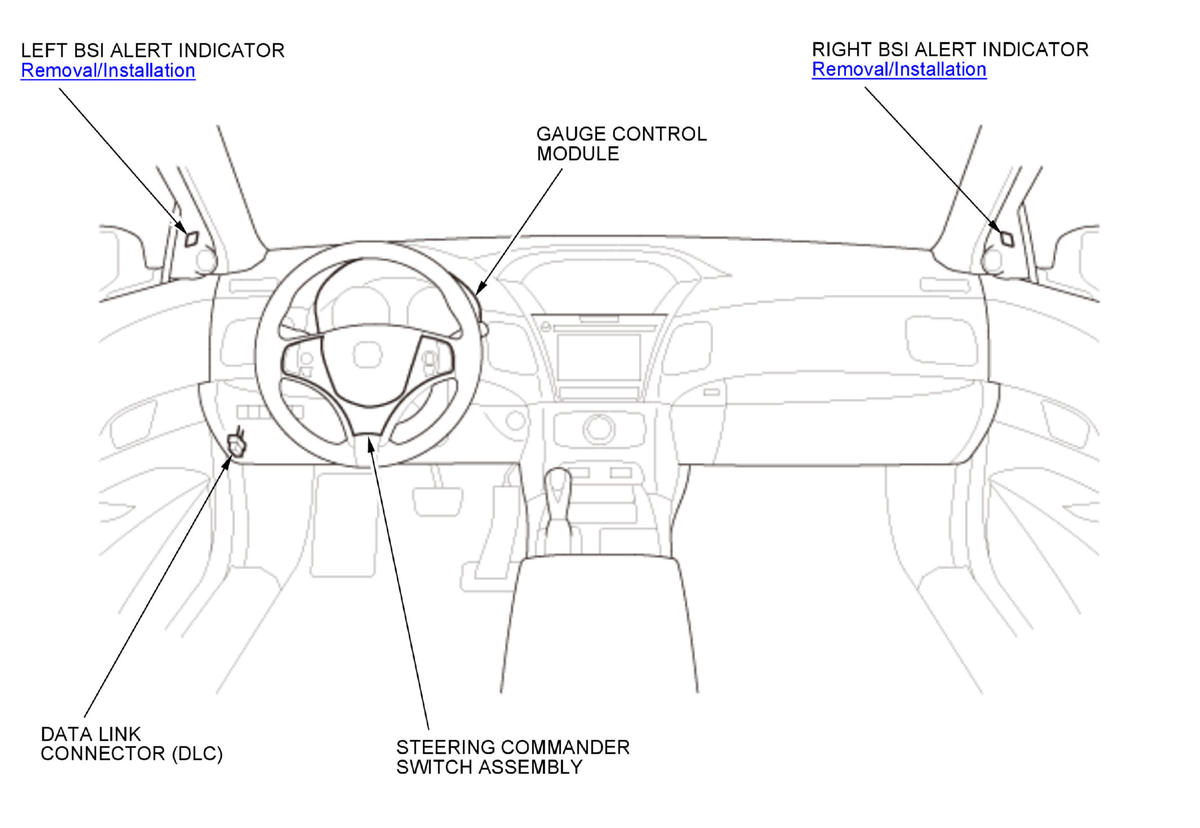

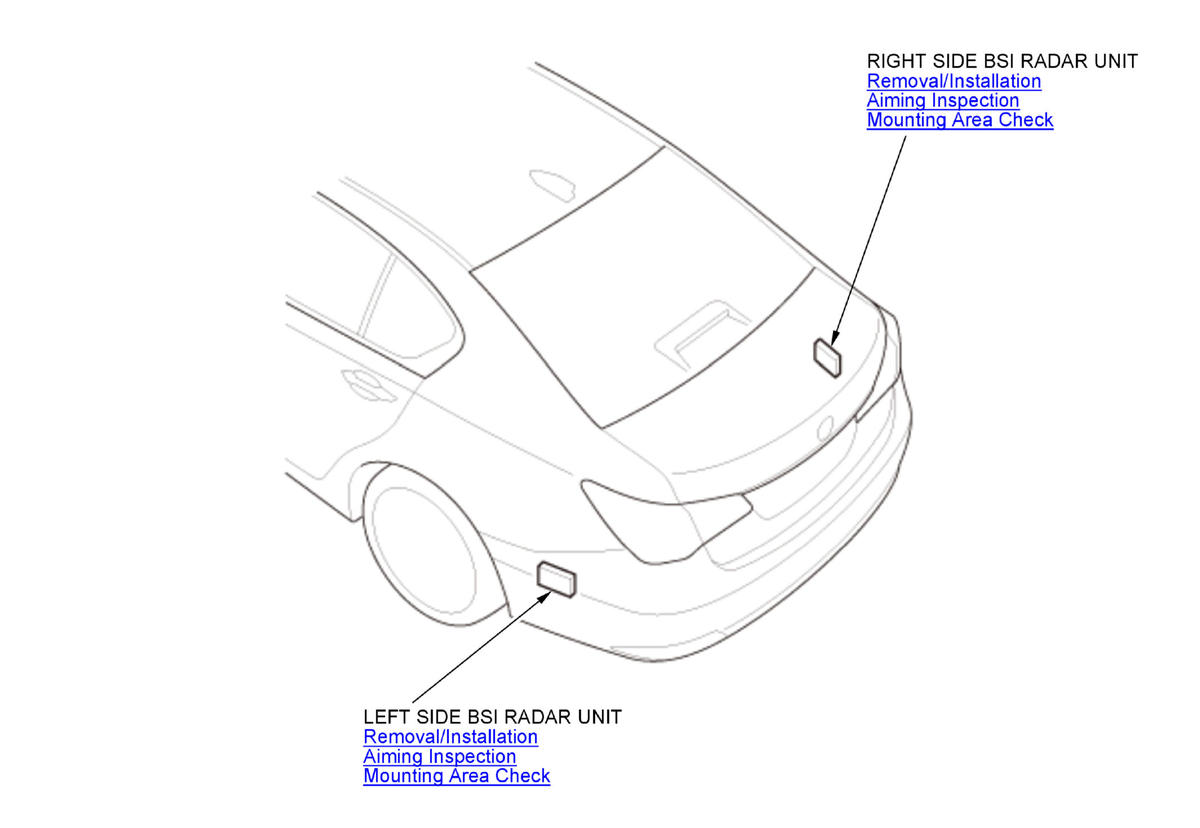

Blind Spot Information (BSI) System Component Location Index (2014 2015 2016 2017 2018 2019)
Blind Spot Information (BSI) System Component Location Index (2014 2015 2016 2017 2018 2019)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
